Lung Squamous Cell Carcinoma: Correlation between gene methylation status and clinical features
Maintained by Juok Cho (Broad Institute)
Overview
Introduction

This pipeline uses various statistical tests to identify genes whose promoter methylation levels correlated to selected clinical features.

Summary

Testing the association between 20233 genes and 11 clinical features across 144 samples, statistically thresholded by Q value < 0.05, 5 clinical features related to at least one genes.

  • 2 genes correlated to 'GENDER'.

    • KIF4B ,  MYO5A

  • 14 genes correlated to 'KARNOFSKY.PERFORMANCE.SCORE'.

    • EIF2C3 ,  YIPF2 ,  YTHDC1 ,  C19ORF52 ,  DNAJC18 ,  ...

  • 92 genes correlated to 'HISTOLOGICAL.TYPE'.

    • SETDB2 ,  PCMTD2 ,  FNBP4 ,  SS18L1 ,  CAB39L ,  ...

  • 18 genes correlated to 'PATHOLOGICSPREAD(M)'.

    • ATP10D ,  TMEM169 ,  ACTR6 ,  ALOXE3 ,  PLCL1 ,  ...

  • 39 genes correlated to 'RADIATIONS.RADIATION.REGIMENINDICATION'.

    • ZNF215 ,  NLRP14 ,  KLHL32 ,  ZNF214 ,  EREG ,  ...

  • No genes correlated to 'Time to Death', 'AGE', 'PATHOLOGY.T', 'PATHOLOGY.N', 'TUMOR.STAGE', and 'NEOADJUVANT.THERAPY'.

Results
Overview of the results

Complete statistical result table is provided in Supplement Table 1

Table 1.  Get Full Table This table shows the clinical features, statistical methods used, and the number of genes that are significantly associated with each clinical feature at Q value < 0.05.

Clinical feature Statistical test Significant genes Associated with                 Associated with
Time to Death Cox regression test   N=0
AGE Spearman correlation test   N=0
GENDER t test N=2 male N=0 female N=2
KARNOFSKY PERFORMANCE SCORE Spearman correlation test N=14 higher score N=14 lower score N=0
HISTOLOGICAL TYPE ANOVA test N=92
PATHOLOGY T Spearman correlation test   N=0
PATHOLOGY N Spearman correlation test   N=0
PATHOLOGICSPREAD(M) ANOVA test N=18
TUMOR STAGE Spearman correlation test   N=0
RADIATIONS RADIATION REGIMENINDICATION t test N=39 yes N=39 no N=0
NEOADJUVANT THERAPY t test   N=0
Clinical variable #1: 'Time to Death'

No gene related to 'Time to Death'.

Table S1.  Basic characteristics of clinical feature: 'Time to Death'

Time to Death Duration (Months) 0-173.8 (median=15.6)
  censored N = 74
  death N = 57

  Significant markers N = 0
Clinical variable #2: 'AGE'

No gene related to 'AGE'.

Table S2.  Basic characteristics of clinical feature: 'AGE'

AGE Mean (SD) 68.47 (9.2)
  Significant markers N = 0
Clinical variable #3: 'GENDER'

2 genes related to 'GENDER'.

Table S3.  Basic characteristics of clinical feature: 'GENDER'

GENDER Labels N
  FEMALE 40
  MALE 104

  Significant markers N = 2
  Higher in MALE 0
  Higher in FEMALE 2
List of 2 genes differentially expressed by 'GENDER'

Table S4.  Get Full Table List of 2 genes differentially expressed by 'GENDER'

T(pos if higher in 'MALE') ttestP Q AUC
KIF4B -6.16 6.792e-08 0.00137 0.8099
MYO5A -5.39 1.495e-06 0.0302 0.7983

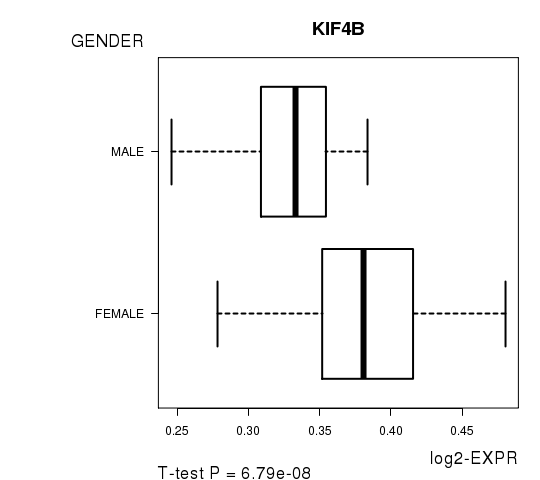

Figure S1.  Get High-res Image As an example, this figure shows the association of KIF4B to 'GENDER'. P value = 6.79e-08 with T-test analysis.

Clinical variable #4: 'KARNOFSKY.PERFORMANCE.SCORE'

14 genes related to 'KARNOFSKY.PERFORMANCE.SCORE'.

Table S5.  Basic characteristics of clinical feature: 'KARNOFSKY.PERFORMANCE.SCORE'

KARNOFSKY.PERFORMANCE.SCORE Mean (SD) 26.79 (40)
  Significant markers N = 14
  pos. correlated 14
  neg. correlated 0
List of top 10 genes significantly correlated to 'KARNOFSKY.PERFORMANCE.SCORE' by Spearman correlation test

Table S6.  Get Full Table List of top 10 genes significantly correlated to 'KARNOFSKY.PERFORMANCE.SCORE' by Spearman correlation test

SpearmanCorr corrP Q
EIF2C3 0.8278 5.48e-08 0.00111
YIPF2 0.8262 6.12e-08 0.00124
YTHDC1 0.7939 4.608e-07 0.00932
C19ORF52 0.7901 5.721e-07 0.0116
DNAJC18 0.784 7.985e-07 0.0162
MIR1281 0.7805 9.639e-07 0.0195
CDKN1B 0.776 1.219e-06 0.0247
NOMO2 0.7738 1.368e-06 0.0277
TMEM123 0.7712 1.559e-06 0.0315
RPP38 0.7687 1.773e-06 0.0358

Figure S2.  Get High-res Image As an example, this figure shows the association of EIF2C3 to 'KARNOFSKY.PERFORMANCE.SCORE'. P value = 5.48e-08 with Spearman correlation analysis. The straight line presents the best linear regression.

Clinical variable #5: 'HISTOLOGICAL.TYPE'

92 genes related to 'HISTOLOGICAL.TYPE'.

Table S7.  Basic characteristics of clinical feature: 'HISTOLOGICAL.TYPE'

HISTOLOGICAL.TYPE Labels N
  LUNG BASALOID SQUAMOUS CELL CARCINOMA 4
  LUNG PAPILLARY SQUAMOUS CELL CARCINOMA 1
  LUNG SMALL CELL SQUAMOUS CELL CARCINOMA 1
  LUNG SQUAMOUS CELL CARCINOMA- NOT OTHERWISE SPECIFIED (NOS) 138

  Significant markers N = 92
List of top 10 genes differentially expressed by 'HISTOLOGICAL.TYPE'

Table S8.  Get Full Table List of top 10 genes differentially expressed by 'HISTOLOGICAL.TYPE'

ANOVA_P Q
SETDB2 2.248e-43 4.55e-39
PCMTD2 6.758e-43 1.37e-38
FNBP4 4.035e-37 8.16e-33
SS18L1 1.138e-35 2.3e-31
CAB39L 1.858e-32 3.76e-28
TXNL4A 7.311e-26 1.48e-21
PAN2 4.888e-21 9.89e-17
RPL17 1.814e-19 3.67e-15
ZNF304 1.601e-17 3.24e-13
ZFR 2.067e-15 4.18e-11

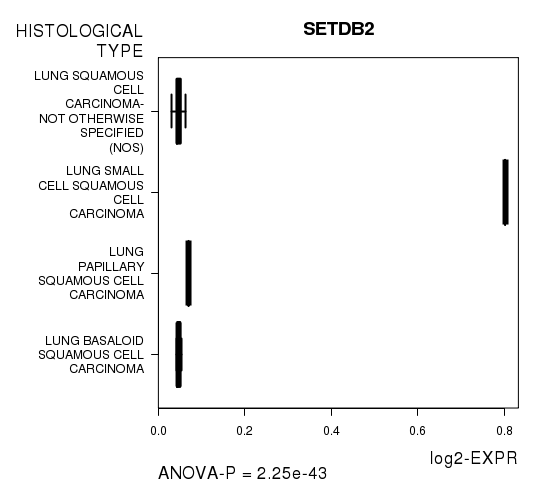

Figure S3.  Get High-res Image As an example, this figure shows the association of SETDB2 to 'HISTOLOGICAL.TYPE'. P value = 2.25e-43 with ANOVA analysis.

Clinical variable #6: 'PATHOLOGY.T'

No gene related to 'PATHOLOGY.T'.

Table S9.  Basic characteristics of clinical feature: 'PATHOLOGY.T'

PATHOLOGY.T Mean (SD) 1.91 (0.74)
  N
  T1 40
  T2 83
  T3 15
  T4 6

  Significant markers N = 0
Clinical variable #7: 'PATHOLOGY.N'

No gene related to 'PATHOLOGY.N'.

Table S10.  Basic characteristics of clinical feature: 'PATHOLOGY.N'

PATHOLOGY.N Mean (SD) 0.44 (0.65)
  N
  N0 92
  N1 40
  N2 12

  Significant markers N = 0
Clinical variable #8: 'PATHOLOGICSPREAD(M)'

18 genes related to 'PATHOLOGICSPREAD(M)'.

Table S11.  Basic characteristics of clinical feature: 'PATHOLOGICSPREAD(M)'

PATHOLOGICSPREAD(M) Labels N
  M0 119
  M1 1
  MX 22

  Significant markers N = 18
List of top 10 genes differentially expressed by 'PATHOLOGICSPREAD(M)'

Table S12.  Get Full Table List of top 10 genes differentially expressed by 'PATHOLOGICSPREAD(M)'

ANOVA_P Q
ATP10D 5.202e-16 1.05e-11
TMEM169 1.107e-15 2.24e-11
ACTR6 4.069e-15 8.23e-11
ALOXE3 5.37e-15 1.09e-10
PLCL1 6.298e-15 1.27e-10
PECR 1.63e-13 3.3e-09
C5ORF33 7.494e-13 1.52e-08
RNF8 9.523e-12 1.93e-07
SLC37A3 3.184e-11 6.44e-07
IVD 5.019e-10 1.02e-05

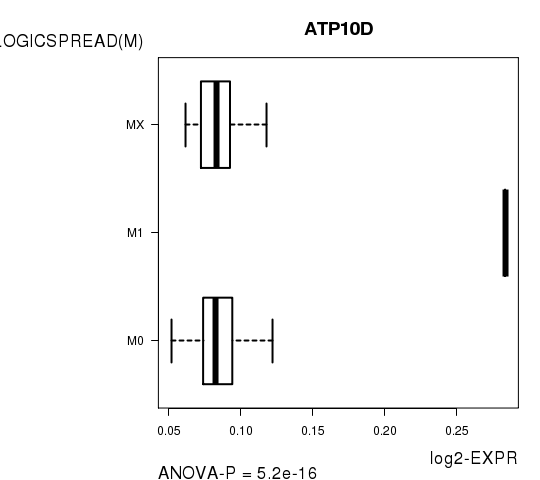

Figure S4.  Get High-res Image As an example, this figure shows the association of ATP10D to 'PATHOLOGICSPREAD(M)'. P value = 5.2e-16 with ANOVA analysis.

Clinical variable #9: 'TUMOR.STAGE'

No gene related to 'TUMOR.STAGE'.

Table S13.  Basic characteristics of clinical feature: 'TUMOR.STAGE'

TUMOR.STAGE Mean (SD) 1.66 (0.76)
  N
  Stage 1 72
  Stage 2 46
  Stage 3 22
  Stage 4 1

  Significant markers N = 0
Clinical variable #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

39 genes related to 'RADIATIONS.RADIATION.REGIMENINDICATION'.

Table S14.  Basic characteristics of clinical feature: 'RADIATIONS.RADIATION.REGIMENINDICATION'

RADIATIONS.RADIATION.REGIMENINDICATION Labels N
  NO 8
  YES 136

  Significant markers N = 39
  Higher in YES 39
  Higher in NO 0
List of top 10 genes differentially expressed by 'RADIATIONS.RADIATION.REGIMENINDICATION'

Table S15.  Get Full Table List of top 10 genes differentially expressed by 'RADIATIONS.RADIATION.REGIMENINDICATION'

T(pos if higher in 'YES') ttestP Q AUC
ZNF215 7.73 2.178e-12 4.41e-08 0.7344
NLRP14 6.83 2.74e-10 5.54e-06 0.7031
KLHL32 6.53 3.108e-09 6.29e-05 0.6121
ZNF214 6.31 4.238e-09 8.57e-05 0.682
EREG 6.29 1.469e-08 0.000297 0.7353
GSDMD 5.96 1.969e-08 0.000398 0.6296
HLA-A 6.94 2.153e-08 0.000435 0.7436
C16ORF86 6.06 2.334e-08 0.000472 0.6985
HLA-J 6.31 3.215e-08 0.00065 0.7344
LOC441666 7.81 3.461e-08 7e-04 0.7794

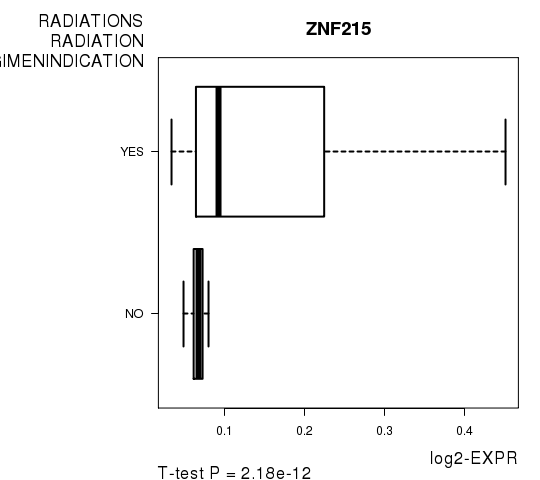

Figure S5.  Get High-res Image As an example, this figure shows the association of ZNF215 to 'RADIATIONS.RADIATION.REGIMENINDICATION'. P value = 2.18e-12 with T-test analysis.

Clinical variable #11: 'NEOADJUVANT.THERAPY'

No gene related to 'NEOADJUVANT.THERAPY'.

Table S16.  Basic characteristics of clinical feature: 'NEOADJUVANT.THERAPY'

NEOADJUVANT.THERAPY Labels N
  NO 16
  YES 128

  Significant markers N = 0
Methods & Data
Input

  • Expresson data file = LUSC.meth.for_correlation.filtered_data.txt

  • Clinical data file = LUSC.clin.merged.picked.txt

  • Number of patients = 144

  • Number of genes = 20233

  • Number of clinical features = 11

Survival analysis

For survival clinical features, Wald's test in univariate Cox regression analysis with proportional hazards model (Andersen and Gill 1982) was used to estimate the P values using the 'coxph' function in R. Kaplan-Meier survival curves were plot using the four quartile subgroups of patients based on expression levels

Correlation analysis

For continuous numerical clinical features, Spearman's rank correlation coefficients (Spearman 1904) and two-tailed P values were estimated using 'cor.test' function in R

Student's t-test analysis

For two-class clinical features, two-tailed Student's t test with unequal variance (Lehmann and Romano 2005) was applied to compare the log2-expression levels between the two clinical classes using 't.test' function in R

ANOVA analysis

For multi-class clinical features (ordinal or nominal), one-way analysis of variance (Howell 2002) was applied to compare the log2-expression levels between different clinical classes using 'anova' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

This is an experimental feature. The full results of the analysis summarized in this report can be downloaded from the TCGA Data Coordination Center.

References
[1] Andersen and Gill, Cox's regression model for counting processes, a large sample study, Annals of Statistics 10(4):1100-1120 (1982)
[2] Spearman, C, The proof and measurement of association between two things, Amer. J. Psychol 15:72-101 (1904)
[3] Lehmann and Romano, Testing Statistical Hypotheses (3E ed.), New York: Springer. ISBN 0387988645 (2005)
[4] Howell, D, Statistical Methods for Psychology. (5th ed.), Duxbury Press:324-5 (2002)
[5] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)
