Breast Invasive Carcinoma: Correlation between gene methylation status and clinical features
(primary solid tumor cohort)
Maintained by Juok Cho (Broad Institute)
Overview
Introduction

This pipeline uses various statistical tests to identify genes whose promoter methylation levels correlated to selected clinical features.

Summary

Testing the association between 17321 genes and 8 clinical features across 529 samples, statistically thresholded by Q value < 0.05, 7 clinical features related to at least one genes.

  • 1 gene correlated to 'Time to Death'.

    • CDC73

  • 131 genes correlated to 'AGE'.

    • KIF15 ,  MEX3C ,  EGR2 ,  C10ORF35 ,  LGALS8 ,  ...

  • 189 genes correlated to 'GENDER'.

    • ALDOC ,  ZNF486 ,  CRIP1 ,  DNAJC15 ,  NMNAT3 ,  ...

  • 162 genes correlated to 'RADIATIONS.RADIATION.REGIMENINDICATION'.

    • CCDC86 ,  NDUFB4 ,  TUBA4B ,  HS1BP3 ,  MAP3K10 ,  ...

  • 12 genes correlated to 'DISTANT.METASTASIS'.

    • NHEDC1 ,  RHBDL3 ,  MMAB ,  SAG ,  PACRGL ,  ...

  • 68 genes correlated to 'LYMPH.NODE.METASTASIS'.

    • SS18L1 ,  ZNF235 ,  MANBAL ,  HCRTR2 ,  TMEM33 ,  ...

  • 26 genes correlated to 'NEOPLASM.DISEASESTAGE'.

    • IDH3B ,  DRG2 ,  HIST1H4C ,  WDR74 ,  RHBDL3 ,  ...

  • No genes correlated to 'NUMBER.OF.LYMPH.NODES'

Results
Overview of the results

Complete statistical result table is provided in Supplement Table 1

Table 1.  Get Full Table This table shows the clinical features, statistical methods used, and the number of genes that are significantly associated with each clinical feature at Q value < 0.05.

Clinical feature Statistical test Significant genes Associated with                 Associated with
Time to Death Cox regression test N=1 shorter survival N=0 longer survival N=1
AGE Spearman correlation test N=131 older N=119 younger N=12
GENDER t test N=189 male N=42 female N=147
RADIATIONS RADIATION REGIMENINDICATION t test N=162 yes N=139 no N=23
DISTANT METASTASIS ANOVA test N=12
LYMPH NODE METASTASIS ANOVA test N=68
NUMBER OF LYMPH NODES Spearman correlation test   N=0
NEOPLASM DISEASESTAGE ANOVA test N=26
Clinical variable #1: 'Time to Death'

One gene related to 'Time to Death'.

Table S1.  Basic characteristics of clinical feature: 'Time to Death'

Time to Death Duration (Months) 0-223.4 (median=17.9)
  censored N = 443
  death N = 58

  Significant markers N = 1
  associated with shorter survival 0
  associated with longer survival 1
List of one gene significantly associated with 'Time to Death' by Cox regression test

Table S2.  Get Full Table List of one gene significantly associated with 'Time to Death' by Cox regression test

HazardRatio Wald_P Q C_index
CDC73 0 1.405e-06 0.024 0.355

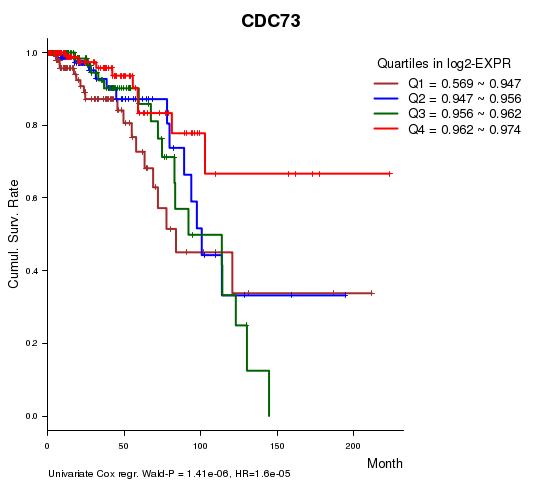

Figure S1.  Get High-res Image As an example, this figure shows the association of CDC73 to 'Time to Death'. four curves present the cumulative survival rates of 4 quartile subsets of patients. P value = 1.41e-06 with univariate Cox regression analysis using continuous log-2 expression values.

Clinical variable #2: 'AGE'

131 genes related to 'AGE'.

Table S3.  Basic characteristics of clinical feature: 'AGE'

AGE Mean (SD) 57.58 (13)
  Significant markers N = 131
  pos. correlated 119
  neg. correlated 12
List of top 10 genes significantly correlated to 'AGE' by Spearman correlation test

Table S4.  Get Full Table List of top 10 genes significantly correlated to 'AGE' by Spearman correlation test

SpearmanCorr corrP Q
KIF15 0.3171 8.453e-14 1.46e-09
MEX3C 0.2847 2.668e-11 4.62e-07
EGR2 0.284 2.983e-11 5.17e-07
C10ORF35 0.2822 3.997e-11 6.92e-07
LGALS8 -0.2817 4.347e-11 7.53e-07
RPL13A 0.2792 6.589e-11 1.14e-06
FASN 0.2735 1.631e-10 2.82e-06
RPL27A 0.2654 5.773e-10 1e-05
RPL7A 0.2643 6.913e-10 1.2e-05
CACNA2D1 0.2625 9.072e-10 1.57e-05

Figure S2.  Get High-res Image As an example, this figure shows the association of KIF15 to 'AGE'. P value = 8.45e-14 with Spearman correlation analysis. The straight line presents the best linear regression.

Clinical variable #3: 'GENDER'

189 genes related to 'GENDER'.

Table S5.  Basic characteristics of clinical feature: 'GENDER'

GENDER Labels N
  FEMALE 523
  MALE 6

  Significant markers N = 189
  Higher in MALE 42
  Higher in FEMALE 147
List of top 10 genes differentially expressed by 'GENDER'

Table S6.  Get Full Table List of top 10 genes differentially expressed by 'GENDER'

T(pos if higher in 'MALE') ttestP Q AUC
ALDOC -25.64 2.894e-93 5.01e-89 0.8674
ZNF486 -18.28 5.134e-58 8.89e-54 0.8174
CRIP1 -16.89 1.803e-51 3.12e-47 0.8725
DNAJC15 -13.78 1.012e-35 1.75e-31 0.7333
NMNAT3 -13.23 4.002e-34 6.93e-30 0.6918
LOC400043 -13.14 3.487e-31 6.04e-27 0.6025
RND2 -13.17 1.867e-28 3.23e-24 0.7916
EML1 -11.43 5.597e-27 9.69e-23 0.6083
SPC25 -12.2 2.984e-26 5.17e-22 0.7511
HSPC157 -12.96 6.478e-25 1.12e-20 0.6316

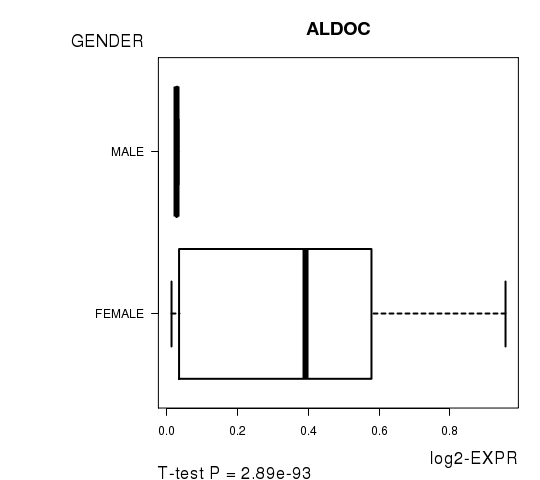

Figure S3.  Get High-res Image As an example, this figure shows the association of ALDOC to 'GENDER'. P value = 2.89e-93 with T-test analysis.

Clinical variable #4: 'RADIATIONS.RADIATION.REGIMENINDICATION'

162 genes related to 'RADIATIONS.RADIATION.REGIMENINDICATION'.

Table S7.  Basic characteristics of clinical feature: 'RADIATIONS.RADIATION.REGIMENINDICATION'

RADIATIONS.RADIATION.REGIMENINDICATION Labels N
  NO 141
  YES 388

  Significant markers N = 162
  Higher in YES 139
  Higher in NO 23
List of top 10 genes differentially expressed by 'RADIATIONS.RADIATION.REGIMENINDICATION'

Table S8.  Get Full Table List of top 10 genes differentially expressed by 'RADIATIONS.RADIATION.REGIMENINDICATION'

T(pos if higher in 'YES') ttestP Q AUC
CCDC86 6.92 2.585e-11 4.48e-07 0.6804
NDUFB4 6.58 1.989e-10 3.45e-06 0.6688
TUBA4B 6.41 3.966e-10 6.87e-06 0.6407
HS1BP3 6.3 9.065e-10 1.57e-05 0.6613
MAP3K10 6.27 1.214e-09 2.1e-05 0.6505
TFAP4 6.22 1.286e-09 2.23e-05 0.641
PTRH1 6.15 1.522e-09 2.63e-05 0.616
TICAM1 6.19 1.946e-09 3.37e-05 0.6622
DDX54 6.17 2.074e-09 3.59e-05 0.6544
RASL11A 6.08 2.549e-09 4.41e-05 0.6328

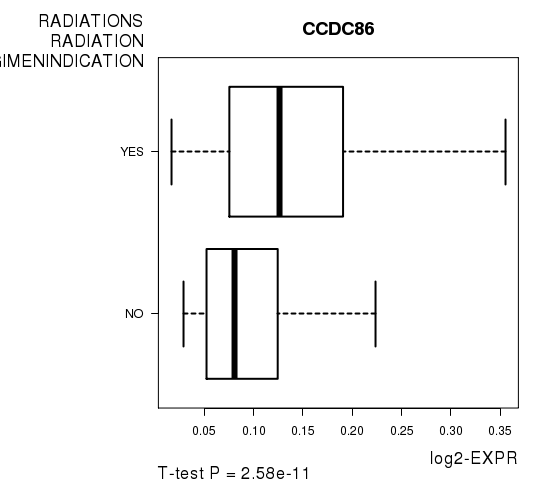

Figure S4.  Get High-res Image As an example, this figure shows the association of CCDC86 to 'RADIATIONS.RADIATION.REGIMENINDICATION'. P value = 2.58e-11 with T-test analysis.

Clinical variable #5: 'DISTANT.METASTASIS'

12 genes related to 'DISTANT.METASTASIS'.

Table S9.  Basic characteristics of clinical feature: 'DISTANT.METASTASIS'

DISTANT.METASTASIS Labels N
  CM0 (I+) 1
  M0 459
  M1 6
  MX 63

  Significant markers N = 12
List of top 10 genes differentially expressed by 'DISTANT.METASTASIS'

Table S10.  Get Full Table List of top 10 genes differentially expressed by 'DISTANT.METASTASIS'

ANOVA_P Q
NHEDC1 6.226e-25 1.08e-20
RHBDL3 2.073e-21 3.59e-17
MMAB 6.627e-20 1.15e-15
SAG 4.444e-11 7.7e-07
PACRGL 1.58e-09 2.74e-05
C9ORF153 9.672e-09 0.000167
TRIM21 1.656e-07 0.00287
ABHD10 2.799e-07 0.00485
LARS 2.919e-07 0.00505
CRKL 1.092e-06 0.0189

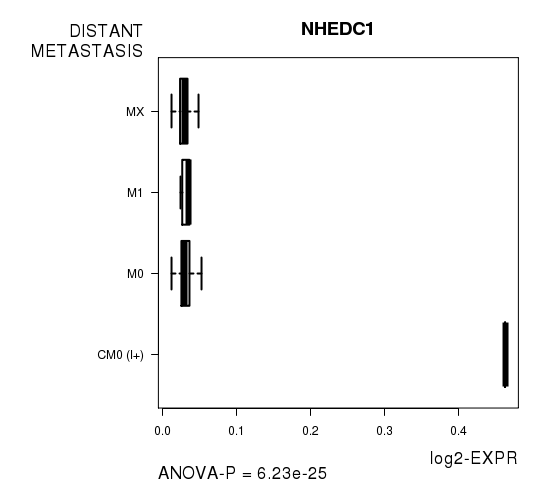

Figure S5.  Get High-res Image As an example, this figure shows the association of NHEDC1 to 'DISTANT.METASTASIS'. P value = 6.23e-25 with ANOVA analysis.

Clinical variable #6: 'LYMPH.NODE.METASTASIS'

68 genes related to 'LYMPH.NODE.METASTASIS'.

Table S11.  Basic characteristics of clinical feature: 'LYMPH.NODE.METASTASIS'

LYMPH.NODE.METASTASIS Labels N
  N0 141
  N0 (I+) 14
  N0 (I-) 74
  N0 (MOL+) 1
  N1 70
  N1A 81
  N1B 23
  N1C 2
  N1MI 13
  N2 37
  N2A 38
  N3 11
  N3A 16
  N3B 1
  NX 7

  Significant markers N = 68
List of top 10 genes differentially expressed by 'LYMPH.NODE.METASTASIS'

Table S12.  Get Full Table List of top 10 genes differentially expressed by 'LYMPH.NODE.METASTASIS'

ANOVA_P Q
SS18L1 6.738e-72 1.17e-67
ZNF235 2.768e-51 4.79e-47
MANBAL 1.293e-34 2.24e-30
HCRTR2 5.343e-25 9.25e-21
TMEM33 3.921e-20 6.79e-16
ZNF33A 5.597e-19 9.69e-15
SCRN2 5.621e-16 9.73e-12
ING5 1.378e-12 2.39e-08
KCNQ5 4.066e-11 7.04e-07
TMEM208 2.539e-10 4.4e-06

Figure S6.  Get High-res Image As an example, this figure shows the association of SS18L1 to 'LYMPH.NODE.METASTASIS'. P value = 6.74e-72 with ANOVA analysis.

Clinical variable #7: 'NUMBER.OF.LYMPH.NODES'

No gene related to 'NUMBER.OF.LYMPH.NODES'.

Table S13.  Basic characteristics of clinical feature: 'NUMBER.OF.LYMPH.NODES'

NUMBER.OF.LYMPH.NODES Mean (SD) 2.42 (4.5)
  Significant markers N = 0
Clinical variable #8: 'NEOPLASM.DISEASESTAGE'

26 genes related to 'NEOPLASM.DISEASESTAGE'.

Table S14.  Basic characteristics of clinical feature: 'NEOPLASM.DISEASESTAGE'

NEOPLASM.DISEASESTAGE Labels N
  STAGE I 43
  STAGE IA 38
  STAGE IB 2
  STAGE II 8
  STAGE IIA 176
  STAGE IIB 121
  STAGE III 2
  STAGE IIIA 88
  STAGE IIIB 14
  STAGE IIIC 25
  STAGE IV 6
  STAGE X 5

  Significant markers N = 26
List of top 10 genes differentially expressed by 'NEOPLASM.DISEASESTAGE'

Table S15.  Get Full Table List of top 10 genes differentially expressed by 'NEOPLASM.DISEASESTAGE'

ANOVA_P Q
IDH3B 2.716e-65 4.7e-61
DRG2 1.13e-29 1.96e-25
HIST1H4C 2.185e-18 3.78e-14
WDR74 3.473e-17 6.01e-13
RHBDL3 1.712e-16 2.96e-12
LNP1 3.404e-15 5.9e-11
MMAB 8.189e-15 1.42e-10
ATP5J 2.476e-14 4.29e-10
SAG 3.265e-13 5.65e-09
OPA1 7.301e-13 1.26e-08

Figure S7.  Get High-res Image As an example, this figure shows the association of IDH3B to 'NEOPLASM.DISEASESTAGE'. P value = 2.72e-65 with ANOVA analysis.

Methods & Data
Input

  • Expresson data file = BRCA-TP.meth.for_correlation.filtered_data.txt

  • Clinical data file = BRCA-TP.clin.merged.picked.txt

  • Number of patients = 529

  • Number of genes = 17321

  • Number of clinical features = 8

Survival analysis

For survival clinical features, Wald's test in univariate Cox regression analysis with proportional hazards model (Andersen and Gill 1982) was used to estimate the P values using the 'coxph' function in R. Kaplan-Meier survival curves were plot using the four quartile subgroups of patients based on expression levels

Correlation analysis

For continuous numerical clinical features, Spearman's rank correlation coefficients (Spearman 1904) and two-tailed P values were estimated using 'cor.test' function in R

Student's t-test analysis

For two-class clinical features, two-tailed Student's t test with unequal variance (Lehmann and Romano 2005) was applied to compare the log2-expression levels between the two clinical classes using 't.test' function in R

ANOVA analysis

For multi-class clinical features (ordinal or nominal), one-way analysis of variance (Howell 2002) was applied to compare the log2-expression levels between different clinical classes using 'anova' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

This is an experimental feature. The full results of the analysis summarized in this report can be downloaded from the TCGA Data Coordination Center.

References
[1] Andersen and Gill, Cox's regression model for counting processes, a large sample study, Annals of Statistics 10(4):1100-1120 (1982)
[2] Spearman, C, The proof and measurement of association between two things, Amer. J. Psychol 15:72-101 (1904)
[3] Lehmann and Romano, Testing Statistical Hypotheses (3E ed.), New York: Springer. ISBN 0387988645 (2005)
[4] Howell, D, Statistical Methods for Psychology. (5th ed.), Duxbury Press:324-5 (2002)
[5] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)
