Colon Adenocarcinoma: Correlation between molecular cancer subtypes and selected clinical features<BR>(primary solid tumor cohort)

Colon Adenocarcinoma: Correlation between molecular cancer subtypes and selected clinical features
(primary solid tumor cohort)

Maintained by TCGA GDAC Team (Broad Institute/MD Anderson Cancer Center/Harvard Medical School)

Overview

Introduction

This pipeline computes the correlation between cancer subtypes identified by different molecular patterns and selected clinical features.

Summary

Testing the association between subtypes identified by 10 different clustering approaches and 11 clinical features across 422 patients, 12 significant findings detected with P value < 0.05 and Q value < 0.25.

CNMF clustering analysis on array-based mRNA expression data identified 4 subtypes that correlate to 'HISTOLOGICAL.TYPE'.
Consensus hierarchical clustering analysis on array-based mRNA expression data identified 3 subtypes that correlate to 'HISTOLOGICAL.TYPE'.
4 subtypes identified in current cancer cohort by 'Copy Number Ratio CNMF subtypes'. These subtypes correlate to 'HISTOLOGICAL.TYPE', 'PATHOLOGY.N', and 'TUMOR.STAGE'.
3 subtypes identified in current cancer cohort by 'METHLYATION CNMF'. These subtypes correlate to 'AGE'.
CNMF clustering analysis on RPPA data identified 4 subtypes that do not correlate to any clinical features.
Consensus hierarchical clustering analysis on RPPA data identified 4 subtypes that do not correlate to any clinical features.
CNMF clustering analysis on sequencing-based mRNA expression data identified 4 subtypes that correlate to 'HISTOLOGICAL.TYPE'.
Consensus hierarchical clustering analysis on sequencing-based mRNA expression data identified 3 subtypes that do not correlate to any clinical features.
3 subtypes identified in current cancer cohort by 'MIRSEQ CNMF'. These subtypes correlate to 'AGE', 'PATHOLOGICSPREAD(M)', and 'COMPLETENESS.OF.RESECTION'.
3 subtypes identified in current cancer cohort by 'MIRSEQ CHIERARCHICAL'. These subtypes correlate to 'PATHOLOGICSPREAD(M)' and 'COMPLETENESS.OF.RESECTION'.

Results

Overview of the results

Table 1. Get Full Table Overview of the association between subtypes identified by 10 different clustering approaches and 11 clinical features. Shown in the table are P values (Q values). Thresholded by P value < 0.05 and Q value < 0.25, 12 significant findings detected.


Clinical Features	Statistical Tests	mRNA CNMF subtypes	mRNA cHierClus subtypes	Copy Number Ratio CNMF subtypes	METHLYATION CNMF	RPPA CNMF subtypes	RPPA cHierClus subtypes	RNAseq CNMF subtypes	RNAseq cHierClus subtypes	MIRSEQ CNMF	MIRSEQ CHIERARCHICAL
Time to Death	logrank test	0.322 (1.00)	0.601 (1.00)	0.755 (1.00)	0.928 (1.00)	0.869 (1.00)	0.379 (1.00)	0.674 (1.00)	0.431 (1.00)	0.246 (1.00)	0.521 (1.00)
AGE	ANOVA	0.56 (1.00)	0.0428 (1.00)	0.472 (1.00)	0.00205 (0.199)	0.649 (1.00)	0.259 (1.00)	0.77 (1.00)	0.123 (1.00)	0.000748 (0.0748)	0.00978 (0.929)
GENDER	Fisher's exact test	0.0434 (1.00)	0.279 (1.00)	0.487 (1.00)	0.0531 (1.00)	0.695 (1.00)	0.429 (1.00)	0.954 (1.00)	0.884 (1.00)	0.525 (1.00)	0.514 (1.00)
HISTOLOGICAL TYPE	Fisher's exact test	2.82e-06 (0.000296)	7.4e-09 (7.99e-07)	3.7e-08 (3.96e-06)	0.0769 (1.00)	0.012 (1.00)	0.497 (1.00)	0.00116 (0.113)	0.0122 (1.00)	0.0162 (1.00)	0.67 (1.00)
PATHOLOGY T	Chi-square test	0.873 (1.00)	0.452 (1.00)	0.944 (1.00)	0.375 (1.00)	0.334 (1.00)	0.122 (1.00)	0.64 (1.00)	0.324 (1.00)	0.264 (1.00)	0.498 (1.00)
PATHOLOGY N	Chi-square test	0.0374 (1.00)	0.83 (1.00)	0.00113 (0.112)	0.904 (1.00)	0.317 (1.00)	0.0596 (1.00)	0.00776 (0.745)	0.06 (1.00)	0.515 (1.00)	0.95 (1.00)
PATHOLOGICSPREAD(M)	Chi-square test	0.0788 (1.00)	0.781 (1.00)	0.00999 (0.939)	0.304 (1.00)	0.491 (1.00)	0.0489 (1.00)	0.0818 (1.00)	0.674 (1.00)	1.25e-05 (0.00129)	7.64e-06 (0.000795)

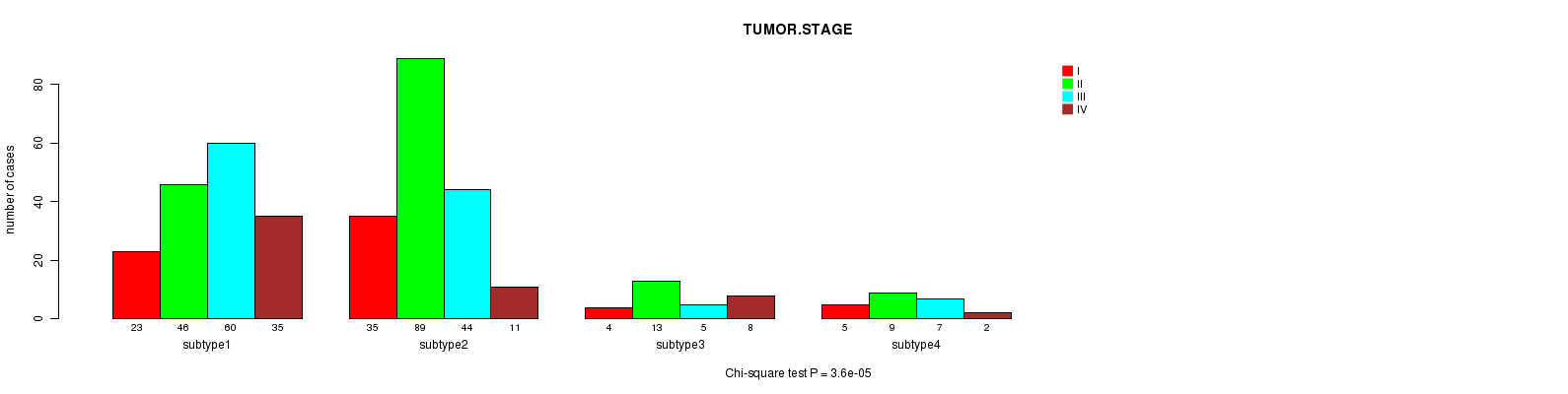

TUMOR STAGE	Chi-square test	0.0632 (1.00)	0.473 (1.00)	3.6e-05 (0.00364)	0.036 (1.00)	0.691 (1.00)	0.0129 (1.00)	0.146 (1.00)	0.291 (1.00)	0.596 (1.00)	0.448 (1.00)

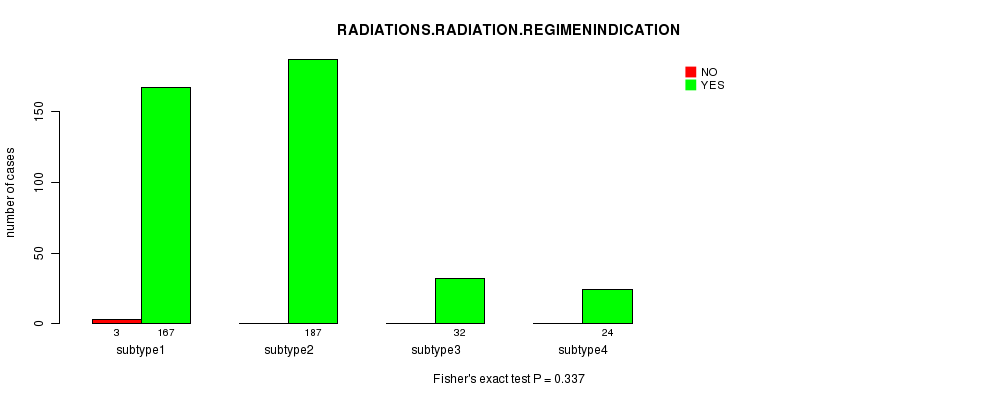

RADIATIONS RADIATION REGIMENINDICATION	Fisher's exact test			0.337 (1.00)	0.473 (1.00)	0.203 (1.00)	0.174 (1.00)	0.242 (1.00)	1 (1.00)	0.544 (1.00)	1 (1.00)
COMPLETENESS OF RESECTION	Chi-square test	0.242 (1.00)	0.655 (1.00)	0.0108 (1.00)	0.321 (1.00)	0.406 (1.00)	0.462 (1.00)	0.0715 (1.00)	0.413 (1.00)	2.91e-05 (0.00297)	5.14e-07 (5.45e-05)

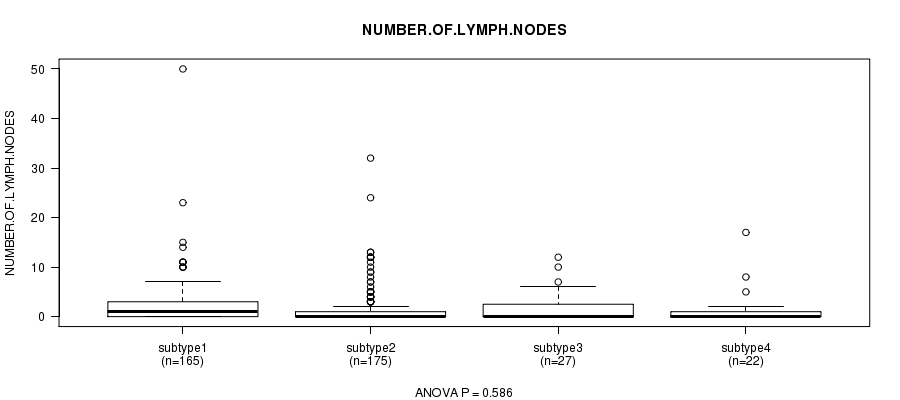

NUMBER OF LYMPH NODES	ANOVA	0.21 (1.00)	0.572 (1.00)	0.586 (1.00)	0.718 (1.00)	0.0942 (1.00)	0.0338 (1.00)	0.0199 (1.00)	0.269 (1.00)	0.73 (1.00)	0.847 (1.00)

Clustering Approach #1: 'mRNA CNMF subtypes'

Table S1. Get Full Table Description of clustering approach #1: 'mRNA CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	34	62	31	26

'mRNA CNMF subtypes' versus 'Time to Death'

P value = 0.322 (logrank test), Q value = 1

Table S2. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	74	11	0.9 - 52.0 (4.5)
subtype1	21	1	1.0 - 30.0 (1.0)
subtype2	27	6	1.0 - 41.0 (14.4)
subtype3	18	3	1.0 - 52.0 (2.5)
subtype4	8	1	0.9 - 1.0 (1.0)

Figure S1. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

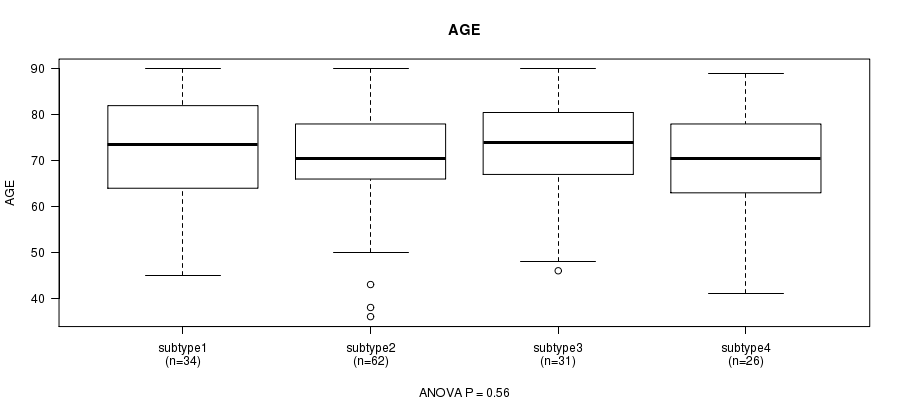

'mRNA CNMF subtypes' versus 'AGE'

P value = 0.56 (ANOVA), Q value = 1

Table S3. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	153	70.8 (11.5)
subtype1	34	72.3 (11.8)
subtype2	62	69.8 (11.5)
subtype3	31	72.3 (11.0)
subtype4	26	69.3 (12.1)

Figure S2. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #2: 'AGE'

'mRNA CNMF subtypes' versus 'GENDER'

P value = 0.0434 (Fisher's exact test), Q value = 1

Table S4. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	75	78
subtype1	23	11
subtype2	31	31
subtype3	11	20
subtype4	10	16

Figure S3. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #3: 'GENDER'

'mRNA CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 2.82e-06 (Fisher's exact test), Q value = 3e-04

Table S5. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	126	24
subtype1	21	12
subtype2	61	1
subtype3	21	9
subtype4	23	2

Figure S4. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'mRNA CNMF subtypes' versus 'PATHOLOGY.T'

P value = 0.873 (Chi-square test), Q value = 1

Table S6. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	4	31	103	13
subtype1	1	6	23	2
subtype2	2	13	42	5
subtype3	0	7	19	5
subtype4	1	5	19	1

Figure S5. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

'mRNA CNMF subtypes' versus 'PATHOLOGY.N'

P value = 0.0374 (Chi-square test), Q value = 1

Table S7. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	94	28	31
subtype1	23	4	7
subtype2	29	15	18
subtype3	24	6	1
subtype4	18	3	5

Figure S6. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

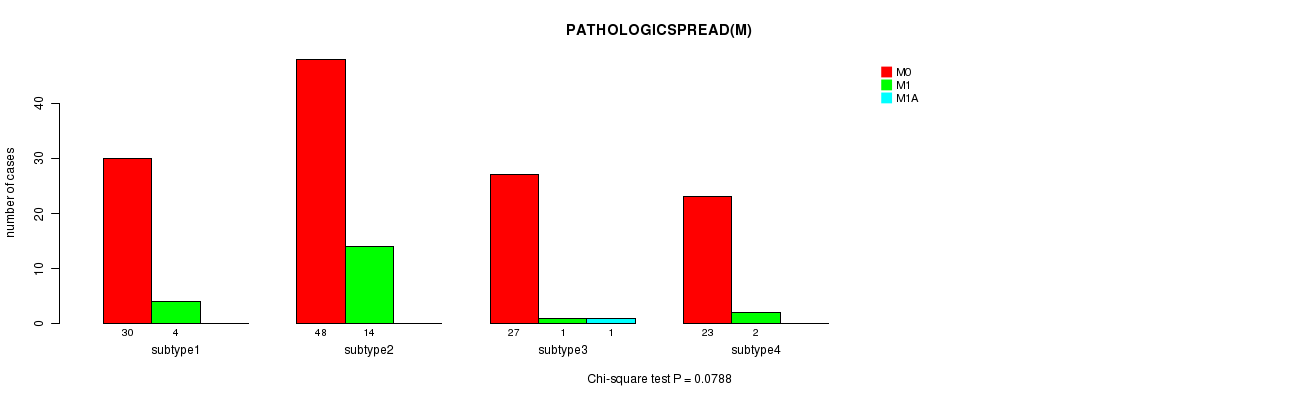

'mRNA CNMF subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.0788 (Chi-square test), Q value = 1

Table S8. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A
ALL	128	21	1
subtype1	30	4	0
subtype2	48	14	0
subtype3	27	1	1
subtype4	23	2	0

Figure S7. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'mRNA CNMF subtypes' versus 'TUMOR.STAGE'

P value = 0.0632 (Chi-square test), Q value = 1

Table S9. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	28	62	39	21
subtype1	6	17	7	3
subtype2	12	15	21	14
subtype3	5	17	5	2
subtype4	5	13	6	2

Figure S8. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

'mRNA CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.21 (ANOVA), Q value = 1

Table S10. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #10: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	152	2.1 (4.5)
subtype1	34	2.7 (6.0)
subtype2	62	2.7 (4.7)
subtype3	30	0.8 (2.3)
subtype4	26	1.7 (3.1)

Figure S9. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #10: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #2: 'mRNA cHierClus subtypes'

Table S11. Get Full Table Description of clustering approach #2: 'mRNA cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	57	47	49

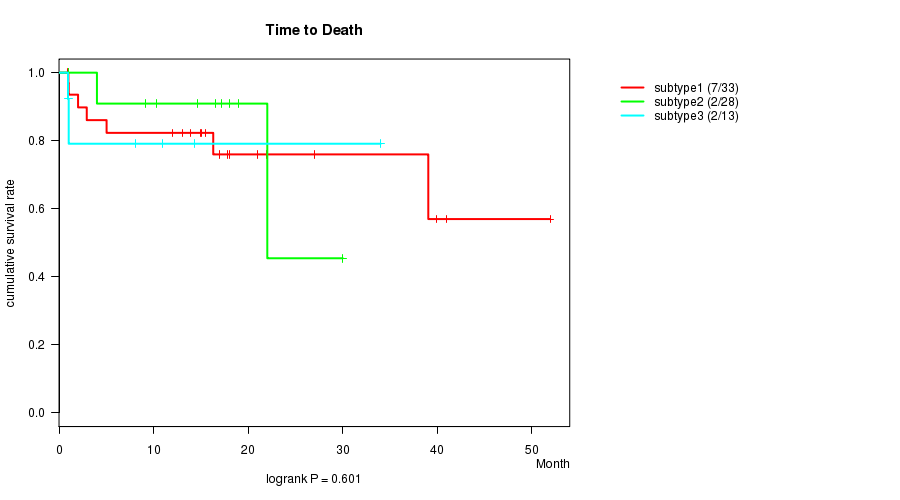

'mRNA cHierClus subtypes' versus 'Time to Death'

P value = 0.601 (logrank test), Q value = 1

Table S12. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	74	11	0.9 - 52.0 (4.5)
subtype1	33	7	0.9 - 52.0 (15.0)
subtype2	28	2	1.0 - 30.0 (1.0)
subtype3	13	2	0.9 - 34.0 (1.0)

Figure S10. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

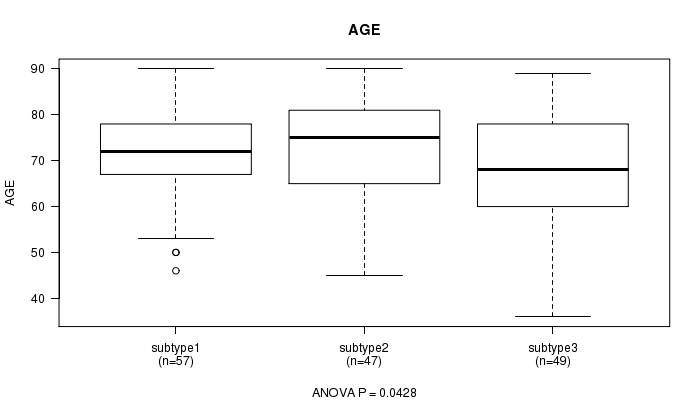

'mRNA cHierClus subtypes' versus 'AGE'

P value = 0.0428 (ANOVA), Q value = 1

Table S13. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	153	70.8 (11.5)
subtype1	57	71.7 (9.3)
subtype2	47	73.1 (11.5)
subtype3	49	67.5 (13.2)

Figure S11. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'mRNA cHierClus subtypes' versus 'GENDER'

P value = 0.279 (Fisher's exact test), Q value = 1

Table S14. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	75	78
subtype1	28	29
subtype2	27	20
subtype3	20	29

Figure S12. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

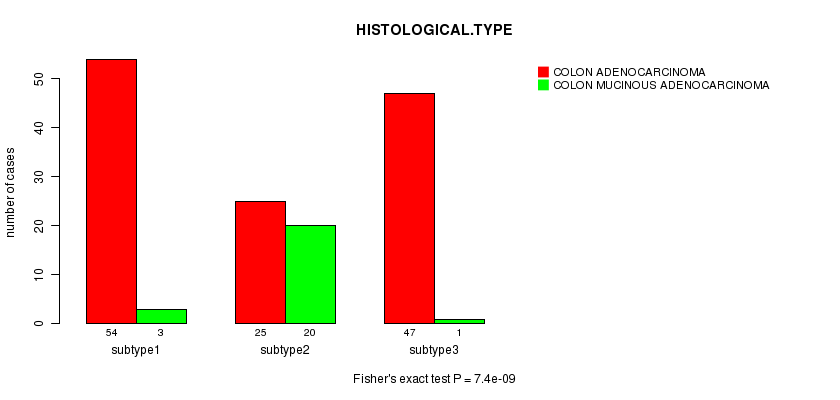

'mRNA cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 7.4e-09 (Fisher's exact test), Q value = 8e-07

Table S15. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	126	24
subtype1	54	3
subtype2	25	20
subtype3	47	1

Figure S13. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

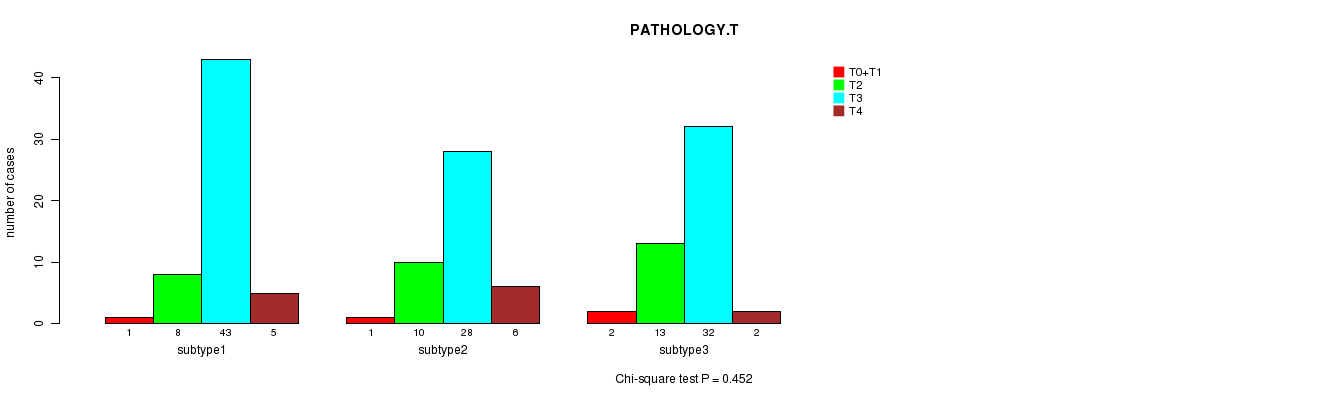

'mRNA cHierClus subtypes' versus 'PATHOLOGY.T'

P value = 0.452 (Chi-square test), Q value = 1

Table S16. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	4	31	103	13
subtype1	1	8	43	5
subtype2	1	10	28	6
subtype3	2	13	32	2

Figure S14. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

'mRNA cHierClus subtypes' versus 'PATHOLOGY.N'

P value = 0.83 (Chi-square test), Q value = 1

Table S17. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	94	28	31
subtype1	33	13	11
subtype2	31	7	9
subtype3	30	8	11

Figure S15. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

'mRNA cHierClus subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.781 (Chi-square test), Q value = 1

Table S18. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A
ALL	128	21	1
subtype1	47	8	1
subtype2	40	6	0
subtype3	41	7	0

Figure S16. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

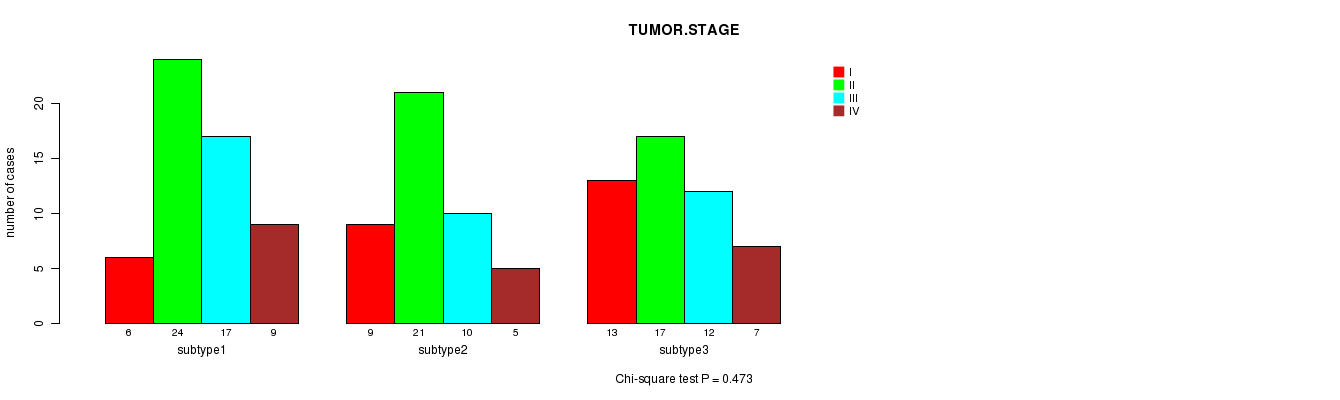

'mRNA cHierClus subtypes' versus 'TUMOR.STAGE'

P value = 0.473 (Chi-square test), Q value = 1

Table S19. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	28	62	39	21
subtype1	6	24	17	9
subtype2	9	21	10	5
subtype3	13	17	12	7

Figure S17. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

'mRNA cHierClus subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.572 (ANOVA), Q value = 1

Table S20. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #10: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	152	2.1 (4.5)
subtype1	56	2.2 (4.9)
subtype2	47	2.6 (5.5)
subtype3	49	1.6 (2.5)

Figure S18. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #10: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #3: 'Copy Number Ratio CNMF subtypes'

Table S21. Get Full Table Description of clustering approach #3: 'Copy Number Ratio CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	170	187	32	24

'Copy Number Ratio CNMF subtypes' versus 'Time to Death'

P value = 0.755 (logrank test), Q value = 1

Table S22. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	319	49	0.1 - 135.5 (7.7)
subtype1	127	23	0.1 - 129.1 (10.0)
subtype2	149	19	0.1 - 129.1 (6.1)
subtype3	23	4	0.3 - 135.5 (7.0)
subtype4	20	3	0.2 - 112.7 (6.0)

Figure S19. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

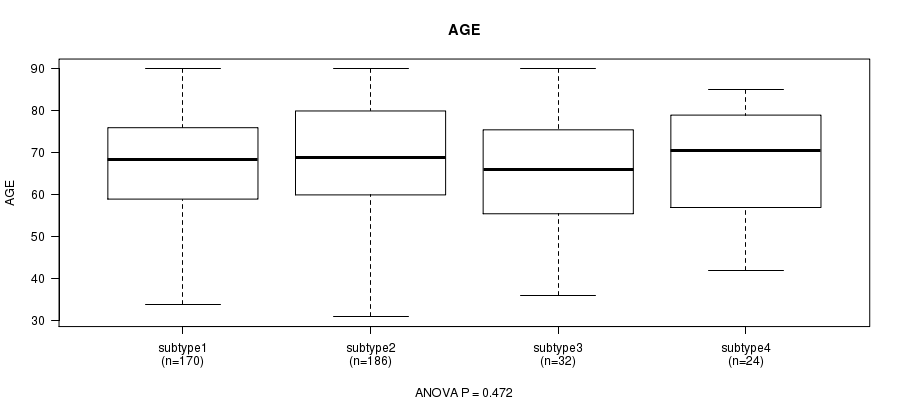

'Copy Number Ratio CNMF subtypes' versus 'AGE'

P value = 0.472 (ANOVA), Q value = 1

Table S23. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	412	67.3 (13.0)
subtype1	170	66.4 (12.4)
subtype2	186	68.3 (13.7)
subtype3	32	66.0 (13.0)
subtype4	24	68.2 (12.0)

Figure S20. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

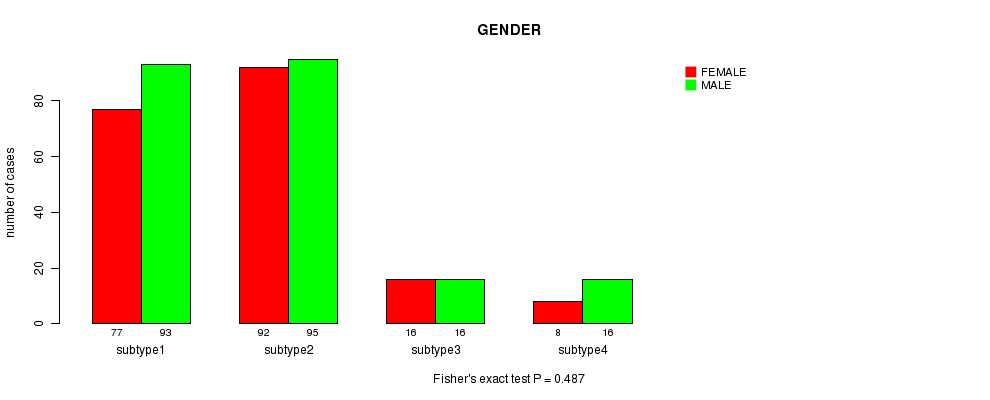

'Copy Number Ratio CNMF subtypes' versus 'GENDER'

P value = 0.487 (Fisher's exact test), Q value = 1

Table S24. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	193	220
subtype1	77	93
subtype2	92	95
subtype3	16	16
subtype4	8	16

Figure S21. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'GENDER'

'Copy Number Ratio CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 3.7e-08 (Fisher's exact test), Q value = 4e-06

Table S25. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	356	54
subtype1	162	7
subtype2	140	45
subtype3	31	1
subtype4	23	1

Figure S22. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.T'

P value = 0.944 (Chi-square test), Q value = 1

Table S26. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	11	72	283	45
subtype1	5	27	120	18
subtype2	6	33	124	22
subtype3	0	6	23	3
subtype4	0	6	16	2

Figure S23. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.N'

P value = 0.00113 (Chi-square test), Q value = 0.11

Table S27. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	245	95	71
subtype1	78	54	36
subtype2	131	29	27
subtype3	20	7	5
subtype4	16	5	3

Figure S24. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.00999 (Chi-square test), Q value = 0.94

Table S28. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	312	49	7	1	36
subtype1	119	32	3	0	14
subtype2	153	10	1	1	18
subtype3	21	6	2	0	2
subtype4	19	1	1	0	2

Figure S25. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'Copy Number Ratio CNMF subtypes' versus 'TUMOR.STAGE'

P value = 3.6e-05 (Chi-square test), Q value = 0.0036

Table S29. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	67	157	116	56
subtype1	23	46	60	35
subtype2	35	89	44	11
subtype3	4	13	5	8
subtype4	5	9	7	2

Figure S26. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.337 (Fisher's exact test), Q value = 1

Table S30. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	410
subtype1	3	167
subtype2	0	187
subtype3	0	32
subtype4	0	24

Figure S27. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

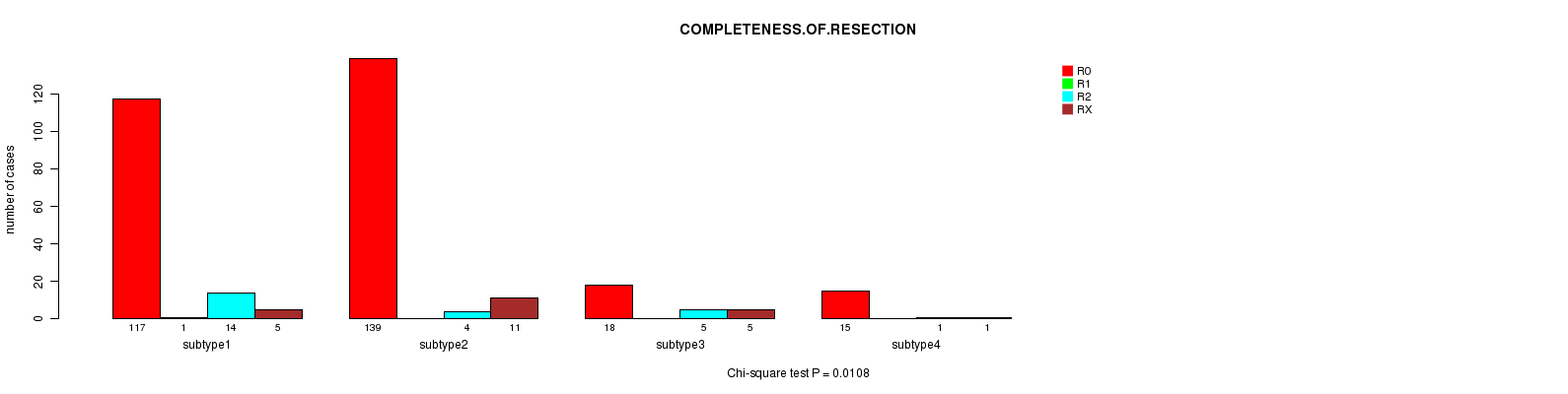

'Copy Number Ratio CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.0108 (Chi-square test), Q value = 1

Table S31. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	289	1	24	22
subtype1	117	1	14	5
subtype2	139	0	4	11
subtype3	18	0	5	5
subtype4	15	0	1	1

Figure S28. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'Copy Number Ratio CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.586 (ANOVA), Q value = 1

Table S32. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	389	2.0 (4.5)
subtype1	165	2.4 (5.0)
subtype2	175	1.7 (4.2)
subtype3	27	2.1 (3.3)
subtype4	22	1.6 (4.0)

Figure S29. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #4: 'METHLYATION CNMF'

Table S33. Get Full Table Description of clustering approach #4: 'METHLYATION CNMF'

Cluster Labels	1	2	3
Number of samples	106	86	63

'METHLYATION CNMF' versus 'Time to Death'

P value = 0.928 (logrank test), Q value = 1

Table S34. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	237	36	0.1 - 135.5 (7.6)
subtype1	95	15	0.1 - 135.5 (8.0)
subtype2	81	13	0.1 - 129.1 (8.0)
subtype3	61	8	0.1 - 102.4 (5.8)

Figure S30. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

'METHLYATION CNMF' versus 'AGE'

P value = 0.00205 (ANOVA), Q value = 0.2

Table S35. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	254	65.4 (13.3)
subtype1	106	66.3 (13.1)
subtype2	86	68.0 (13.1)
subtype3	62	60.5 (12.6)

Figure S31. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

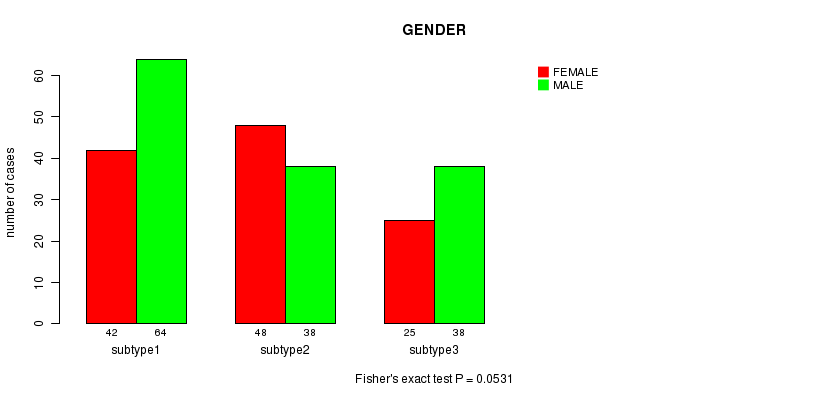

'METHLYATION CNMF' versus 'GENDER'

P value = 0.0531 (Fisher's exact test), Q value = 1

Table S36. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	115	140
subtype1	42	64
subtype2	48	38
subtype3	25	38

Figure S32. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #3: 'GENDER'

'METHLYATION CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 0.0769 (Fisher's exact test), Q value = 1

Table S37. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	225	30
subtype1	99	7
subtype2	73	13
subtype3	53	10

Figure S33. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

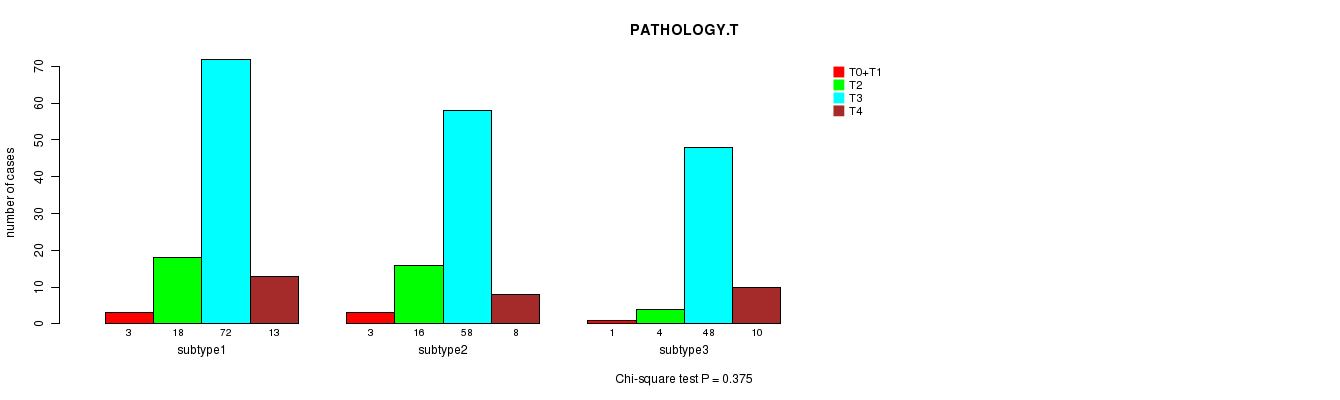

'METHLYATION CNMF' versus 'PATHOLOGY.T'

P value = 0.375 (Chi-square test), Q value = 1

Table S38. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	7	38	178	31
subtype1	3	18	72	13
subtype2	3	16	58	8
subtype3	1	4	48	10

Figure S34. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.T'

'METHLYATION CNMF' versus 'PATHOLOGY.N'

P value = 0.904 (Chi-square test), Q value = 1

Table S39. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	152	64	37
subtype1	59	29	16
subtype2	53	20	13
subtype3	40	15	8

Figure S35. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.N'

'METHLYATION CNMF' versus 'PATHOLOGICSPREAD(M)'

P value = 0.304 (Chi-square test), Q value = 1

Table S40. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	180	27	6	1	36
subtype1	69	16	4	0	16
subtype2	61	6	1	1	14
subtype3	50	5	1	0	6

Figure S36. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

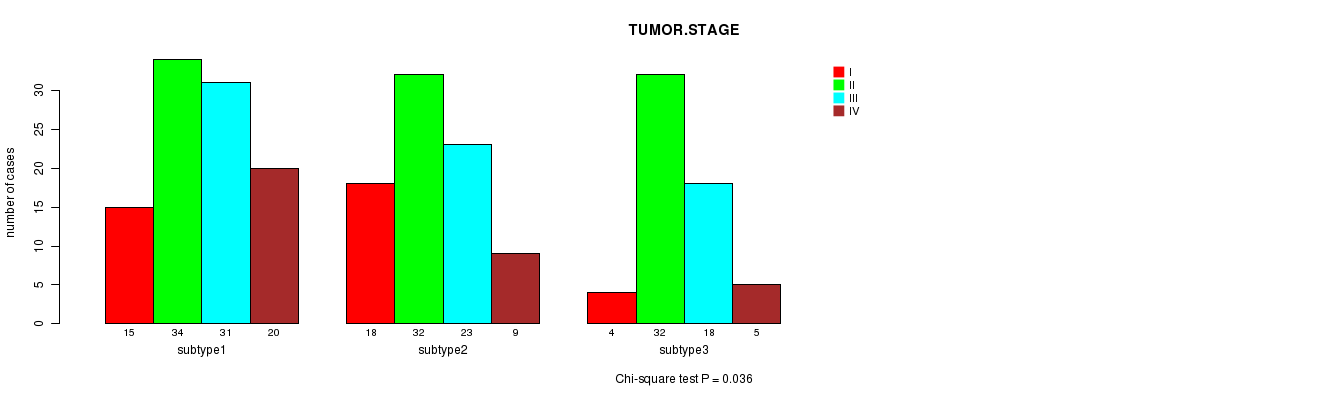

'METHLYATION CNMF' versus 'TUMOR.STAGE'

P value = 0.036 (Chi-square test), Q value = 1

Table S41. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	37	98	72	34
subtype1	15	34	31	20
subtype2	18	32	23	9
subtype3	4	32	18	5

Figure S37. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #8: 'TUMOR.STAGE'

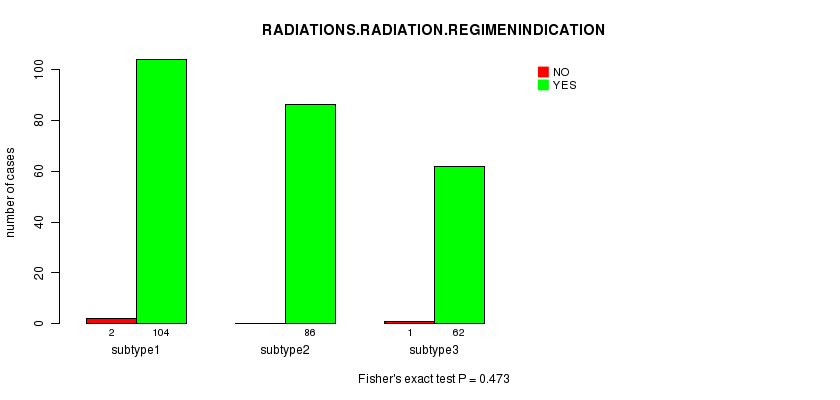

'METHLYATION CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.473 (Fisher's exact test), Q value = 1

Table S42. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	252
subtype1	2	104
subtype2	0	86
subtype3	1	62

Figure S38. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

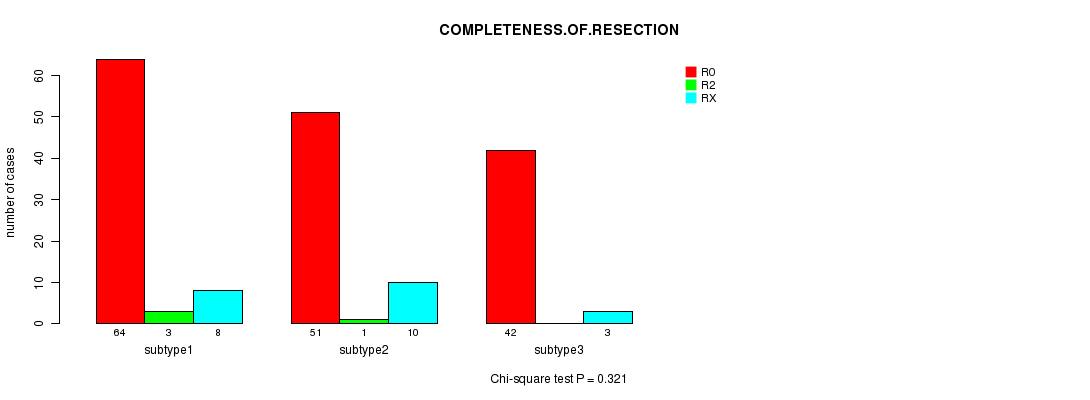

'METHLYATION CNMF' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.321 (Chi-square test), Q value = 1

Table S43. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	157	4	21
subtype1	64	3	8
subtype2	51	1	10
subtype3	42	0	3

Figure S39. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'METHLYATION CNMF' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.718 (ANOVA), Q value = 1

Table S44. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	232	1.9 (4.5)
subtype1	97	2.2 (5.9)
subtype2	78	1.7 (3.0)
subtype3	57	1.8 (3.4)

Figure S40. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #5: 'RPPA CNMF subtypes'

Table S45. Get Full Table Description of clustering approach #5: 'RPPA CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	67	112	10	80

'RPPA CNMF subtypes' versus 'Time to Death'

P value = 0.869 (logrank test), Q value = 1

Table S46. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	206	19	0.1 - 105.3 (6.0)
subtype1	59	4	0.1 - 100.0 (5.1)
subtype2	76	7	0.1 - 75.2 (5.7)
subtype3	4	0	0.6 - 18.1 (6.0)
subtype4	67	8	0.1 - 105.3 (8.0)

Figure S41. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'RPPA CNMF subtypes' versus 'AGE'

P value = 0.649 (ANOVA), Q value = 1

Table S47. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	268	66.6 (13.3)
subtype1	67	66.8 (12.0)
subtype2	111	66.9 (13.1)
subtype3	10	70.9 (9.3)
subtype4	80	65.5 (15.1)

Figure S42. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #2: 'AGE'

'RPPA CNMF subtypes' versus 'GENDER'

P value = 0.695 (Fisher's exact test), Q value = 1

Table S48. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	127	142
subtype1	34	33
subtype2	53	59
subtype3	3	7
subtype4	37	43

Figure S43. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #3: 'GENDER'

'RPPA CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.012 (Fisher's exact test), Q value = 1

Table S49. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	238	30
subtype1	52	15
subtype2	105	7
subtype3	9	1
subtype4	72	7

Figure S44. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

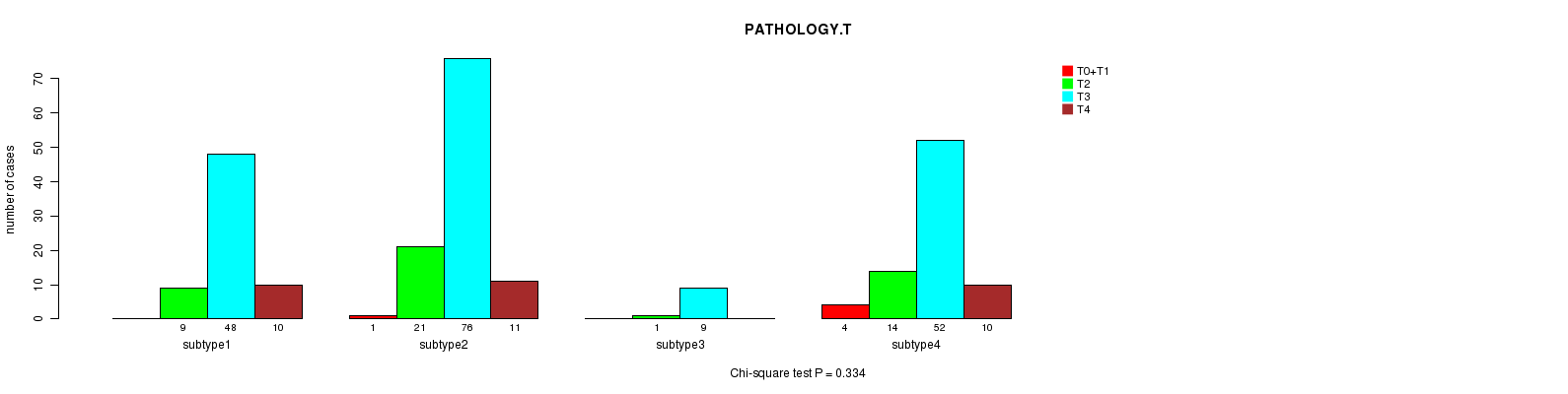

'RPPA CNMF subtypes' versus 'PATHOLOGY.T'

P value = 0.334 (Chi-square test), Q value = 1

Table S50. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	5	45	185	31
subtype1	0	9	48	10
subtype2	1	21	76	11
subtype3	0	1	9	0
subtype4	4	14	52	10

Figure S45. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

'RPPA CNMF subtypes' versus 'PATHOLOGY.N'

P value = 0.317 (Chi-square test), Q value = 1

Table S51. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	160	66	42
subtype1	34	20	12
subtype2	65	25	22
subtype3	7	2	1
subtype4	54	19	7

Figure S46. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

'RPPA CNMF subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.491 (Chi-square test), Q value = 1

Table S52. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	202	31	6	1	26
subtype1	51	8	3	0	4
subtype2	82	17	0	1	11
subtype3	8	1	0	0	1
subtype4	61	5	3	0	10

Figure S47. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'RPPA CNMF subtypes' versus 'TUMOR.STAGE'

P value = 0.691 (Chi-square test), Q value = 1

Table S53. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	40	107	77	38
subtype1	7	25	22	11
subtype2	18	39	32	18
subtype3	1	6	2	1
subtype4	14	37	21	8

Figure S48. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

'RPPA CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.203 (Fisher's exact test), Q value = 1

Table S54. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	266
subtype1	2	65
subtype2	0	112
subtype3	0	10
subtype4	1	79

Figure S49. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RPPA CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.406 (Chi-square test), Q value = 1

Table S55. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	204	11	15
subtype1	52	1	4
subtype2	78	8	6
subtype3	10	0	0
subtype4	64	2	5

Figure S50. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'RPPA CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.0942 (ANOVA), Q value = 1

Table S56. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	249	2.1 (4.8)
subtype1	62	3.2 (7.5)
subtype2	103	2.1 (3.9)
subtype3	10	1.2 (3.1)
subtype4	74	1.2 (2.7)

Figure S51. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #6: 'RPPA cHierClus subtypes'

Table S57. Get Full Table Description of clustering approach #6: 'RPPA cHierClus subtypes'

Cluster Labels	1	2	3	4
Number of samples	52	27	141	49

'RPPA cHierClus subtypes' versus 'Time to Death'

P value = 0.379 (logrank test), Q value = 1

Table S58. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	206	19	0.1 - 105.3 (6.0)
subtype1	47	6	0.1 - 100.0 (5.0)
subtype2	17	2	0.1 - 105.3 (9.4)
subtype3	98	10	0.1 - 103.0 (6.5)
subtype4	44	1	0.1 - 87.8 (5.7)

Figure S52. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'RPPA cHierClus subtypes' versus 'AGE'

P value = 0.259 (ANOVA), Q value = 1

Table S59. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	268	66.6 (13.3)
subtype1	52	64.8 (13.5)
subtype2	27	68.9 (12.0)
subtype3	140	67.6 (13.7)
subtype4	49	64.2 (12.6)

Figure S53. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

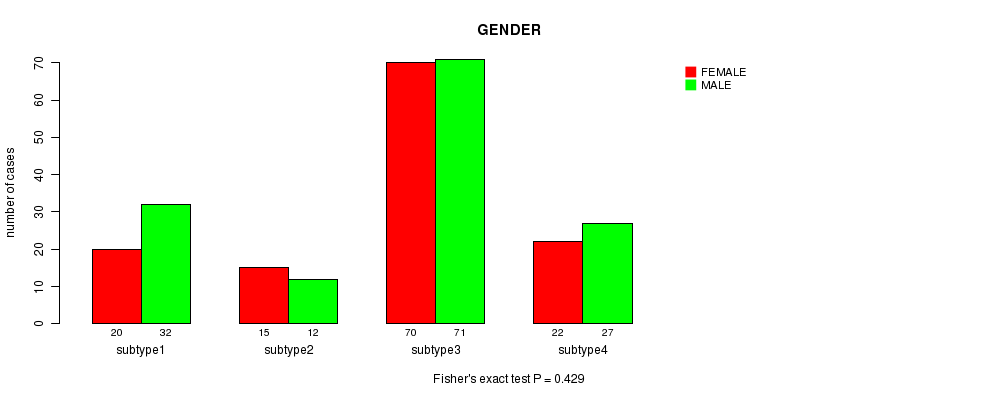

'RPPA cHierClus subtypes' versus 'GENDER'

P value = 0.429 (Fisher's exact test), Q value = 1

Table S60. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	127	142
subtype1	20	32
subtype2	15	12
subtype3	70	71
subtype4	22	27

Figure S54. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

'RPPA cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.497 (Fisher's exact test), Q value = 1

Table S61. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	238	30
subtype1	44	8
subtype2	25	2
subtype3	127	13
subtype4	42	7

Figure S55. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'RPPA cHierClus subtypes' versus 'PATHOLOGY.T'

P value = 0.122 (Chi-square test), Q value = 1

Table S62. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	5	45	185	31
subtype1	3	14	31	4
subtype2	0	3	22	2
subtype3	1	23	97	17
subtype4	1	5	35	8

Figure S56. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

'RPPA cHierClus subtypes' versus 'PATHOLOGY.N'

P value = 0.0596 (Chi-square test), Q value = 1

Table S63. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	160	66	42
subtype1	39	8	5
subtype2	20	6	1
subtype3	77	38	26
subtype4	24	14	10

Figure S57. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

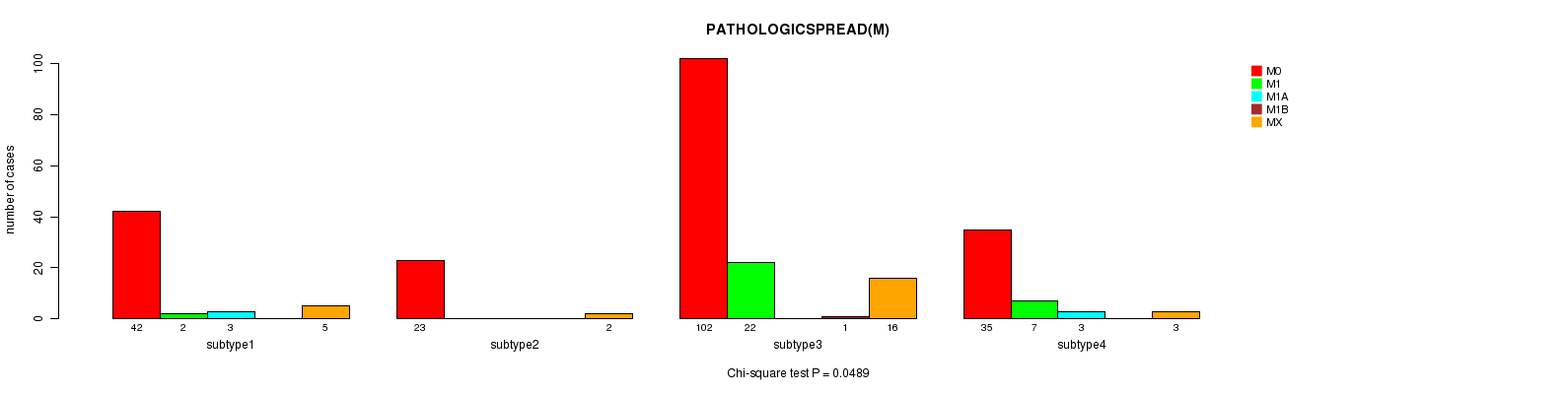

'RPPA cHierClus subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.0489 (Chi-square test), Q value = 1

Table S64. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	202	31	6	1	26
subtype1	42	2	3	0	5
subtype2	23	0	0	0	2
subtype3	102	22	0	1	16
subtype4	35	7	3	0	3

Figure S58. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

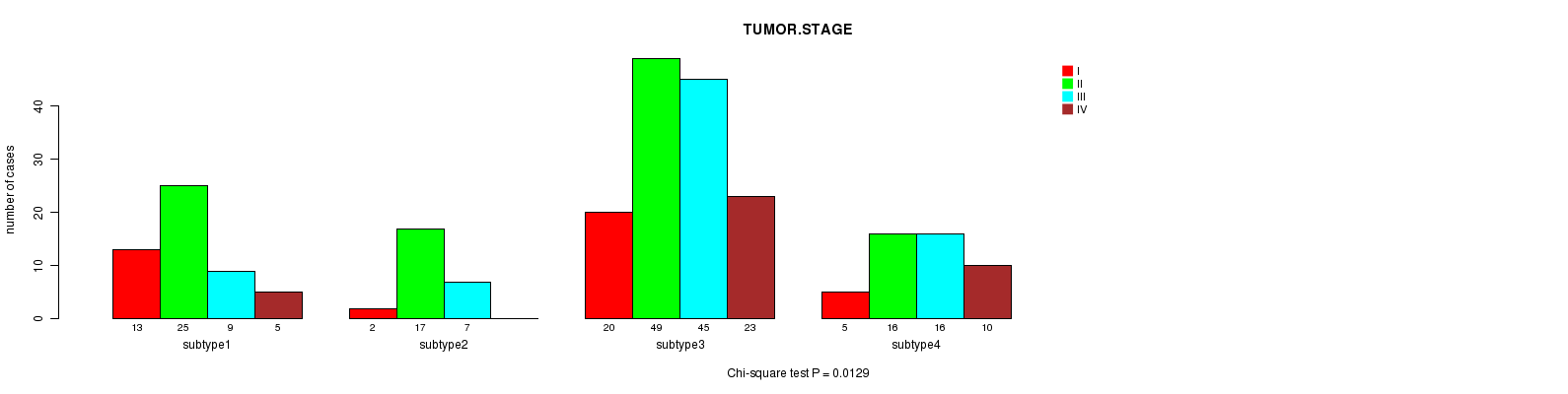

'RPPA cHierClus subtypes' versus 'TUMOR.STAGE'

P value = 0.0129 (Chi-square test), Q value = 1

Table S65. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	40	107	77	38
subtype1	13	25	9	5
subtype2	2	17	7	0
subtype3	20	49	45	23
subtype4	5	16	16	10

Figure S59. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

'RPPA cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.174 (Fisher's exact test), Q value = 1

Table S66. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	266
subtype1	0	52
subtype2	0	27
subtype3	1	140
subtype4	2	47

Figure S60. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RPPA cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.462 (Chi-square test), Q value = 1

Table S67. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	204	11	15
subtype1	43	0	2
subtype2	22	1	2
subtype3	102	9	9
subtype4	37	1	2

Figure S61. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'RPPA cHierClus subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.0338 (ANOVA), Q value = 1

Table S68. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	249	2.1 (4.8)
subtype1	48	1.1 (2.8)
subtype2	25	0.8 (2.1)
subtype3	130	2.1 (3.9)
subtype4	46	3.6 (8.3)

Figure S62. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #7: 'RNAseq CNMF subtypes'

Table S69. Get Full Table Description of clustering approach #7: 'RNAseq CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	31	60	47	54

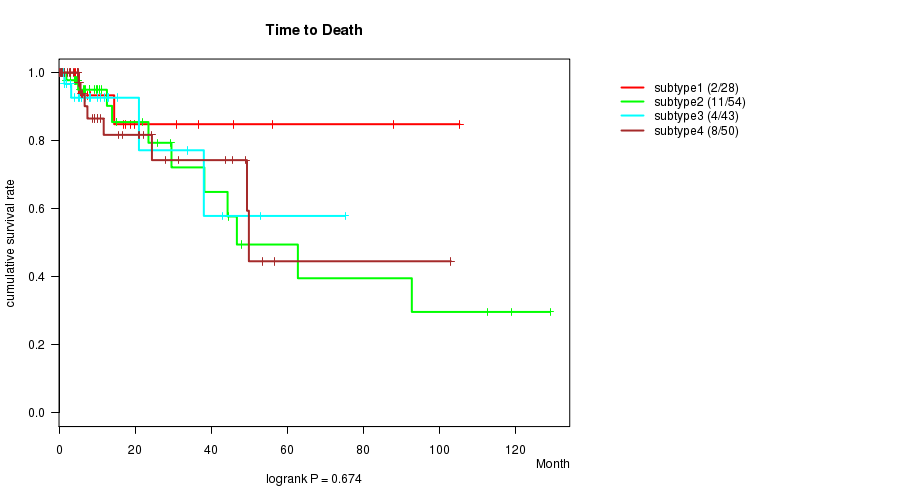

'RNAseq CNMF subtypes' versus 'Time to Death'

P value = 0.674 (logrank test), Q value = 1

Table S70. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	175	25	0.1 - 129.1 (6.6)
subtype1	28	2	0.1 - 105.3 (6.1)
subtype2	54	11	0.1 - 129.1 (8.1)
subtype3	43	4	0.1 - 75.2 (4.0)
subtype4	50	8	0.1 - 103.0 (7.1)

Figure S63. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq CNMF subtypes' versus 'AGE'

P value = 0.77 (ANOVA), Q value = 1

Table S71. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	191	65.4 (13.8)
subtype1	31	66.1 (13.4)
subtype2	60	65.7 (13.5)
subtype3	47	63.6 (13.1)
subtype4	53	66.3 (15.1)

Figure S64. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq CNMF subtypes' versus 'GENDER'

P value = 0.954 (Fisher's exact test), Q value = 1

Table S72. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	92	100
subtype1	14	17
subtype2	28	32
subtype3	24	23
subtype4	26	28

Figure S65. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'GENDER'

'RNAseq CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.00116 (Fisher's exact test), Q value = 0.11

Table S73. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	168	24
subtype1	29	2
subtype2	59	1
subtype3	37	10
subtype4	43	11

Figure S66. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.T'

P value = 0.64 (Chi-square test), Q value = 1

Table S74. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	6	33	126	27
subtype1	2	6	19	4
subtype2	2	14	36	8
subtype3	1	4	33	9
subtype4	1	9	38	6

Figure S67. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

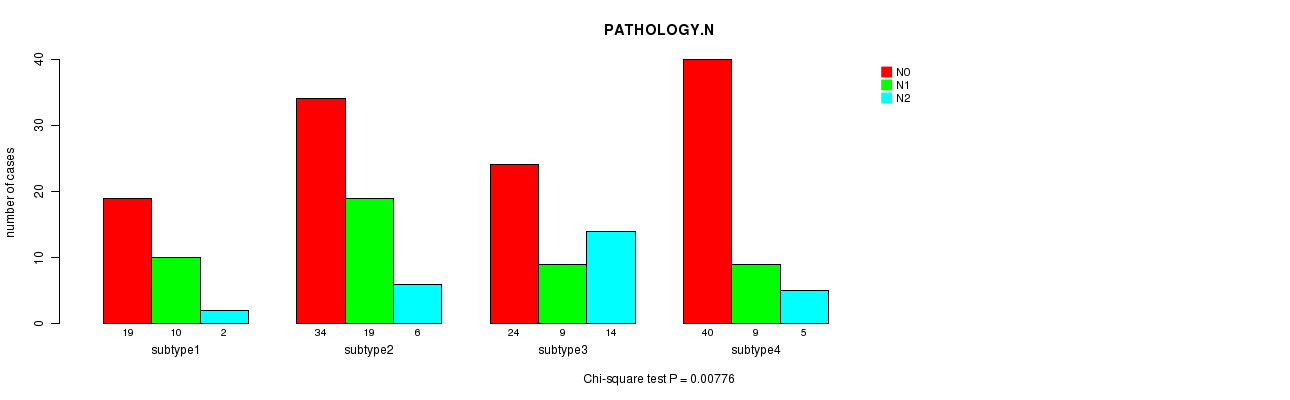

'RNAseq CNMF subtypes' versus 'PATHOLOGY.N'

P value = 0.00776 (Chi-square test), Q value = 0.75

Table S75. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	117	47	27
subtype1	19	10	2
subtype2	34	19	6
subtype3	24	9	14
subtype4	40	9	5

Figure S68. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

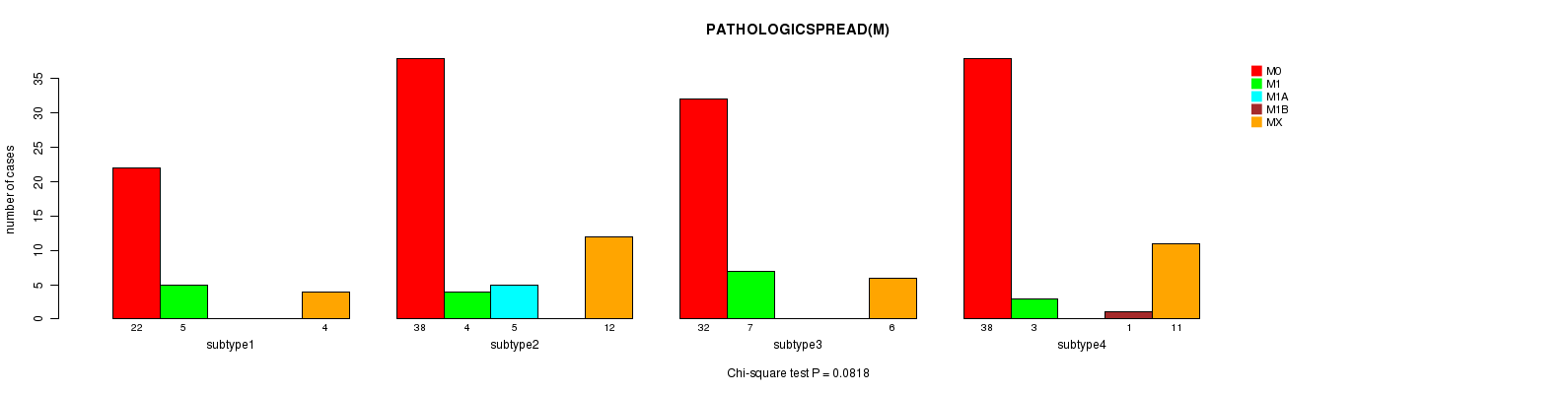

'RNAseq CNMF subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.0818 (Chi-square test), Q value = 1

Table S76. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	130	19	5	1	33
subtype1	22	5	0	0	4
subtype2	38	4	5	0	12
subtype3	32	7	0	0	6
subtype4	38	3	0	1	11

Figure S69. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'RNAseq CNMF subtypes' versus 'TUMOR.STAGE'

P value = 0.146 (Chi-square test), Q value = 1

Table S77. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	31	77	50	25
subtype1	7	9	9	6
subtype2	11	19	17	8
subtype3	4	18	15	7
subtype4	9	31	9	4

Figure S70. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

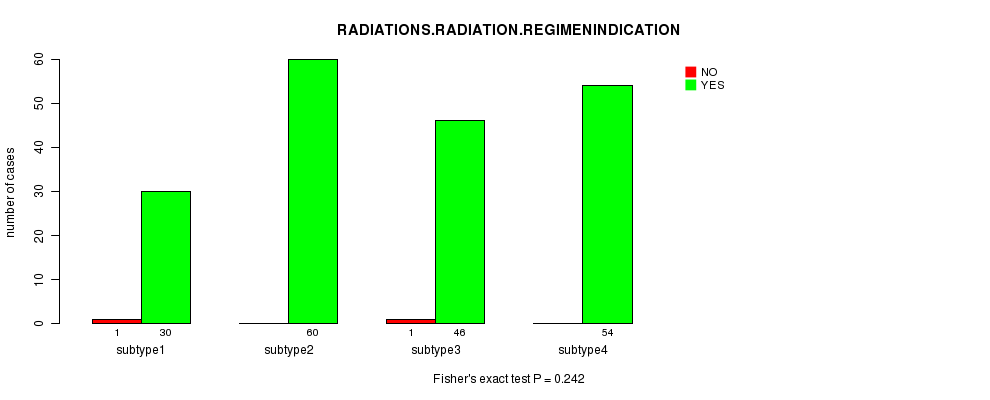

'RNAseq CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.242 (Fisher's exact test), Q value = 1

Table S78. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	2	190
subtype1	1	30
subtype2	0	60
subtype3	1	46
subtype4	0	54

Figure S71. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RNAseq CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.0715 (Chi-square test), Q value = 1

Table S79. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	116	2	22
subtype1	19	2	2
subtype2	32	0	7
subtype3	32	0	5
subtype4	33	0	8

Figure S72. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'RNAseq CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.0199 (ANOVA), Q value = 1

Table S80. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	170	2.0 (4.9)
subtype1	29	1.0 (2.1)
subtype2	53	1.5 (2.8)
subtype3	41	4.0 (8.5)
subtype4	47	1.3 (3.0)

Figure S73. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #8: 'RNAseq cHierClus subtypes'

Table S81. Get Full Table Description of clustering approach #8: 'RNAseq cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	49	63	80

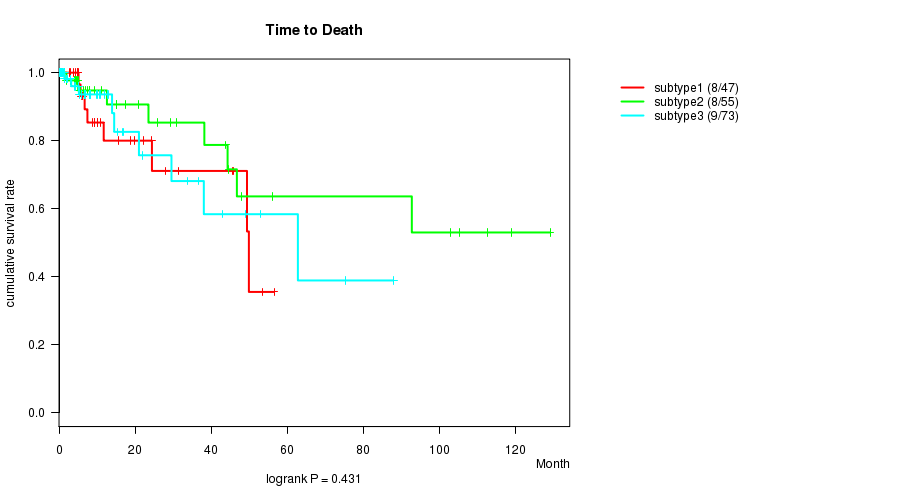

'RNAseq cHierClus subtypes' versus 'Time to Death'

P value = 0.431 (logrank test), Q value = 1

Table S82. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	175	25	0.1 - 129.1 (6.6)
subtype1	47	8	0.1 - 56.5 (6.7)
subtype2	55	8	0.1 - 129.1 (7.6)
subtype3	73	9	0.1 - 87.8 (6.0)

Figure S74. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

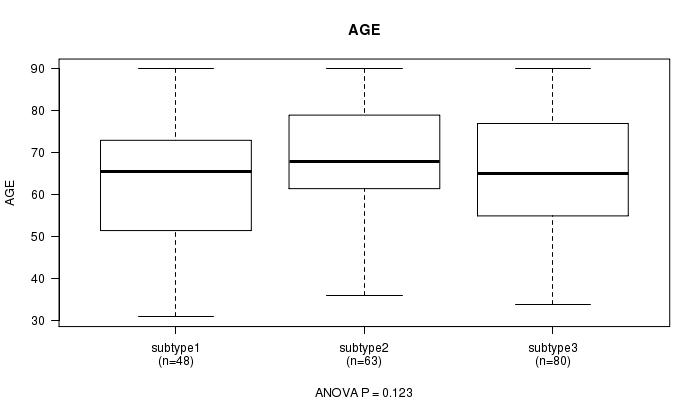

'RNAseq cHierClus subtypes' versus 'AGE'

P value = 0.123 (ANOVA), Q value = 1

Table S83. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	191	65.4 (13.8)
subtype1	48	63.2 (14.9)
subtype2	63	68.2 (12.3)
subtype3	80	64.5 (14.0)

Figure S75. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq cHierClus subtypes' versus 'GENDER'

P value = 0.884 (Fisher's exact test), Q value = 1

Table S84. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	92	100
subtype1	25	24
subtype2	30	33
subtype3	37	43

Figure S76. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'GENDER'

'RNAseq cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.0122 (Fisher's exact test), Q value = 1

Table S85. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	168	24
subtype1	40	9
subtype2	61	2
subtype3	67	13

Figure S77. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.T'

P value = 0.324 (Chi-square test), Q value = 1

Table S86. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	6	33	126	27
subtype1	2	10	32	5
subtype2	2	15	39	7
subtype3	2	8	55	15

Figure S78. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.T'

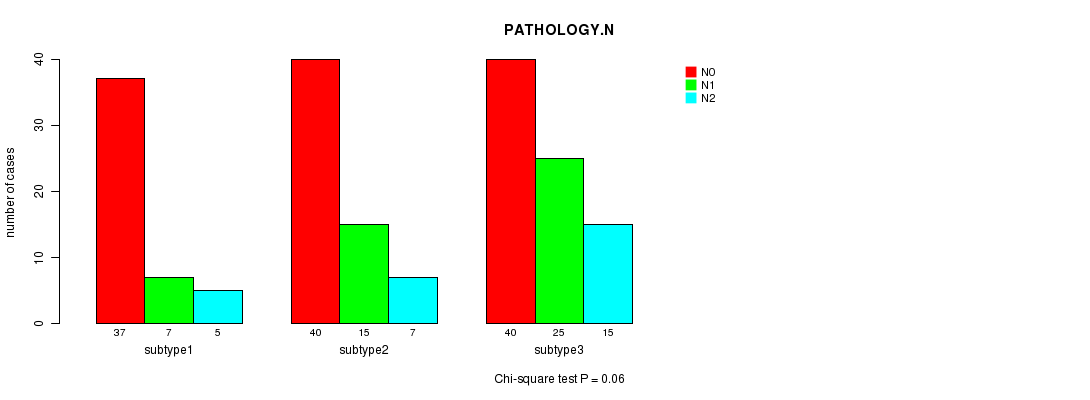

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.N'

P value = 0.06 (Chi-square test), Q value = 1

Table S87. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	117	47	27
subtype1	37	7	5
subtype2	40	15	7
subtype3	40	25	15

Figure S79. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.N'

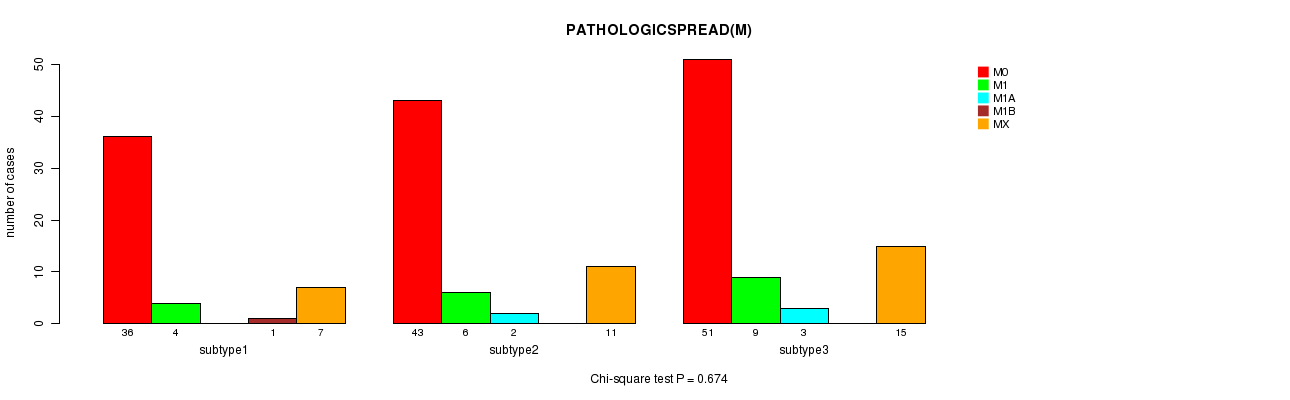

'RNAseq cHierClus subtypes' versus 'PATHOLOGICSPREAD(M)'

P value = 0.674 (Chi-square test), Q value = 1

Table S88. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	130	19	5	1	33
subtype1	36	4	0	1	7
subtype2	43	6	2	0	11
subtype3	51	9	3	0	15

Figure S80. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'RNAseq cHierClus subtypes' versus 'TUMOR.STAGE'

P value = 0.291 (Chi-square test), Q value = 1

Table S89. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	31	77	50	25
subtype1	10	25	9	5
subtype2	13	22	16	9
subtype3	8	30	25	11

Figure S81. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'TUMOR.STAGE'

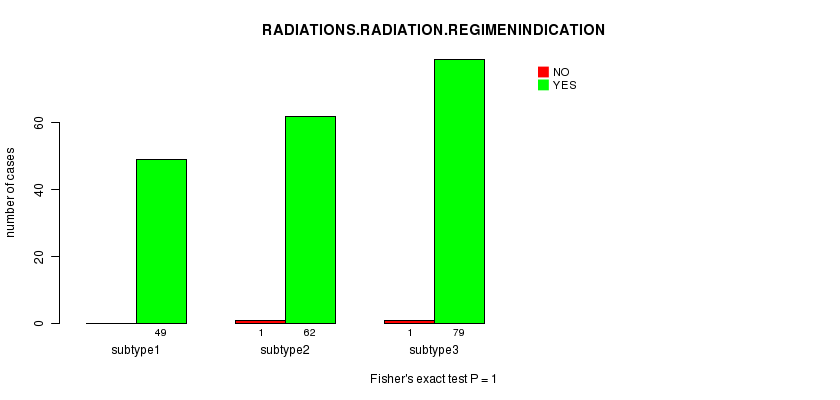

'RNAseq cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 1 (Fisher's exact test), Q value = 1

Table S90. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	2	190
subtype1	0	49
subtype2	1	62
subtype3	1	79

Figure S82. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RNAseq cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.413 (Chi-square test), Q value = 1

Table S91. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	116	2	22
subtype1	29	1	5
subtype2	34	1	10
subtype3	53	0	7

Figure S83. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

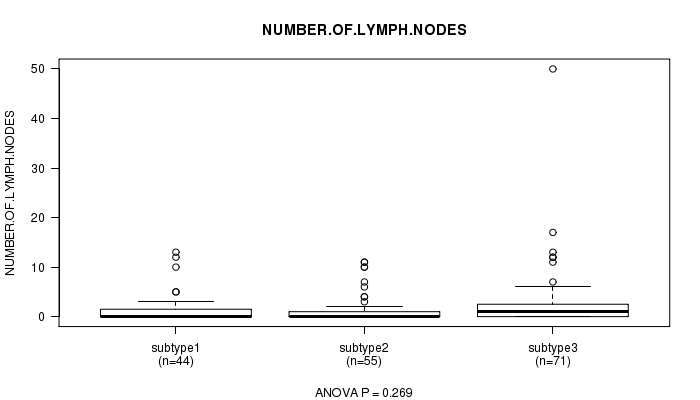

'RNAseq cHierClus subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.269 (ANOVA), Q value = 1

Table S92. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	170	2.0 (4.9)
subtype1	44	1.4 (3.1)
subtype2	55	1.5 (2.9)
subtype3	71	2.7 (6.7)

Figure S84. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #9: 'MIRSEQ CNMF'

Table S93. Get Full Table Description of clustering approach #9: 'MIRSEQ CNMF'

Cluster Labels	1	2	3
Number of samples	182	163	62

'MIRSEQ CNMF' versus 'Time to Death'

P value = 0.246 (logrank test), Q value = 1

Table S94. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	309	49	0.1 - 135.5 (7.5)
subtype1	98	17	0.9 - 71.7 (7.3)
subtype2	153	26	0.1 - 135.5 (9.4)
subtype3	58	6	0.1 - 100.0 (4.3)

Figure S85. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CNMF' versus 'AGE'

P value = 0.000748 (ANOVA), Q value = 0.075

Table S95. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	406	67.3 (13.1)
subtype1	182	69.8 (12.5)
subtype2	162	66.0 (12.6)
subtype3	62	63.3 (14.8)

Figure S86. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

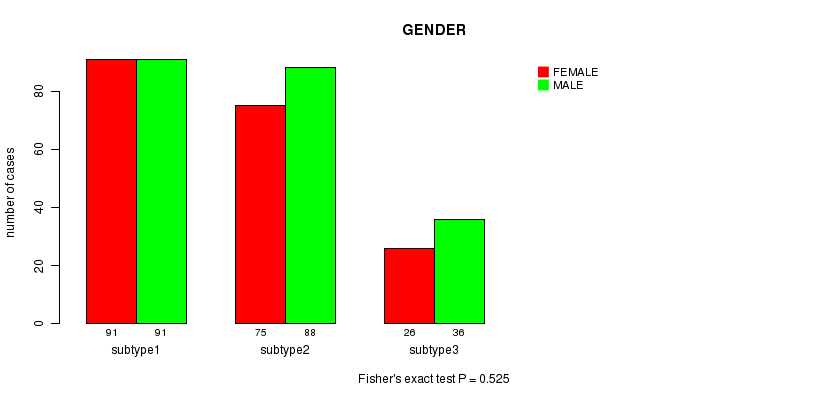

'MIRSEQ CNMF' versus 'GENDER'

P value = 0.525 (Fisher's exact test), Q value = 1

Table S96. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	192	215
subtype1	91	91
subtype2	75	88
subtype3	26	36

Figure S87. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #3: 'GENDER'

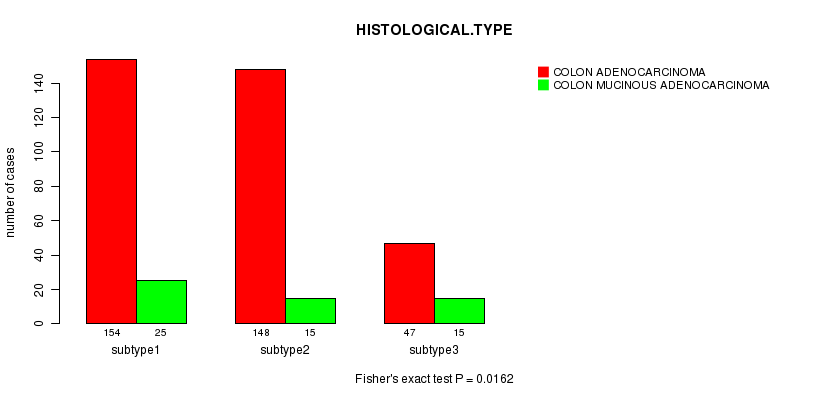

'MIRSEQ CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 0.0162 (Fisher's exact test), Q value = 1

Table S97. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	349	55
subtype1	154	25
subtype2	148	15
subtype3	47	15

Figure S88. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

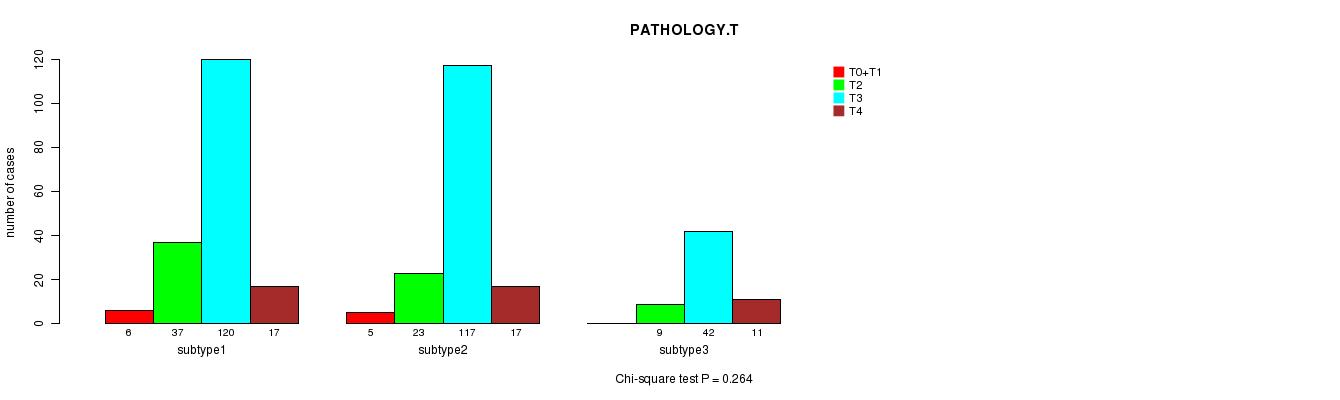

'MIRSEQ CNMF' versus 'PATHOLOGY.T'

P value = 0.264 (Chi-square test), Q value = 1

Table S98. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	11	69	279	45
subtype1	6	37	120	17
subtype2	5	23	117	17
subtype3	0	9	42	11

Figure S89. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.T'

'MIRSEQ CNMF' versus 'PATHOLOGY.N'

P value = 0.515 (Chi-square test), Q value = 1

Table S99. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	241	94	70
subtype1	111	36	34
subtype2	98	40	25
subtype3	32	18	11

Figure S90. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.N'

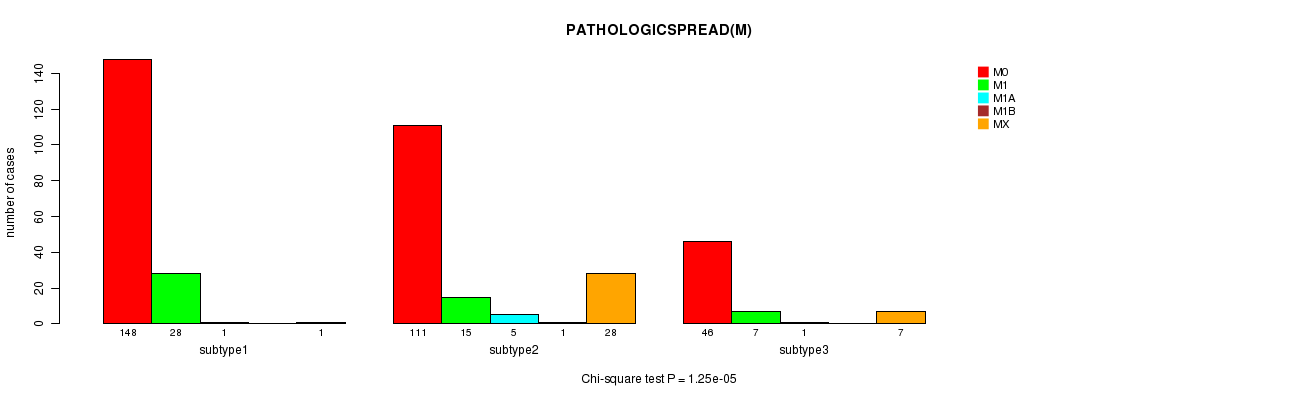

'MIRSEQ CNMF' versus 'PATHOLOGICSPREAD(M)'

P value = 1.25e-05 (Chi-square test), Q value = 0.0013

Table S100. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	305	50	7	1	36
subtype1	148	28	1	0	1
subtype2	111	15	5	1	28
subtype3	46	7	1	0	7

Figure S91. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

'MIRSEQ CNMF' versus 'TUMOR.STAGE'

P value = 0.596 (Chi-square test), Q value = 1

Table S101. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	65	155	113	57
subtype1	34	69	45	27
subtype2	26	63	48	22
subtype3	5	23	20	8

Figure S92. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #8: 'TUMOR.STAGE'

'MIRSEQ CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.544 (Fisher's exact test), Q value = 1

Table S102. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	404
subtype1	1	181
subtype2	1	162
subtype3	1	61

Figure S93. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRSEQ CNMF' versus 'COMPLETENESS.OF.RESECTION'

P value = 2.91e-05 (Chi-square test), Q value = 0.003

Table S103. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	281	1	25	22
subtype1	148	1	22	2
subtype2	92	0	2	15
subtype3	41	0	1	5

Figure S94. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'MIRSEQ CNMF' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.73 (ANOVA), Q value = 1

Table S104. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	383	2.0 (4.5)
subtype1	177	1.9 (3.7)
subtype2	149	2.0 (5.0)
subtype3	57	2.5 (5.4)

Figure S95. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #10: 'MIRSEQ CHIERARCHICAL'

Table S105. Get Full Table Description of clustering approach #10: 'MIRSEQ CHIERARCHICAL'

Cluster Labels	1	2	3
Number of samples	180	45	182

'MIRSEQ CHIERARCHICAL' versus 'Time to Death'

P value = 0.521 (logrank test), Q value = 1

Table S106. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	309	49	0.1 - 135.5 (7.5)
subtype1	97	16	0.9 - 71.7 (9.1)
subtype2	42	8	0.1 - 129.1 (6.7)
subtype3	170	25	0.1 - 135.5 (7.0)

Figure S96. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CHIERARCHICAL' versus 'AGE'

P value = 0.00978 (ANOVA), Q value = 0.93

Table S107. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	406	67.3 (13.1)
subtype1	180	69.5 (12.6)
subtype2	45	66.4 (11.8)
subtype3	181	65.3 (13.6)

Figure S97. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

'MIRSEQ CHIERARCHICAL' versus 'GENDER'

P value = 0.514 (Fisher's exact test), Q value = 1

Table S108. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'GENDER'

nPatients	FEMALE	MALE
ALL	192	215
subtype1	90	90
subtype2	22	23
subtype3	80	102

Figure S98. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'GENDER'

'MIRSEQ CHIERARCHICAL' versus 'HISTOLOGICAL.TYPE'

P value = 0.67 (Fisher's exact test), Q value = 1

Table S109. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

nPatients	COLON ADENOCARCINOMA	COLON MUCINOUS ADENOCARCINOMA
ALL	349	55
subtype1	151	26
subtype2	41	4
subtype3	157	25

Figure S99. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'HISTOLOGICAL.TYPE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.T'

P value = 0.498 (Chi-square test), Q value = 1

Table S110. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.T'

nPatients	T0+T1	T2	T3	T4
ALL	11	69	279	45
subtype1	6	36	119	17
subtype2	2	5	30	7
subtype3	3	28	130	21

Figure S100. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.T'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.N'

P value = 0.95 (Chi-square test), Q value = 1

Table S111. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.N'

nPatients	N0	N1	N2
ALL	241	94	70
subtype1	107	39	33
subtype2	27	10	8
subtype3	107	45	29

Figure S101. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.N'

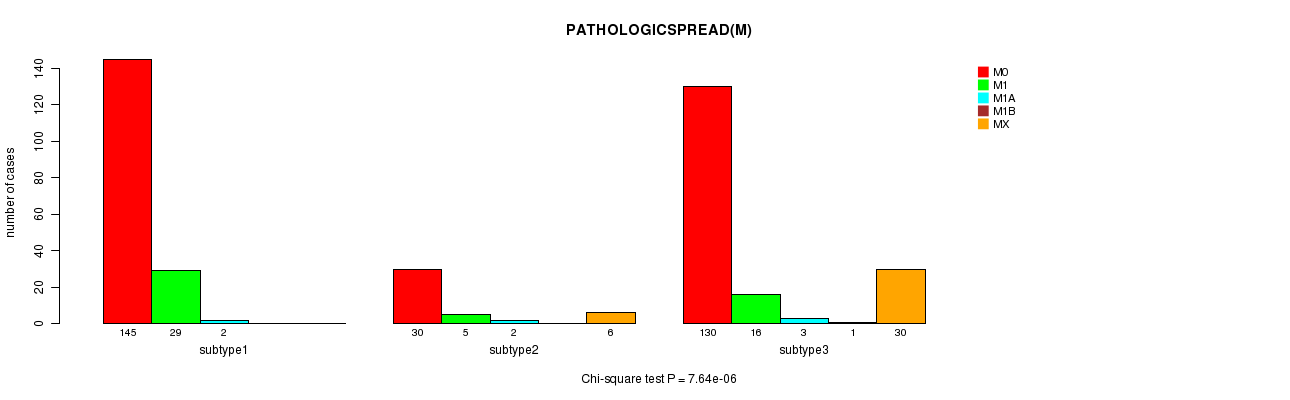

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGICSPREAD(M)'

P value = 7.64e-06 (Chi-square test), Q value = 0.00079

Table S112. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

nPatients	M0	M1	M1A	M1B	MX
ALL	305	50	7	1	36
subtype1	145	29	2	0	0
subtype2	30	5	2	0	6
subtype3	130	16	3	1	30

Figure S102. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'PATHOLOGICSPREAD(M)'

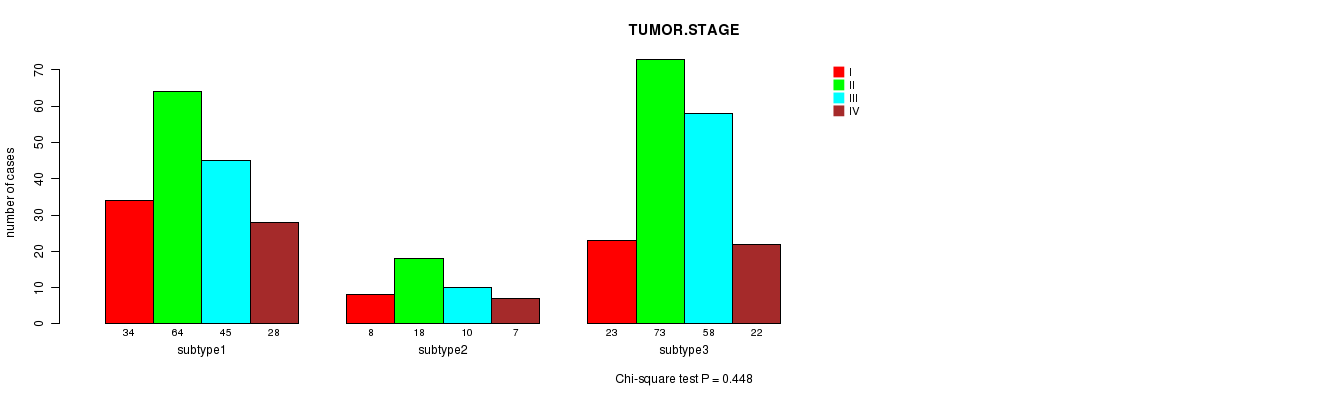

'MIRSEQ CHIERARCHICAL' versus 'TUMOR.STAGE'

P value = 0.448 (Chi-square test), Q value = 1

Table S113. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'TUMOR.STAGE'

nPatients	I	II	III	IV
ALL	65	155	113	57
subtype1	34	64	45	28
subtype2	8	18	10	7
subtype3	23	73	58	22

Figure S103. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'TUMOR.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 1 (Fisher's exact test), Q value = 1

Table S114. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	3	404
subtype1	1	179
subtype2	0	45
subtype3	2	180

Figure S104. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRSEQ CHIERARCHICAL' versus 'COMPLETENESS.OF.RESECTION'

P value = 5.14e-07 (Chi-square test), Q value = 5.4e-05

Table S115. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	281	1	25	22
subtype1	148	1	22	1
subtype2	24	0	2	1
subtype3	109	0	1	20

Figure S105. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #10: 'COMPLETENESS.OF.RESECTION'

'MIRSEQ CHIERARCHICAL' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.847 (ANOVA), Q value = 1

Table S116. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	383	2.0 (4.5)
subtype1	176	2.0 (3.7)
subtype2	42	1.8 (3.3)
subtype3	165	2.2 (5.4)

Figure S106. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #11: 'NUMBER.OF.LYMPH.NODES'

Methods & Data

Input

Cluster data file = COAD-TP.mergedcluster.txt
Clinical data file = COAD-TP.clin.merged.picked.txt
Number of patients = 422
Number of clustering approaches = 10
Number of selected clinical features = 11
Exclude small clusters that include fewer than K patients, K = 3

Clustering approaches

CNMF clustering

consensus non-negative matrix factorization clustering approach (Brunet et al. 2004)

Consensus hierarchical clustering

Resampling-based clustering method (Monti et al. 2003)

Survival analysis

For survival clinical features, the Kaplan-Meier survival curves of tumors with and without gene mutations were plotted and the statistical significance P values were estimated by logrank test (Bland and Altman 2004) using the 'survdiff' function in R

ANOVA analysis

For continuous numerical clinical features, one-way analysis of variance (Howell 2002) was applied to compare the clinical values between tumor subtypes using 'anova' function in R

Fisher's exact test

For binary clinical features, two-tailed Fisher's exact tests (Fisher 1922) were used to estimate the P values using the 'fisher.test' function in R

Chi-square test

For multi-class clinical features (nominal or ordinal), Chi-square tests (Greenwood and Nikulin 1996) were used to estimate the P values using the 'chisq.test' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

This is an experimental feature. The full results of the analysis summarized in this report can be downloaded from the TCGA Data Coordination Center.

References

[1] Brunet et al., Metagenes and molecular pattern discovery using matrix factorization, PNAS 101(12):4164-9 (2004)

[2] Monti et al., Consensus Clustering: A Resampling-Based Method for Class Discovery and Visualization of Gene Expression Microarray Data, Machine Learning 52(1):91-118 (2003)

[3] Bland and Altman, Statistics notes: The logrank test, BMJ 328(7447):1073 (2004)

[4] Howell, D, Statistical Methods for Psychology. (5th ed.), Duxbury Press:324-5 (2002)

[5] Fisher, R.A., On the interpretation of chi-square from contingency tables, and the calculation of P, Journal of the Royal Statistical Society 85(1):87-94 (1922)

[6] Greenwood and Nikulin, A guide to chi-squared testing, Wiley, New York. ISBN 047155779X (1996)

[7] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)

Made with Nozzle
