Correlation between aggregated molecular cancer subtypes and selected clinical features

Cervical Squamous Cell Carcinoma and Endocervical Adenocarcinoma (Primary solid tumor)

16 April 2014 | analyses__2014_04_16

Maintainer Information

Citation Information

Maintained by TCGA GDAC Team (Broad Institute/MD Anderson Cancer Center/Harvard Medical School)

Cite as Broad Institute TCGA Genome Data Analysis Center (2014): Correlation between aggregated molecular cancer subtypes and selected clinical features. Broad Institute of MIT and Harvard. doi:10.7908/C1FJ2FCP

Overview

Introduction

This pipeline computes the correlation between cancer subtypes identified by different molecular patterns and selected clinical features.

Summary

Testing the association between subtypes identified by 8 different clustering approaches and 9 clinical features across 160 patients, 7 significant findings detected with P value < 0.05 and Q value < 0.25.

3 subtypes identified in current cancer cohort by 'Copy Number Ratio CNMF subtypes'. These subtypes do not correlate to any clinical features.
7 subtypes identified in current cancer cohort by 'METHLYATION CNMF'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.
CNMF clustering analysis on sequencing-based mRNA expression data identified 4 subtypes that correlate to 'HISTOLOGICAL.TYPE'.
Consensus hierarchical clustering analysis on sequencing-based mRNA expression data identified 3 subtypes that correlate to 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRSEQ CNMF'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRSEQ CHIERARCHICAL'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRseq Mature CNMF subtypes'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRseq Mature cHierClus subtypes'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.

Results

Overview of the results

Table 1. Get Full Table Overview of the association between subtypes identified by 8 different clustering approaches and 9 clinical features. Shown in the table are P values (Q values). Thresholded by P value < 0.05 and Q value < 0.25, 7 significant findings detected.


Clinical Features	Statistical Tests	Copy Number Ratio CNMF subtypes	METHLYATION CNMF	RNAseq CNMF subtypes	RNAseq cHierClus subtypes	MIRSEQ CNMF	MIRSEQ CHIERARCHICAL	MIRseq Mature CNMF subtypes	MIRseq Mature cHierClus subtypes
Time to Death	logrank test	0.107 (1.00)	0.524 (1.00)	0.873 (1.00)	0.833 (1.00)	0.611 (1.00)	0.662 (1.00)	0.779 (1.00)	0.861 (1.00)
AGE	ANOVA	0.968 (1.00)	0.0139 (0.889)	0.00418 (0.272)	0.141 (1.00)	0.512 (1.00)	0.143 (1.00)	0.366 (1.00)	0.298 (1.00)
PATHOLOGY T STAGE	Chi-square test	0.929 (1.00)	0.943 (1.00)	0.769 (1.00)	0.981 (1.00)	0.906 (1.00)	0.618 (1.00)	0.924 (1.00)	0.927 (1.00)
PATHOLOGY N STAGE	Fisher's exact test	0.0443 (1.00)	0.499 (1.00)	0.361 (1.00)	0.621 (1.00)	0.219 (1.00)	0.405 (1.00)	0.59 (1.00)	0.375 (1.00)
PATHOLOGY M STAGE	Chi-square test	0.515 (1.00)	0.414 (1.00)	0.56 (1.00)	0.0501 (1.00)	0.217 (1.00)	0.0992 (1.00)	0.142 (1.00)	0.0517 (1.00)
HISTOLOGICAL TYPE	Chi-square test	0.734 (1.00)	7.05e-15 (5.01e-13)	7.72e-10 (5.25e-08)	3.26e-15 (2.35e-13)	3.65e-06 (0.000241)	1.16e-12 (7.98e-11)	4.3e-07 (2.88e-05)	4.91e-13 (3.44e-11)
RADIATIONS RADIATION REGIMENINDICATION	Fisher's exact test	0.731 (1.00)	0.314 (1.00)	0.424 (1.00)	0.674 (1.00)	0.25 (1.00)	0.682 (1.00)	0.0177 (1.00)	0.214 (1.00)
NUMBERPACKYEARSSMOKED	ANOVA	0.847 (1.00)	0.387 (1.00)	0.329 (1.00)	0.527 (1.00)	0.441 (1.00)	0.231 (1.00)	0.616 (1.00)	0.849 (1.00)
NUMBER OF LYMPH NODES	ANOVA	0.916 (1.00)	0.612 (1.00)	0.629 (1.00)	0.645 (1.00)	0.684 (1.00)	0.24 (1.00)	0.678 (1.00)	0.585 (1.00)

Clustering Approach #1: 'Copy Number Ratio CNMF subtypes'

Table S1. Description of clustering approach #1: 'Copy Number Ratio CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	46	34	70

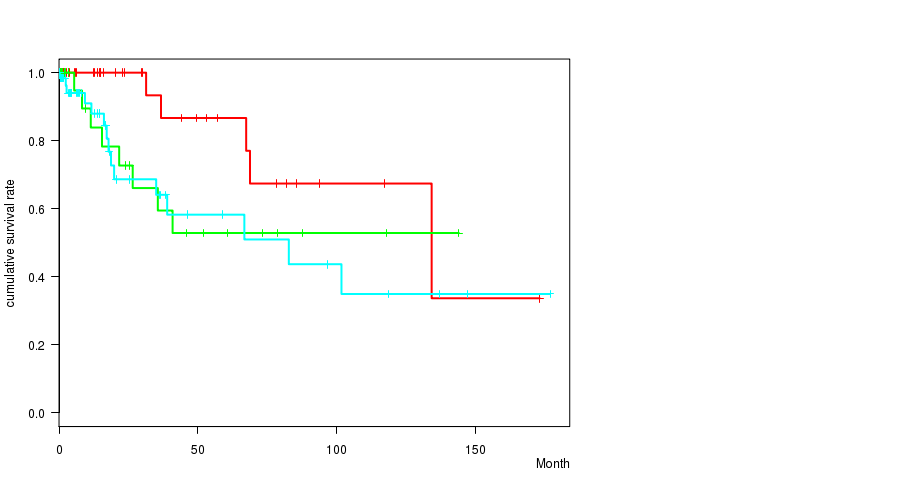

'Copy Number Ratio CNMF subtypes' versus 'Time to Death'

P value = 0.107 (logrank test), Q value = 1

Table S2. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	143	28	0.0 - 177.0 (12.6)
subtype1	44	5	0.0 - 173.3 (15.0)
subtype2	29	8	0.1 - 144.2 (15.5)
subtype3	70	15	0.0 - 177.0 (6.4)

Figure S1. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'Copy Number Ratio CNMF subtypes' versus 'AGE'

P value = 0.968 (ANOVA), Q value = 1

Table S3. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	149	47.4 (13.3)
subtype1	45	47.8 (10.3)
subtype2	34	47.0 (14.9)
subtype3	70	47.3 (14.3)

Figure S2. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

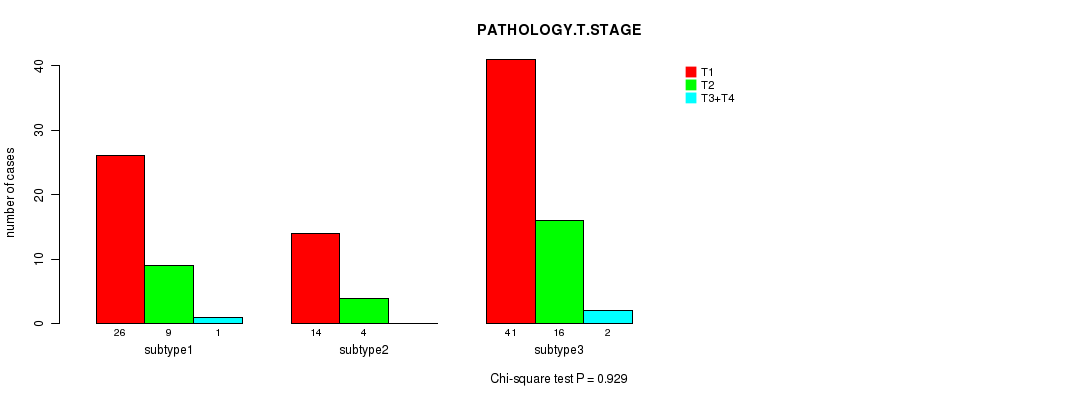

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.929 (Chi-square test), Q value = 1

Table S4. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	81	29	3
subtype1	26	9	1
subtype2	14	4	0
subtype3	41	16	2

Figure S3. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0443 (Fisher's exact test), Q value = 1

Table S5. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	73	36
subtype1	20	14
subtype2	9	9
subtype3	44	13

Figure S4. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.515 (Chi-square test), Q value = 1

Table S6. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	61	3	53
subtype1	24	1	14
subtype2	8	0	11
subtype3	29	2	28

Figure S5. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.734 (Chi-square test), Q value = 1

Table S7. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	124	4	16	1	3
subtype1	0	41	1	3	0	1
subtype2	0	30	1	3	0	0
subtype3	2	53	2	10	1	2

Figure S6. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

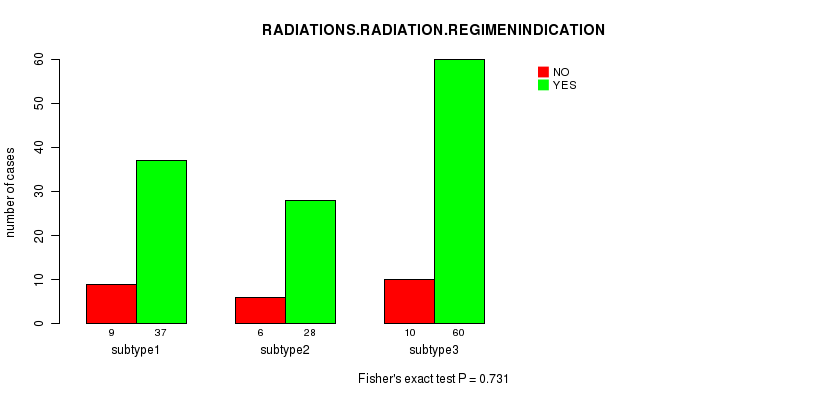

'Copy Number Ratio CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.731 (Fisher's exact test), Q value = 1

Table S8. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	25	125
subtype1	9	37
subtype2	6	28
subtype3	10	60

Figure S7. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'Copy Number Ratio CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.847 (ANOVA), Q value = 1

Table S9. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	43	18.2 (11.7)
subtype1	11	17.8 (12.9)
subtype2	9	20.2 (7.9)
subtype3	23	17.6 (12.7)

Figure S8. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

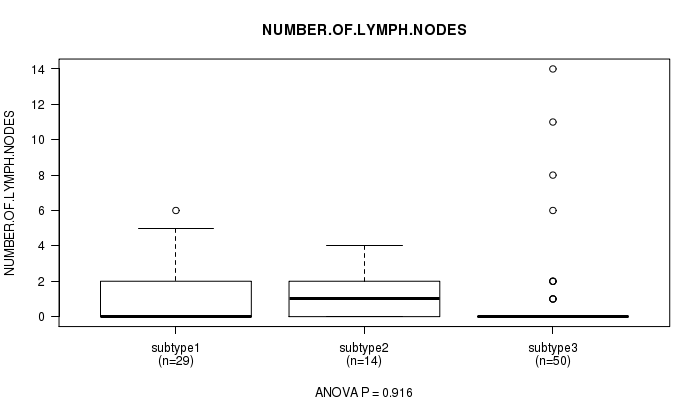

'Copy Number Ratio CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.916 (ANOVA), Q value = 1

Table S10. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	93	1.1 (2.3)
subtype1	29	1.2 (1.7)
subtype2	14	1.1 (1.4)
subtype3	50	1.0 (2.8)

Figure S9. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #2: 'METHLYATION CNMF'

Table S11. Description of clustering approach #2: 'METHLYATION CNMF'

Cluster Labels	1	2	3	4	5	6	7
Number of samples	29	21	16	30	25	25	14

'METHLYATION CNMF' versus 'Time to Death'

P value = 0.524 (logrank test), Q value = 1

Table S12. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	153	32	0.0 - 177.0 (12.7)
subtype1	29	7	0.0 - 177.0 (13.9)
subtype2	18	4	0.6 - 137.2 (21.7)
subtype3	16	2	0.8 - 134.3 (13.3)
subtype4	27	9	0.0 - 118.7 (12.4)
subtype5	25	5	0.1 - 173.3 (5.8)
subtype6	24	5	0.1 - 97.0 (12.2)
subtype7	14	0	0.0 - 53.2 (3.3)

Figure S10. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

'METHLYATION CNMF' versus 'AGE'

P value = 0.0139 (ANOVA), Q value = 0.89

Table S13. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	159	47.8 (13.4)
subtype1	29	47.7 (14.6)
subtype2	21	53.0 (10.6)
subtype3	16	49.2 (10.6)
subtype4	29	42.6 (12.4)
subtype5	25	48.4 (14.8)
subtype6	25	43.4 (11.7)
subtype7	14	56.0 (15.3)

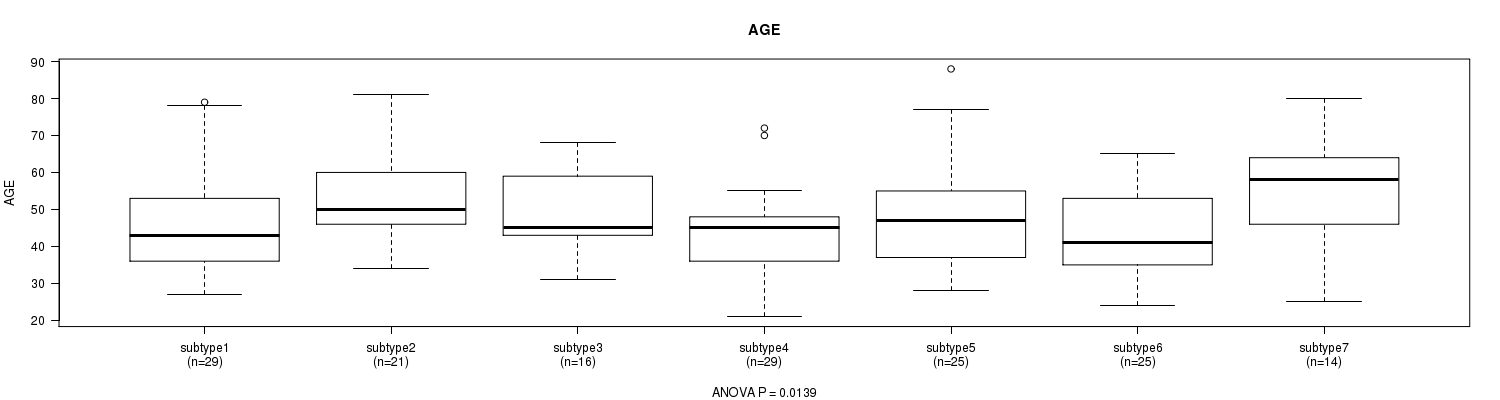

Figure S11. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

'METHLYATION CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.943 (Chi-square test), Q value = 1

Table S14. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	87	31	4
subtype1	16	8	1
subtype2	11	5	1
subtype3	7	4	0
subtype4	13	5	1
subtype5	16	3	0
subtype6	15	4	1
subtype7	9	2	0

Figure S12. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.499 (Chi-square test), Q value = 1

Table S15. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	79	39
subtype1	15	9
subtype2	10	6
subtype3	7	4
subtype4	14	5
subtype5	10	9
subtype6	14	5
subtype7	9	1

Figure S13. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.414 (Chi-square test), Q value = 1

Table S16. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	68	3	55
subtype1	14	0	11
subtype2	10	1	6
subtype3	6	0	7
subtype4	12	0	8
subtype5	13	0	6
subtype6	7	2	12
subtype7	6	0	5

Figure S14. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

'METHLYATION CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 7.05e-15 (Chi-square test), Q value = 5e-13

Table S17. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	134	4	16	1	3
subtype1	0	29	0	0	0	0
subtype2	1	17	0	2	1	0
subtype3	0	16	0	0	0	0
subtype4	0	30	0	0	0	0
subtype5	0	25	0	0	0	0
subtype6	1	3	4	14	0	3
subtype7	0	14	0	0	0	0

Figure S15. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'METHLYATION CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.314 (Chi-square test), Q value = 1

Table S18. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	30	130
subtype1	8	21
subtype2	6	15
subtype3	1	15
subtype4	7	23
subtype5	4	21
subtype6	2	23
subtype7	2	12

Figure S16. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

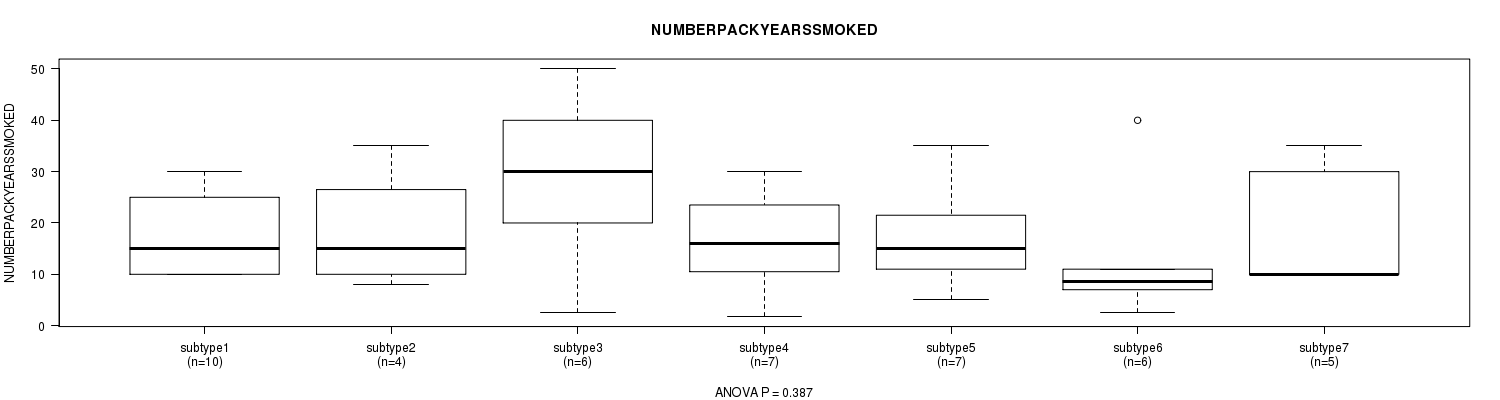

'METHLYATION CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.387 (ANOVA), Q value = 1

Table S19. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	45	18.4 (11.6)
subtype1	10	17.6 (7.3)
subtype2	4	18.2 (11.9)
subtype3	6	28.8 (16.7)
subtype4	7	16.5 (10.0)
subtype5	7	17.1 (10.1)
subtype6	6	12.9 (13.6)
subtype7	5	19.0 (12.4)

Figure S17. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

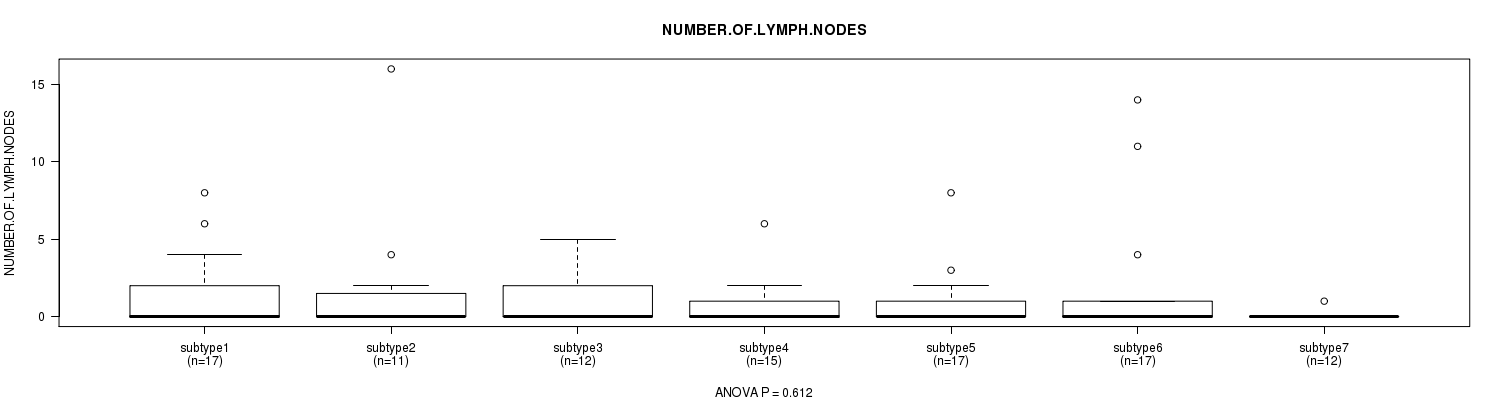

'METHLYATION CNMF' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.612 (ANOVA), Q value = 1

Table S20. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	101	1.2 (2.8)
subtype1	17	1.4 (2.4)
subtype2	11	2.2 (4.8)
subtype3	12	1.2 (1.7)
subtype4	15	0.8 (1.6)
subtype5	17	1.1 (2.0)
subtype6	17	1.8 (4.2)
subtype7	12	0.1 (0.3)

Figure S18. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #3: 'RNAseq CNMF subtypes'

Table S21. Description of clustering approach #3: 'RNAseq CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	55	26	35	30

'RNAseq CNMF subtypes' versus 'Time to Death'

P value = 0.873 (logrank test), Q value = 1

Table S22. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	139	24	0.0 - 177.0 (12.7)
subtype1	54	11	0.1 - 177.0 (5.0)
subtype2	24	3	0.0 - 134.3 (14.7)
subtype3	33	5	0.1 - 147.4 (14.7)
subtype4	28	5	0.0 - 118.7 (11.9)

Figure S19. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq CNMF subtypes' versus 'AGE'

P value = 0.00418 (ANOVA), Q value = 0.27

Table S23. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	145	47.5 (13.1)
subtype1	55	49.6 (14.8)
subtype2	26	53.0 (10.7)
subtype3	35	44.9 (11.3)
subtype4	29	41.8 (11.1)

Figure S20. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

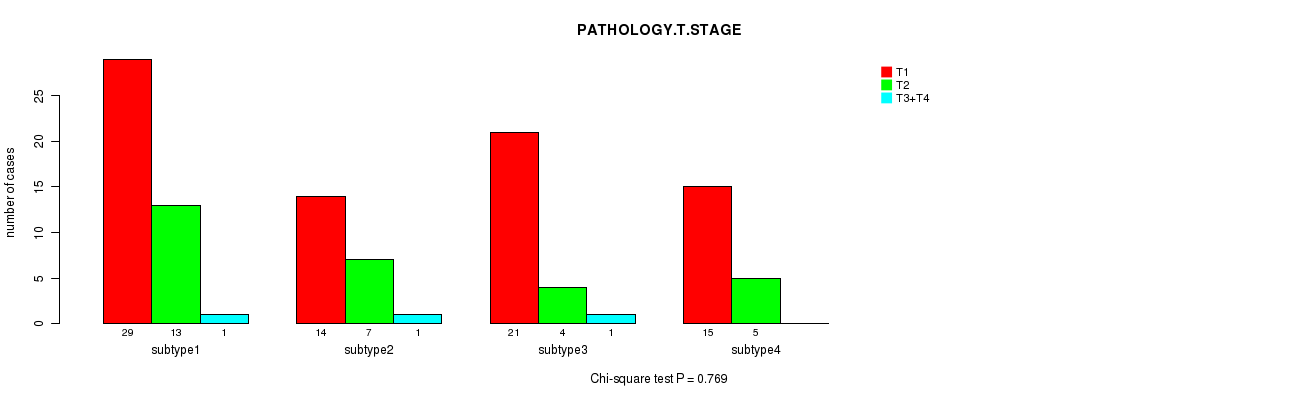

'RNAseq CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.769 (Chi-square test), Q value = 1

Table S24. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	79	29	3
subtype1	29	13	1
subtype2	14	7	1
subtype3	21	4	1
subtype4	15	5	0

Figure S21. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

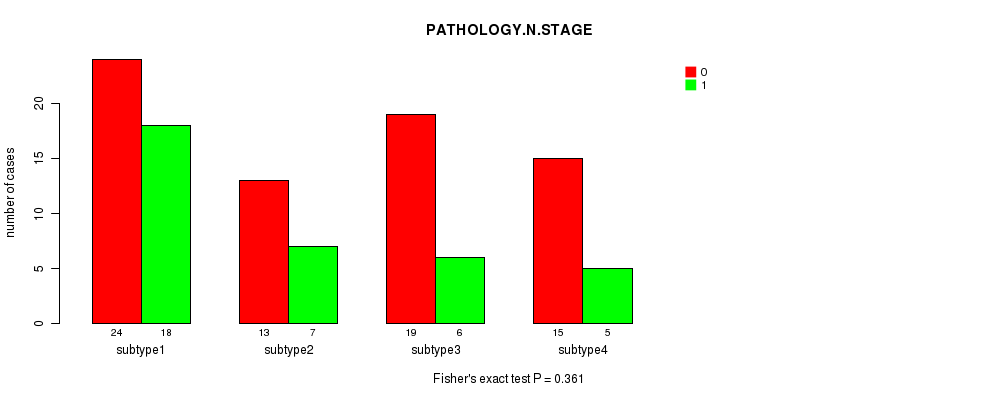

'RNAseq CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.361 (Fisher's exact test), Q value = 1

Table S25. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	71	36
subtype1	24	18
subtype2	13	7
subtype3	19	6
subtype4	15	5

Figure S22. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.56 (Chi-square test), Q value = 1

Table S26. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	62	3	50
subtype1	23	0	21
subtype2	12	1	9
subtype3	14	2	11
subtype4	13	0	9

Figure S23. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

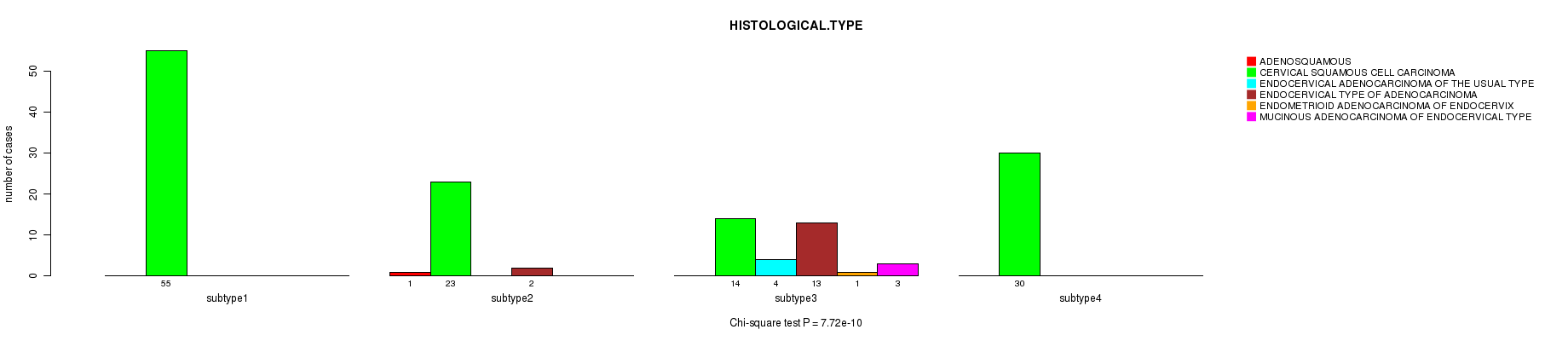

'RNAseq CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 7.72e-10 (Chi-square test), Q value = 5.2e-08

Table S27. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	1	122	4	15	1	3
subtype1	0	55	0	0	0	0
subtype2	1	23	0	2	0	0
subtype3	0	14	4	13	1	3
subtype4	0	30	0	0	0	0

Figure S24. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'RNAseq CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.424 (Fisher's exact test), Q value = 1

Table S28. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	28	118
subtype1	10	45
subtype2	7	19
subtype3	4	31
subtype4	7	23

Figure S25. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

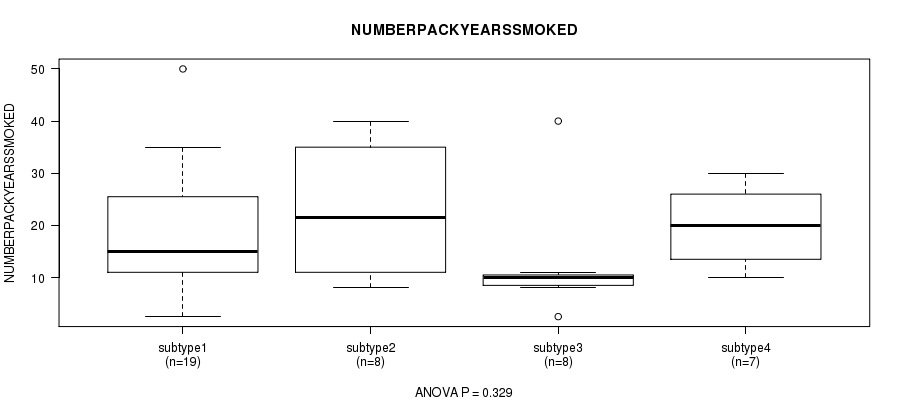

'RNAseq CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.329 (ANOVA), Q value = 1

Table S29. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	42	18.8 (11.4)
subtype1	19	19.4 (11.8)
subtype2	8	22.9 (12.7)
subtype3	8	12.6 (11.4)
subtype4	7	19.9 (7.9)

Figure S26. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

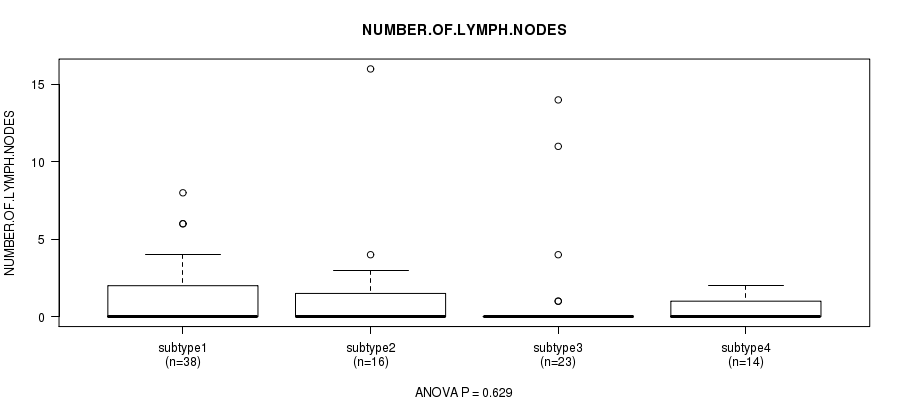

'RNAseq CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.629 (ANOVA), Q value = 1

Table S30. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	91	1.2 (2.8)
subtype1	38	1.2 (2.0)
subtype2	16	1.8 (4.0)
subtype3	23	1.3 (3.7)
subtype4	14	0.4 (0.8)

Figure S27. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #4: 'RNAseq cHierClus subtypes'

Table S31. Description of clustering approach #4: 'RNAseq cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	14	97	35

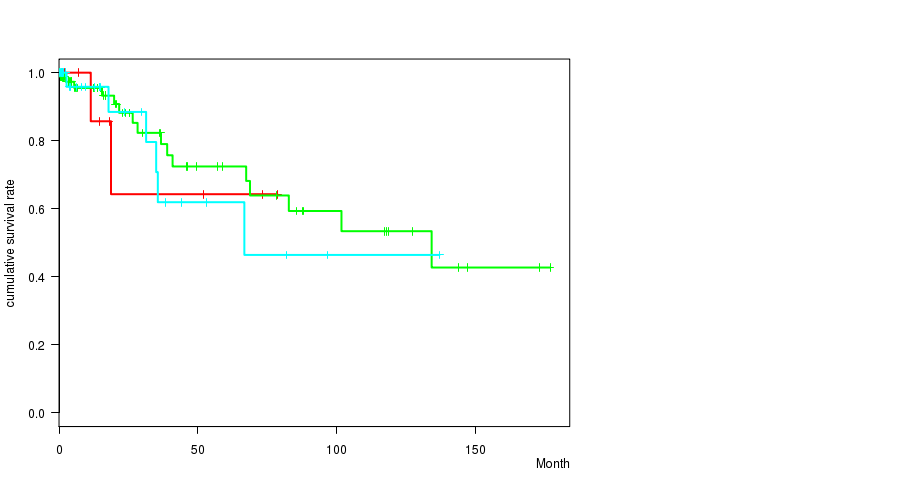

'RNAseq cHierClus subtypes' versus 'Time to Death'

P value = 0.833 (logrank test), Q value = 1

Table S32. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	139	24	0.0 - 177.0 (12.7)
subtype1	13	2	0.0 - 78.7 (11.4)
subtype2	92	16	0.0 - 177.0 (13.3)
subtype3	34	6	0.1 - 137.2 (11.2)

Figure S28. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq cHierClus subtypes' versus 'AGE'

P value = 0.141 (ANOVA), Q value = 1

Table S33. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	145	47.5 (13.1)
subtype1	14	41.6 (8.3)
subtype2	96	48.8 (14.0)
subtype3	35	46.5 (11.3)

Figure S29. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

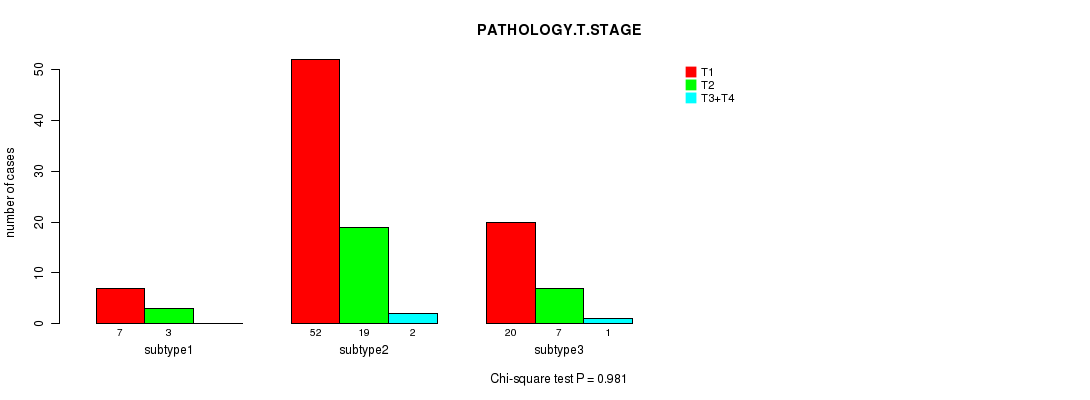

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.981 (Chi-square test), Q value = 1

Table S34. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	79	29	3
subtype1	7	3	0
subtype2	52	19	2
subtype3	20	7	1

Figure S30. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.621 (Fisher's exact test), Q value = 1

Table S35. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	71	36
subtype1	8	3
subtype2	44	26
subtype3	19	7

Figure S31. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

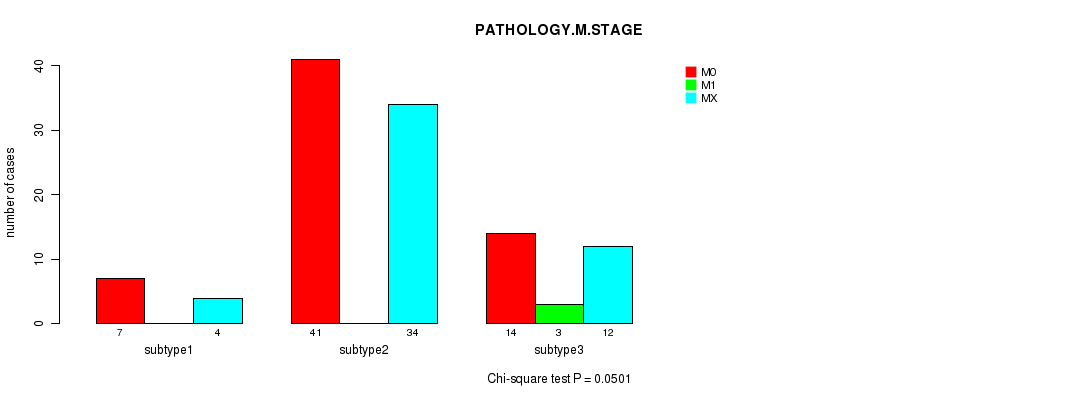

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.0501 (Chi-square test), Q value = 1

Table S36. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	62	3	50
subtype1	7	0	4
subtype2	41	0	34
subtype3	14	3	12

Figure S32. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

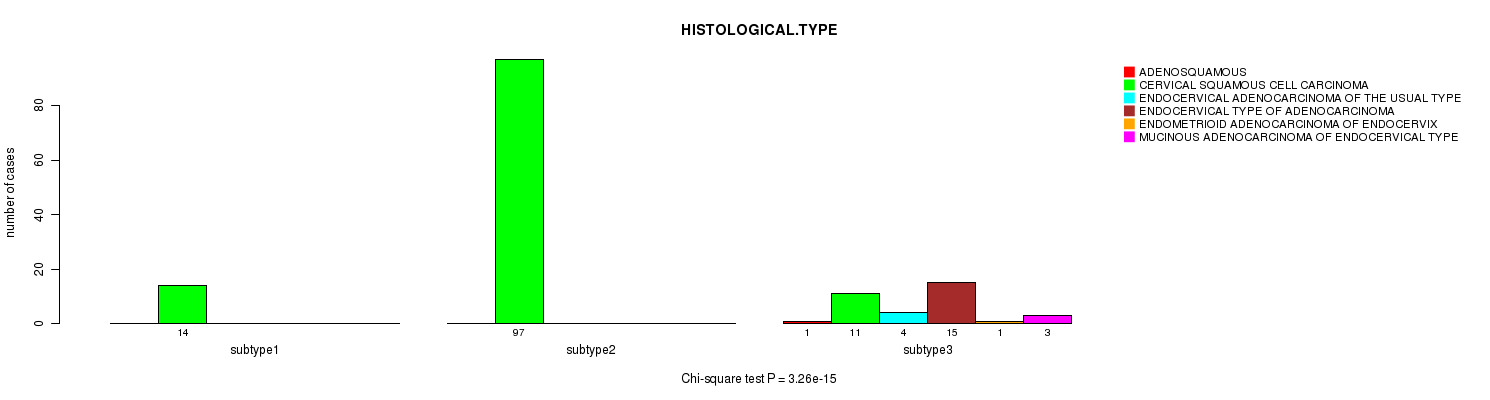

'RNAseq cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 3.26e-15 (Chi-square test), Q value = 2.3e-13

Table S37. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	1	122	4	15	1	3
subtype1	0	14	0	0	0	0
subtype2	0	97	0	0	0	0
subtype3	1	11	4	15	1	3

Figure S33. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'RNAseq cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.674 (Fisher's exact test), Q value = 1

Table S38. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	28	118
subtype1	2	12
subtype2	21	76
subtype3	5	30

Figure S34. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RNAseq cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.527 (ANOVA), Q value = 1

Table S39. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	42	18.8 (11.4)
subtype1	4	23.2 (6.4)
subtype2	30	19.1 (11.3)
subtype3	8	15.4 (13.9)

Figure S35. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

'RNAseq cHierClus subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.645 (ANOVA), Q value = 1

Table S40. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	91	1.2 (2.8)
subtype1	8	0.4 (0.7)
subtype2	61	1.2 (2.6)
subtype3	22	1.5 (3.7)

Figure S36. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #5: 'MIRSEQ CNMF'

Table S41. Description of clustering approach #5: 'MIRSEQ CNMF'

Cluster Labels	1	2	3
Number of samples	63	45	50

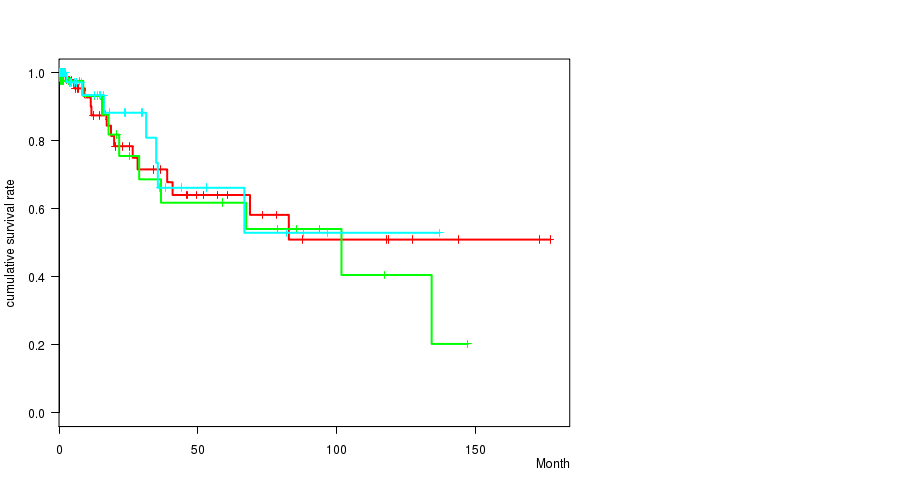

'MIRSEQ CNMF' versus 'Time to Death'

P value = 0.611 (logrank test), Q value = 1

Table S42. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	151	31	0.0 - 177.0 (12.7)
subtype1	60	12	0.0 - 177.0 (12.5)
subtype2	42	11	0.0 - 147.4 (13.3)
subtype3	49	8	0.1 - 137.2 (12.8)

Figure S37. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CNMF' versus 'AGE'

P value = 0.512 (ANOVA), Q value = 1

Table S43. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	157	47.6 (13.4)
subtype1	62	46.4 (14.9)
subtype2	45	49.4 (14.0)
subtype3	50	47.6 (10.7)

Figure S38. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.906 (Chi-square test), Q value = 1

Table S44. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	86	31	4
subtype1	30	11	1
subtype2	25	8	2
subtype3	31	12	1

Figure S39. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

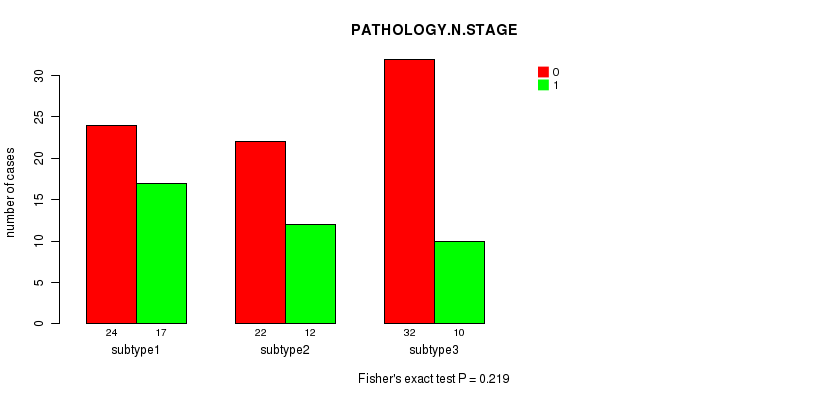

'MIRSEQ CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.219 (Fisher's exact test), Q value = 1

Table S45. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	78	39
subtype1	24	17
subtype2	22	12
subtype3	32	10

Figure S40. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.217 (Chi-square test), Q value = 1

Table S46. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	68	3	54
subtype1	25	0	18
subtype2	21	0	16
subtype3	22	3	20

Figure S41. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

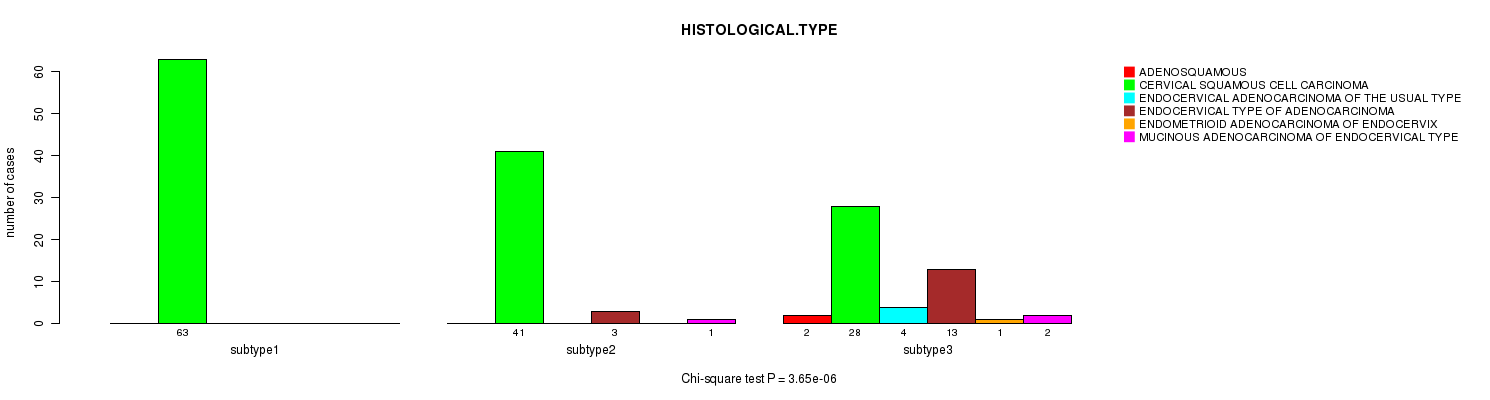

'MIRSEQ CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 3.65e-06 (Chi-square test), Q value = 0.00024

Table S47. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	132	4	16	1	3
subtype1	0	63	0	0	0	0
subtype2	0	41	0	3	0	1
subtype3	2	28	4	13	1	2

Figure S42. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'MIRSEQ CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.25 (Fisher's exact test), Q value = 1

Table S48. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	30	128
subtype1	16	47
subtype2	6	39
subtype3	8	42

Figure S43. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

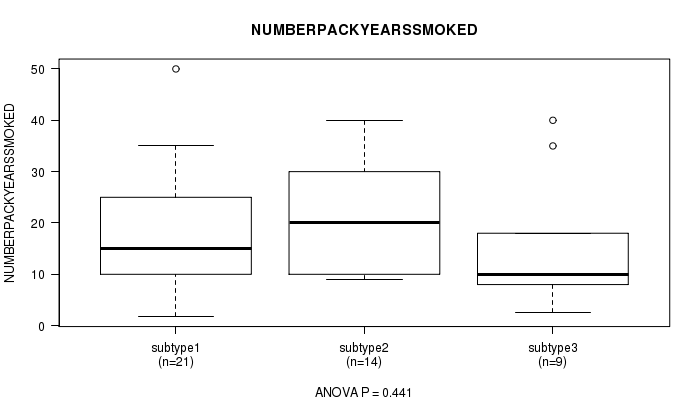

'MIRSEQ CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.441 (ANOVA), Q value = 1

Table S49. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	44	18.2 (11.6)
subtype1	21	17.2 (11.3)
subtype2	14	21.4 (11.1)
subtype3	9	15.5 (13.2)

Figure S44. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

'MIRSEQ CNMF' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.684 (ANOVA), Q value = 1

Table S50. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	100	1.2 (2.8)
subtype1	33	1.2 (2.9)
subtype2	34	1.6 (2.7)
subtype3	33	1.0 (2.8)

Figure S45. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #6: 'MIRSEQ CHIERARCHICAL'

Table S51. Description of clustering approach #6: 'MIRSEQ CHIERARCHICAL'

Cluster Labels	1	2	3
Number of samples	63	50	45

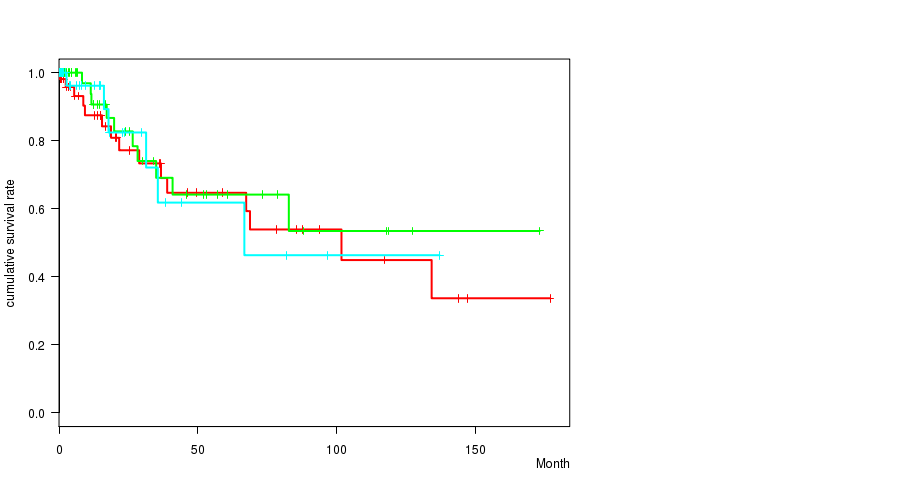

'MIRSEQ CHIERARCHICAL' versus 'Time to Death'

P value = 0.662 (logrank test), Q value = 1

Table S52. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	151	31	0.0 - 177.0 (12.7)
subtype1	62	16	0.0 - 177.0 (15.0)
subtype2	46	7	0.0 - 173.3 (12.0)
subtype3	43	8	0.1 - 137.2 (9.7)

Figure S46. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

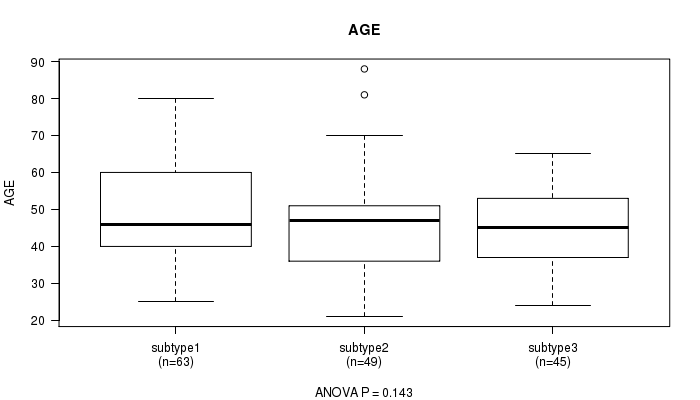

'MIRSEQ CHIERARCHICAL' versus 'AGE'

P value = 0.143 (ANOVA), Q value = 1

Table S53. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	157	47.6 (13.4)
subtype1	63	50.2 (14.2)
subtype2	49	46.4 (14.2)
subtype3	45	45.4 (10.7)

Figure S47. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.T.STAGE'

P value = 0.618 (Chi-square test), Q value = 1

Table S54. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	86	31	4
subtype1	35	14	2
subtype2	24	10	0
subtype3	27	7	2

Figure S48. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

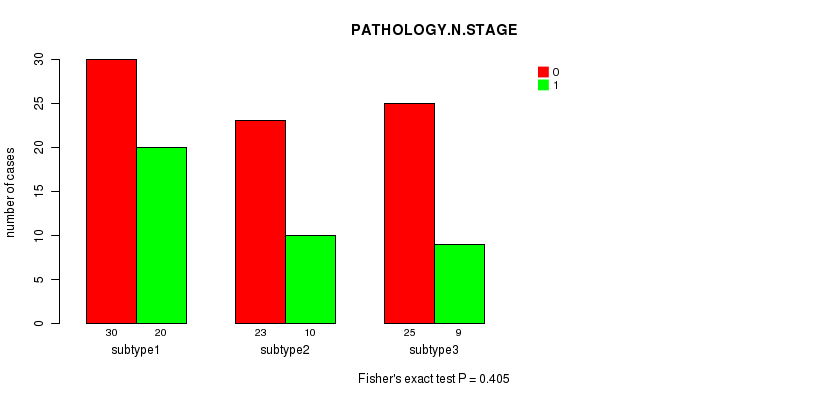

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.N.STAGE'

P value = 0.405 (Fisher's exact test), Q value = 1

Table S55. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	78	39
subtype1	30	20
subtype2	23	10
subtype3	25	9

Figure S49. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

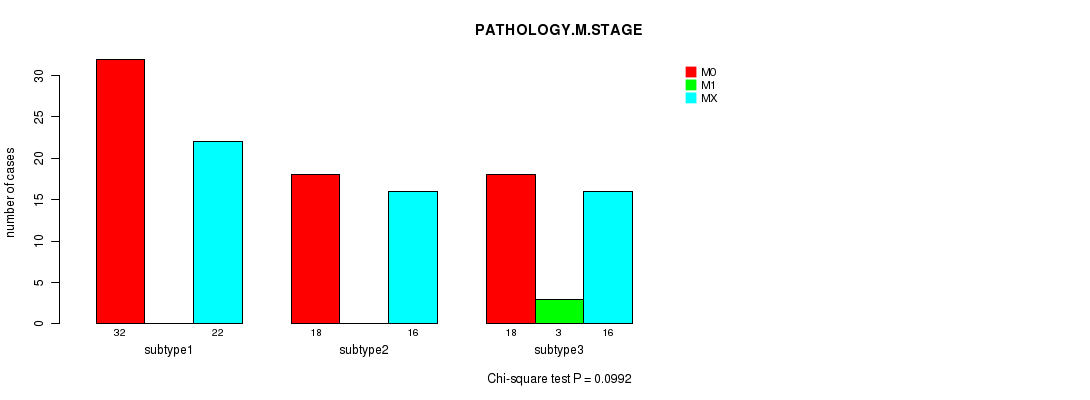

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.M.STAGE'

P value = 0.0992 (Chi-square test), Q value = 1

Table S56. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	68	3	54
subtype1	32	0	22
subtype2	18	0	16
subtype3	18	3	16

Figure S50. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'HISTOLOGICAL.TYPE'

P value = 1.16e-12 (Chi-square test), Q value = 8e-11

Table S57. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	132	4	16	1	3
subtype1	0	63	0	0	0	0
subtype2	0	50	0	0	0	0
subtype3	2	19	4	16	1	3

Figure S51. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

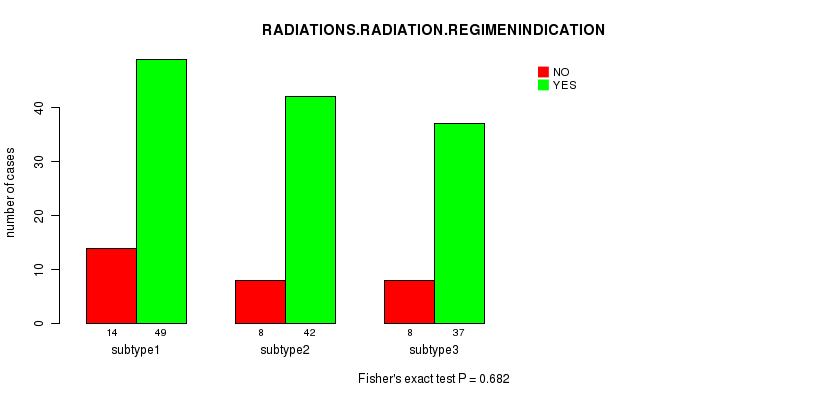

'MIRSEQ CHIERARCHICAL' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.682 (Fisher's exact test), Q value = 1

Table S58. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	30	128
subtype1	14	49
subtype2	8	42
subtype3	8	37

Figure S52. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRSEQ CHIERARCHICAL' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.231 (ANOVA), Q value = 1

Table S59. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	44	18.2 (11.6)
subtype1	21	21.2 (12.1)
subtype2	13	16.4 (9.1)
subtype3	10	14.2 (12.6)

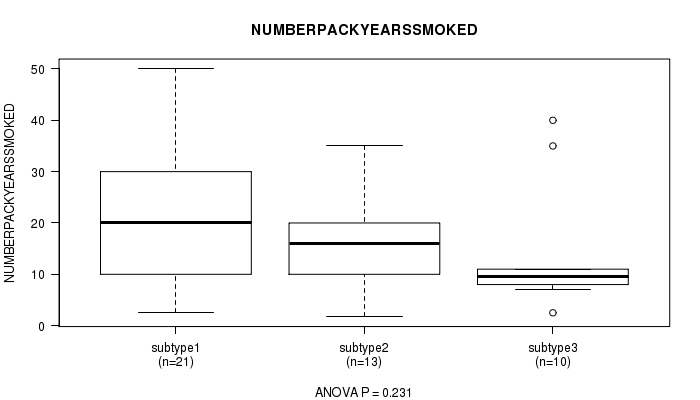

Figure S53. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

'MIRSEQ CHIERARCHICAL' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.24 (ANOVA), Q value = 1

Table S60. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	100	1.2 (2.8)
subtype1	45	1.7 (3.1)
subtype2	27	0.5 (0.8)
subtype3	28	1.2 (3.3)

Figure S54. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #7: 'MIRseq Mature CNMF subtypes'

Table S61. Description of clustering approach #7: 'MIRseq Mature CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	63	45	50

'MIRseq Mature CNMF subtypes' versus 'Time to Death'

P value = 0.779 (logrank test), Q value = 1

Table S62. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	151	31	0.0 - 177.0 (12.7)
subtype1	60	14	0.0 - 177.0 (15.6)
subtype2	43	10	0.0 - 147.4 (8.8)
subtype3	48	7	0.1 - 137.2 (11.2)

Figure S55. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'MIRseq Mature CNMF subtypes' versus 'AGE'

P value = 0.366 (ANOVA), Q value = 1

Table S63. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	157	47.6 (13.4)
subtype1	62	46.3 (15.2)
subtype2	45	50.0 (13.9)
subtype3	50	47.2 (10.1)

Figure S56. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.924 (Chi-square test), Q value = 1

Table S64. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	86	31	4
subtype1	31	10	1
subtype2	25	10	2
subtype3	30	11	1

Figure S57. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.59 (Fisher's exact test), Q value = 1

Table S65. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	78	39
subtype1	26	16
subtype2	23	12
subtype3	29	11

Figure S58. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.142 (Chi-square test), Q value = 1

Table S66. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	68	3	54
subtype1	25	0	18
subtype2	23	0	15
subtype3	20	3	21

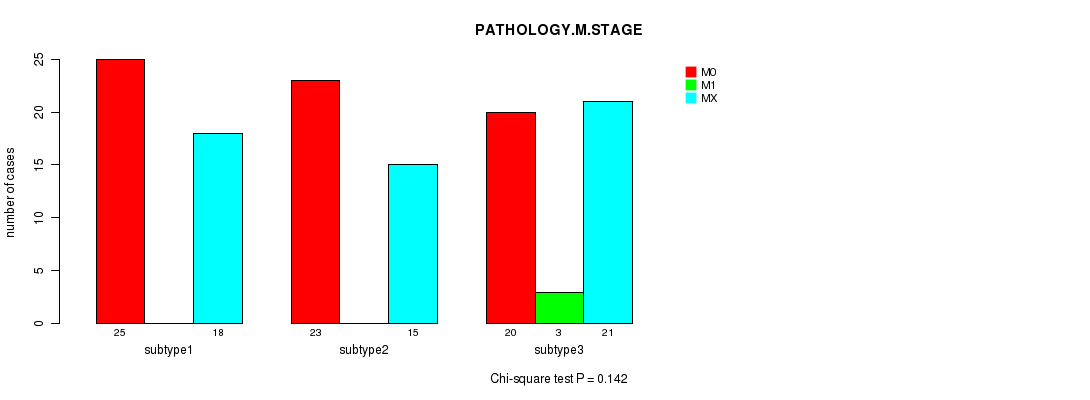

Figure S59. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

'MIRseq Mature CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 4.3e-07 (Chi-square test), Q value = 2.9e-05

Table S67. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	132	4	16	1	3
subtype1	0	63	0	0	0	0
subtype2	0	42	0	2	0	1
subtype3	2	27	4	14	1	2

Figure S60. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'MIRseq Mature CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.0177 (Fisher's exact test), Q value = 1

Table S68. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	30	128
subtype1	19	44
subtype2	5	40
subtype3	6	44

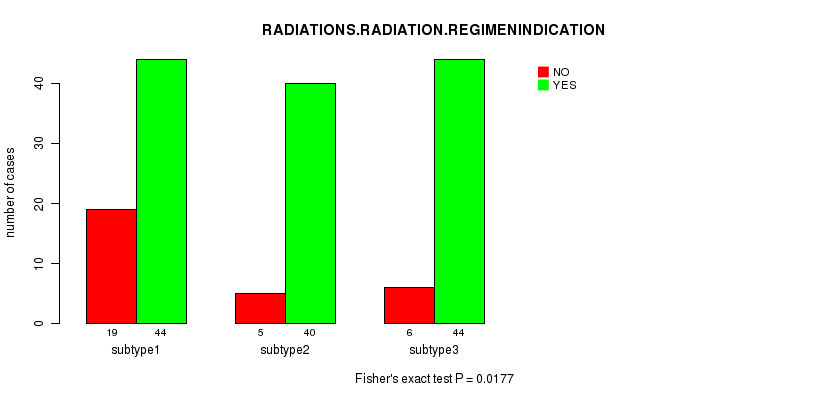

Figure S61. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRseq Mature CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.616 (ANOVA), Q value = 1

Table S69. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	44	18.2 (11.6)
subtype1	20	17.7 (10.7)
subtype2	13	20.7 (11.2)
subtype3	11	16.1 (13.9)

Figure S62. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

'MIRseq Mature CNMF subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.678 (ANOVA), Q value = 1

Table S70. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	100	1.2 (2.8)
subtype1	35	1.3 (3.0)
subtype2	35	1.5 (2.7)
subtype3	30	0.9 (2.7)

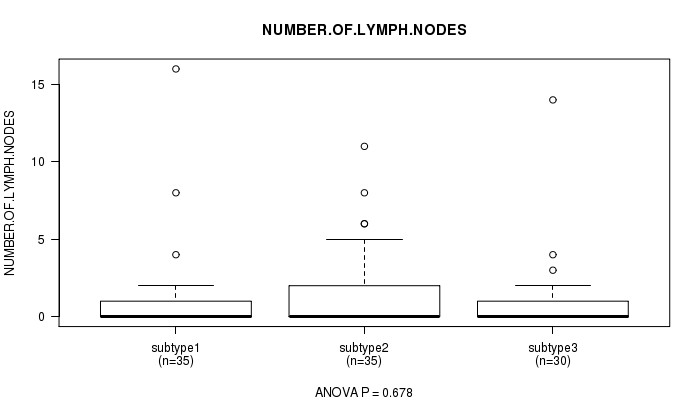

Figure S63. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Clustering Approach #8: 'MIRseq Mature cHierClus subtypes'

Table S71. Description of clustering approach #8: 'MIRseq Mature cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	60	57	41

'MIRseq Mature cHierClus subtypes' versus 'Time to Death'

P value = 0.861 (logrank test), Q value = 1

Table S72. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	151	31	0.0 - 177.0 (12.7)
subtype1	57	15	0.0 - 177.0 (14.9)
subtype2	55	10	0.0 - 173.3 (12.6)
subtype3	39	6	0.0 - 137.2 (7.9)

Figure S64. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'MIRseq Mature cHierClus subtypes' versus 'AGE'

P value = 0.298 (ANOVA), Q value = 1

Table S73. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	157	47.6 (13.4)
subtype1	60	49.7 (15.2)
subtype2	56	46.7 (13.0)
subtype3	41	45.9 (10.7)

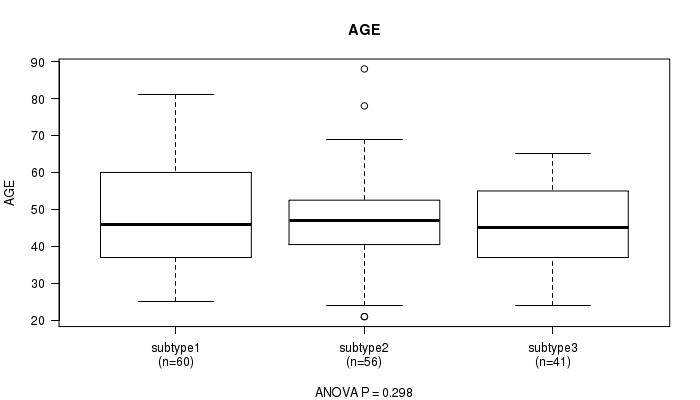

Figure S65. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.927 (Chi-square test), Q value = 1

Table S74. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	86	31	4
subtype1	33	10	2
subtype2	30	13	1
subtype3	23	8	1

Figure S66. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'PATHOLOGY.T.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.375 (Fisher's exact test), Q value = 1

Table S75. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

nPatients	0	1
ALL	78	39
subtype1	27	17
subtype2	28	15
subtype3	23	7

Figure S67. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.N.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.0517 (Chi-square test), Q value = 1

Table S76. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	68	3	54
subtype1	29	0	19
subtype2	24	0	20
subtype3	15	3	15

Figure S68. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.M.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 4.91e-13 (Chi-square test), Q value = 3.4e-11

Table S77. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

nPatients	ADENOSQUAMOUS	CERVICAL SQUAMOUS CELL CARCINOMA	ENDOCERVICAL ADENOCARCINOMA OF THE USUAL TYPE	ENDOCERVICAL TYPE OF ADENOCARCINOMA	ENDOMETRIOID ADENOCARCINOMA OF ENDOCERVIX	MUCINOUS ADENOCARCINOMA OF ENDOCERVICAL TYPE
ALL	2	132	4	16	1	3
subtype1	0	60	0	0	0	0
subtype2	0	56	0	1	0	0
subtype3	2	16	4	15	1	3

Figure S69. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'HISTOLOGICAL.TYPE'

'MIRseq Mature cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.214 (Fisher's exact test), Q value = 1

Table S78. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	30	128
subtype1	13	47
subtype2	13	44
subtype3	4	37

Figure S70. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRseq Mature cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.849 (ANOVA), Q value = 1

Table S79. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	44	18.2 (11.6)
subtype1	19	18.8 (10.8)
subtype2	16	18.6 (12.0)
subtype3	9	16.2 (13.6)

Figure S71. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

'MIRseq Mature cHierClus subtypes' versus 'NUMBER.OF.LYMPH.NODES'

P value = 0.585 (ANOVA), Q value = 1

Table S80. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

	nPatients	Mean (Std.Dev)
ALL	100	1.2 (2.8)
subtype1	40	1.2 (2.1)
subtype2	36	1.6 (3.6)
subtype3	24	0.8 (2.3)

Figure S72. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #9: 'NUMBER.OF.LYMPH.NODES'

Methods & Data

Input

Cluster data file = CESC-TP.mergedcluster.txt
Clinical data file = CESC-TP.merged_data.txt
Number of patients = 160
Number of clustering approaches = 8
Number of selected clinical features = 9
Exclude small clusters that include fewer than K patients, K = 3

Clustering approaches

CNMF clustering

consensus non-negative matrix factorization clustering approach (Brunet et al. 2004)

Consensus hierarchical clustering

Resampling-based clustering method (Monti et al. 2003)

Survival analysis

For survival clinical features, the Kaplan-Meier survival curves of tumors with and without gene mutations were plotted and the statistical significance P values were estimated by logrank test (Bland and Altman 2004) using the 'survdiff' function in R

ANOVA analysis

For continuous numerical clinical features, one-way analysis of variance (Howell 2002) was applied to compare the clinical values between tumor subtypes using 'anova' function in R

Chi-square test

For multi-class clinical features (nominal or ordinal), Chi-square tests (Greenwood and Nikulin 1996) were used to estimate the P values using the 'chisq.test' function in R

Fisher's exact test

For binary clinical features, two-tailed Fisher's exact tests (Fisher 1922) were used to estimate the P values using the 'fisher.test' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

In addition to the links below, the full results of the analysis summarized in this report can also be downloaded programmatically using firehose_get, or interactively from either the Broad GDAC website or TCGA Data Coordination Center Portal.

References

[1] Brunet et al., Metagenes and molecular pattern discovery using matrix factorization, PNAS 101(12):4164-9 (2004)

[2] Monti et al., Consensus Clustering: A Resampling-Based Method for Class Discovery and Visualization of Gene Expression Microarray Data, Machine Learning 52(1):91-118 (2003)

[3] Bland and Altman, Statistics notes: The logrank test, BMJ 328(7447):1073 (2004)

[4] Howell, D, Statistical Methods for Psychology. (5th ed.), Duxbury Press:324-5 (2002)

[5] Greenwood and Nikulin, A guide to chi-squared testing, Wiley, New York. ISBN 047155779X (1996)

[6] Fisher, R.A., On the interpretation of chi-square from contingency tables, and the calculation of P, Journal of the Royal Statistical Society 85(1):87-94 (1922)

[7] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)

Made with Nozzle
