Correlation between aggregated molecular cancer subtypes and selected clinical features

Esophageal Carcinoma (Primary solid tumor)

16 April 2014 | analyses__2014_04_16

Maintainer Information

Citation Information

Maintained by TCGA GDAC Team (Broad Institute/MD Anderson Cancer Center/Harvard Medical School)

Cite as Broad Institute TCGA Genome Data Analysis Center (2014): Correlation between aggregated molecular cancer subtypes and selected clinical features. Broad Institute of MIT and Harvard. doi:10.7908/C1C24V1G

Overview

Introduction

This pipeline computes the correlation between cancer subtypes identified by different molecular patterns and selected clinical features.

Summary

Testing the association between subtypes identified by 8 different clustering approaches and 8 clinical features across 57 patients, 7 significant findings detected with P value < 0.05 and Q value < 0.25.

3 subtypes identified in current cancer cohort by 'Copy Number Ratio CNMF subtypes'. These subtypes do not correlate to any clinical features.
3 subtypes identified in current cancer cohort by 'METHLYATION CNMF'. These subtypes correlate to 'AGE'.
CNMF clustering analysis on sequencing-based mRNA expression data identified 4 subtypes that correlate to 'AGE'.
Consensus hierarchical clustering analysis on sequencing-based mRNA expression data identified 3 subtypes that correlate to 'AGE'.
3 subtypes identified in current cancer cohort by 'MIRSEQ CNMF'. These subtypes correlate to 'AGE'.
2 subtypes identified in current cancer cohort by 'MIRSEQ CHIERARCHICAL'. These subtypes correlate to 'AGE'.
4 subtypes identified in current cancer cohort by 'MIRseq Mature CNMF subtypes'. These subtypes correlate to 'AGE'.
2 subtypes identified in current cancer cohort by 'MIRseq Mature cHierClus subtypes'. These subtypes correlate to 'AGE'.

Results

Overview of the results

Table 1. Get Full Table Overview of the association between subtypes identified by 8 different clustering approaches and 8 clinical features. Shown in the table are P values (Q values). Thresholded by P value < 0.05 and Q value < 0.25, 7 significant findings detected.


Clinical Features	Time to Death	AGE	NEOPLASM DISEASESTAGE	PATHOLOGY T STAGE	PATHOLOGY N STAGE	PATHOLOGY M STAGE	GENDER	NUMBERPACKYEARSSMOKED
Statistical Tests	logrank test	t-test	Chi-square test	Chi-square test	Chi-square test	Chi-square test	Fisher's exact test	t-test
Copy Number Ratio CNMF subtypes	0.279 (1.00)	0.216 (1.00)	0.691 (1.00)	0.282 (1.00)	0.444 (1.00)	0.213 (1.00)	0.261 (1.00)	0.109 (1.00)
METHLYATION CNMF	0.99 (1.00)	0.00364 (0.211)	0.103 (1.00)	0.0283 (1.00)	0.0932 (1.00)	0.136 (1.00)	0.292 (1.00)	0.325 (1.00)
RNAseq CNMF subtypes	0.589 (1.00)	0.00019 (0.0114)	0.4 (1.00)	0.0963 (1.00)	0.0278 (1.00)	0.127 (1.00)	0.0963 (1.00)	0.368 (1.00)
RNAseq cHierClus subtypes	0.0845 (1.00)	6.59e-05 (0.00409)	0.169 (1.00)	0.071 (1.00)	0.0252 (1.00)	0.0857 (1.00)	0.121 (1.00)	0.498 (1.00)
MIRSEQ CNMF	0.818 (1.00)	0.000124 (0.00757)	0.214 (1.00)	0.0423 (1.00)	0.0554 (1.00)	0.0648 (1.00)	0.0768 (1.00)	0.347 (1.00)
MIRSEQ CHIERARCHICAL	0.699 (1.00)	1.77e-05 (0.00113)	0.039 (1.00)	0.0152 (0.865)	0.0155 (0.865)	0.0178 (0.943)	0.0338 (1.00)	0.498 (1.00)
MIRseq Mature CNMF subtypes	0.954 (1.00)	0.000265 (0.0156)	0.201 (1.00)	0.0617 (1.00)	0.0916 (1.00)	0.173 (1.00)	0.0572 (1.00)	0.739 (1.00)
MIRseq Mature cHierClus subtypes	0.699 (1.00)	1.77e-05 (0.00113)	0.039 (1.00)	0.0152 (0.865)	0.0155 (0.865)	0.0178 (0.943)	0.0338 (1.00)	0.498 (1.00)

Clustering Approach #1: 'Copy Number Ratio CNMF subtypes'

Table S1. Description of clustering approach #1: 'Copy Number Ratio CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	15	26	15

'Copy Number Ratio CNMF subtypes' versus 'Time to Death'

P value = 0.279 (logrank test), Q value = 1

Table S2. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	53	13	0.0 - 30.7 (1.0)
subtype1	14	3	0.1 - 30.7 (3.3)
subtype2	24	2	0.0 - 29.0 (0.1)
subtype3	15	8	0.1 - 20.1 (3.5)

Figure S1. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'Copy Number Ratio CNMF subtypes' versus 'AGE'

P value = 0.216 (ANOVA), Q value = 1

Table S3. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	56	62.3 (11.8)
subtype1	15	65.5 (12.0)
subtype2	26	59.3 (11.2)
subtype3	15	64.1 (12.3)

Figure S2. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

'Copy Number Ratio CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.691 (Chi-square test), Q value = 1

Table S4. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	16	11	5	8	5	2	1
subtype1	1	1	1	0	4	2	0	4	1	1	0
subtype2	0	1	1	1	9	5	4	3	2	0	0
subtype3	0	1	0	0	3	4	1	1	2	1	1

Figure S3. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.282 (Chi-square test), Q value = 1

Table S5. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	15	34
subtype1	3	2	10
subtype2	1	10	15
subtype3	2	3	9

Figure S4. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.444 (Chi-square test), Q value = 1

Table S6. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	27	19	8
subtype1	8	4	2
subtype2	14	10	2
subtype3	5	5	4

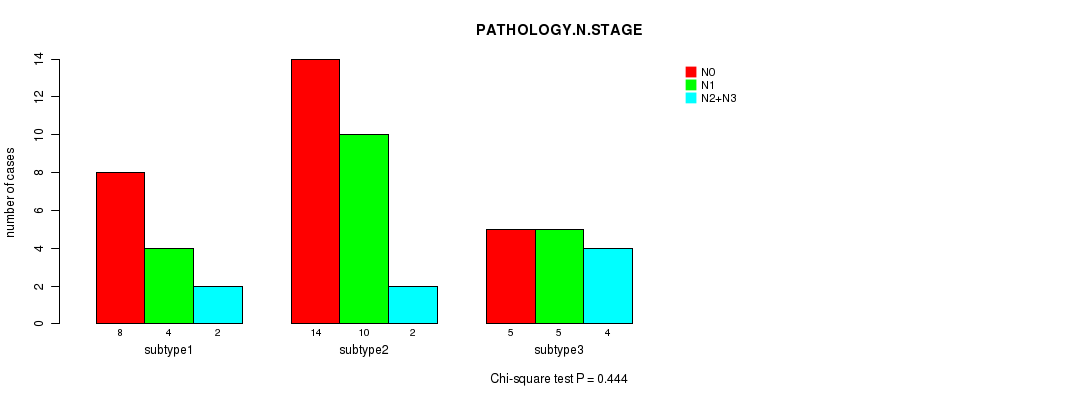

Figure S5. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.213 (Chi-square test), Q value = 1

Table S7. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	42	1	8
subtype1	11	0	3
subtype2	23	0	2
subtype3	8	1	3

Figure S6. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'GENDER'

P value = 0.261 (Fisher's exact test), Q value = 1

Table S8. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	8	48
subtype1	4	11
subtype2	2	24
subtype3	2	13

Figure S7. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'GENDER'

'Copy Number Ratio CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.109 (ANOVA), Q value = 1

Table S9. Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	33	35.6 (16.1)
subtype1	9	44.7 (23.3)
subtype2	14	33.9 (11.4)
subtype3	10	29.7 (11.1)

Figure S8. Get High-res Image Clustering Approach #1: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #2: 'METHLYATION CNMF'

Table S10. Description of clustering approach #2: 'METHLYATION CNMF'

Cluster Labels	1	2	3
Number of samples	17	27	13

'METHLYATION CNMF' versus 'Time to Death'

P value = 0.99 (logrank test), Q value = 1

Table S11. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	54	13	0.0 - 30.7 (1.1)
subtype1	17	7	0.3 - 29.0 (4.9)
subtype2	25	3	0.1 - 20.1 (0.1)
subtype3	12	3	0.0 - 30.7 (0.9)

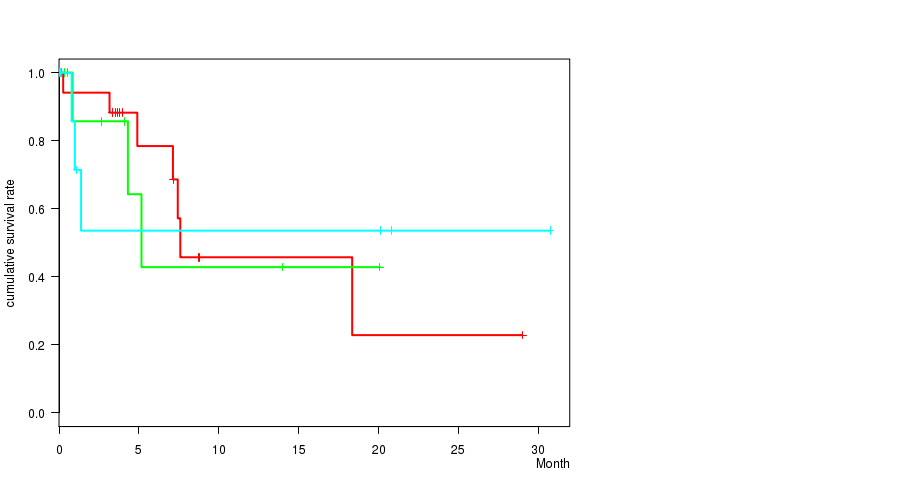

Figure S9. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

'METHLYATION CNMF' versus 'AGE'

P value = 0.00364 (ANOVA), Q value = 0.21

Table S12. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	57	62.1 (11.8)
subtype1	17	69.5 (9.7)
subtype2	27	57.7 (10.5)
subtype3	13	61.5 (12.9)

Figure S10. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

'METHLYATION CNMF' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.103 (Chi-square test), Q value = 1

Table S13. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	16	11	5	8	5	2	1
subtype1	1	2	0	0	1	4	0	1	3	2	1
subtype2	0	1	1	1	11	5	3	3	2	0	0
subtype3	0	0	1	0	4	2	2	4	0	0	0

Figure S11. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.0283 (Chi-square test), Q value = 1

Table S14. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	15	35
subtype1	5	2	9
subtype2	1	9	17
subtype3	0	4	9

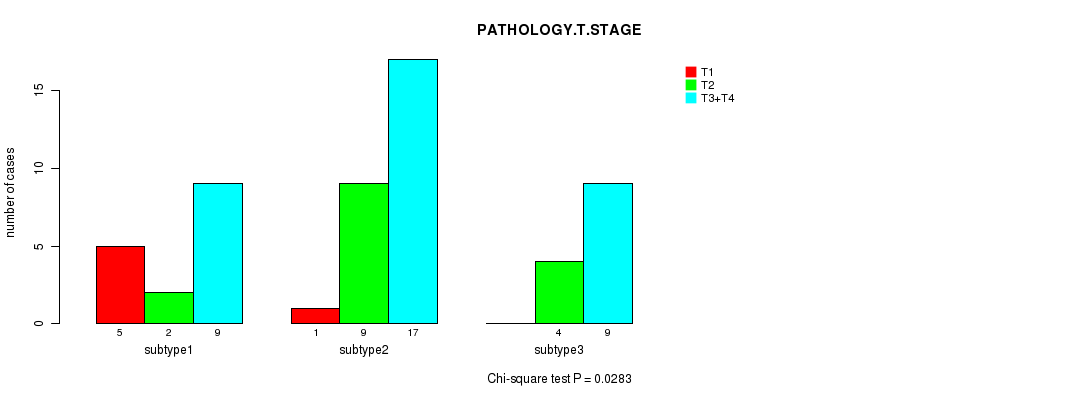

Figure S12. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.0932 (Chi-square test), Q value = 1

Table S15. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	27	20	8
subtype1	4	7	5
subtype2	17	8	2
subtype3	6	5	1

Figure S13. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.136 (Chi-square test), Q value = 1

Table S16. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	43	1	8
subtype1	8	1	4
subtype2	24	0	2
subtype3	11	0	2

Figure S14. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'METHLYATION CNMF' versus 'GENDER'

P value = 0.292 (Fisher's exact test), Q value = 1

Table S17. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	8	49
subtype1	4	13
subtype2	2	25
subtype3	2	11

Figure S15. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #7: 'GENDER'

'METHLYATION CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.325 (ANOVA), Q value = 1

Table S18. Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	33	35.6 (16.1)
subtype1	10	32.4 (19.4)
subtype2	14	33.4 (13.3)
subtype3	9	42.5 (15.9)

Figure S16. Get High-res Image Clustering Approach #2: 'METHLYATION CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #3: 'RNAseq CNMF subtypes'

Table S19. Description of clustering approach #3: 'RNAseq CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	9	21	5	16

'RNAseq CNMF subtypes' versus 'Time to Death'

P value = 0.589 (logrank test), Q value = 1

Table S20. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	49	13	0.0 - 30.7 (0.8)
subtype1	8	1	0.1 - 20.8 (0.2)
subtype2	20	4	0.1 - 20.1 (0.1)
subtype3	5	0	0.0 - 20.1 (0.1)
subtype4	16	8	0.3 - 30.7 (6.0)

Figure S17. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq CNMF subtypes' versus 'AGE'

P value = 0.00019 (ANOVA), Q value = 0.011

Table S21. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	51	62.7 (12.2)
subtype1	9	57.9 (9.9)
subtype2	21	58.7 (11.8)
subtype3	5	55.2 (7.6)
subtype4	16	73.1 (8.7)

Figure S18. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.4 (Chi-square test), Q value = 1

Table S22. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	16	9	5	6	5	1	1
subtype1	0	1	0	0	6	0	0	1	1	0	0
subtype2	0	0	2	1	8	3	4	2	1	0	0
subtype3	0	0	0	0	1	1	1	1	1	0	0
subtype4	1	2	0	0	1	5	0	2	2	1	1

Figure S19. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.0963 (Chi-square test), Q value = 1

Table S23. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	13	31
subtype1	1	2	6
subtype2	0	6	15
subtype3	0	1	4
subtype4	5	4	6

Figure S20. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0278 (Chi-square test), Q value = 1

Table S24. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	27	16	7
subtype1	8	0	1
subtype2	14	6	1
subtype3	1	3	1
subtype4	4	7	4

Figure S21. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.127 (Chi-square test), Q value = 1

Table S25. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	39	1	6
subtype1	8	0	0
subtype2	19	0	2
subtype3	5	0	0
subtype4	7	1	4

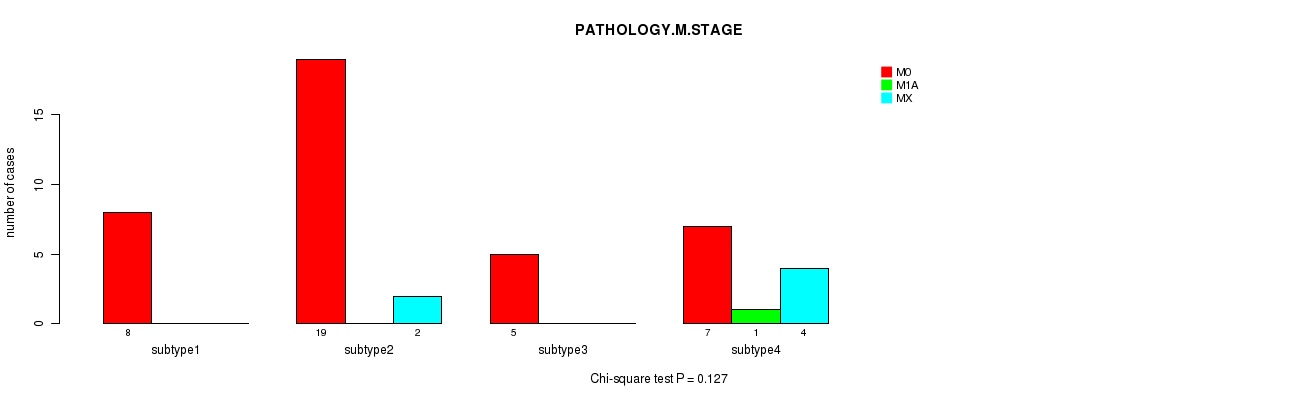

Figure S22. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'RNAseq CNMF subtypes' versus 'GENDER'

P value = 0.0963 (Fisher's exact test), Q value = 1

Table S26. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	44
subtype1	1	8
subtype2	1	20
subtype3	0	5
subtype4	5	11

Figure S23. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'GENDER'

'RNAseq CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.368 (ANOVA), Q value = 1

Table S27. Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	32	35.6 (16.4)
subtype1	5	38.5 (16.0)
subtype2	13	37.5 (16.9)
subtype3	4	43.8 (22.9)
subtype4	10	28.4 (12.6)

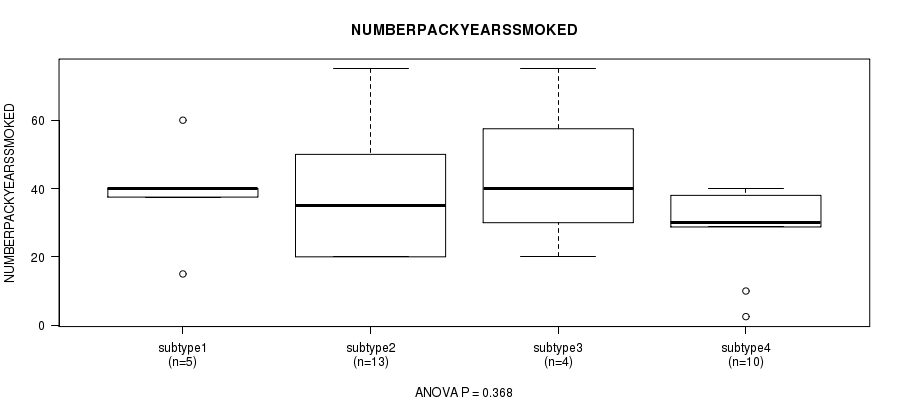

Figure S24. Get High-res Image Clustering Approach #3: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #4: 'RNAseq cHierClus subtypes'

Table S28. Description of clustering approach #4: 'RNAseq cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	17	3	31

'RNAseq cHierClus subtypes' versus 'Time to Death'

P value = 0.0845 (logrank test), Q value = 1

Table S29. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	49	13	0.0 - 30.7 (0.8)
subtype1	17	8	0.3 - 30.7 (4.9)
subtype2	3	1	0.1 - 1.0 (0.1)
subtype3	29	4	0.0 - 20.8 (0.1)

Figure S25. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq cHierClus subtypes' versus 'AGE'

P value = 6.59e-05 (ANOVA), Q value = 0.0041

Table S30. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	51	62.7 (12.2)
subtype1	17	72.4 (8.9)
subtype2	3	52.3 (3.5)
subtype3	31	58.4 (11.1)

Figure S26. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.169 (Chi-square test), Q value = 1

Table S31. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	16	9	5	6	5	1	1
subtype1	1	2	0	0	1	5	0	2	3	1	1
subtype2	0	0	0	0	3	0	0	0	0	0	0
subtype3	0	1	2	1	12	4	5	4	2	0	0

Figure S27. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

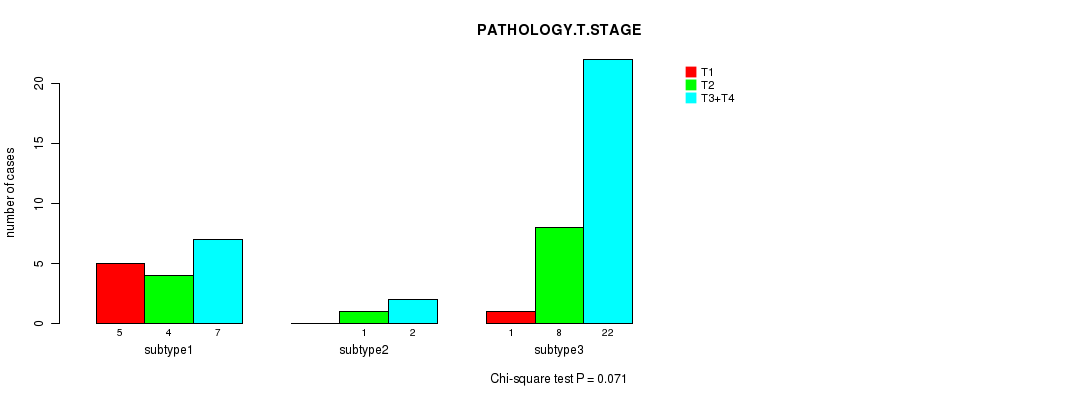

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.071 (Chi-square test), Q value = 1

Table S32. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	13	31
subtype1	5	4	7
subtype2	0	1	2
subtype3	1	8	22

Figure S28. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0252 (Chi-square test), Q value = 1

Table S33. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	27	16	7
subtype1	4	7	5
subtype2	3	0	0
subtype3	20	9	2

Figure S29. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.0857 (Chi-square test), Q value = 1

Table S34. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	39	1	6
subtype1	8	1	4
subtype2	3	0	0
subtype3	28	0	2

Figure S30. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'RNAseq cHierClus subtypes' versus 'GENDER'

P value = 0.121 (Fisher's exact test), Q value = 1

Table S35. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	44
subtype1	5	12
subtype2	0	3
subtype3	2	29

Figure S31. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'RNAseq cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.498 (ANOVA), Q value = 1

Table S36. Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	32	35.6 (16.4)
subtype1	11	32.7 (18.4)
subtype2	2	37.5 (31.8)
subtype3	19	37.1 (14.4)

Figure S32. Get High-res Image Clustering Approach #4: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #5: 'MIRSEQ CNMF'

Table S37. Description of clustering approach #5: 'MIRSEQ CNMF'

Cluster Labels	1	2	3
Number of samples	24	11	17

'MIRSEQ CNMF' versus 'Time to Death'

P value = 0.818 (logrank test), Q value = 1

Table S38. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	49	13	0.0 - 30.7 (1.0)
subtype1	22	3	0.0 - 20.1 (0.1)
subtype2	10	2	0.1 - 20.8 (0.2)
subtype3	17	8	0.3 - 30.7 (4.9)

Figure S33. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CNMF' versus 'AGE'

P value = 0.000124 (ANOVA), Q value = 0.0076

Table S39. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	52	62.9 (12.0)
subtype1	24	58.7 (10.8)
subtype2	11	57.7 (10.6)
subtype3	17	72.4 (8.9)

Figure S34. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

'MIRSEQ CNMF' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.214 (Chi-square test), Q value = 1

Table S40. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	15	10	5	7	5	1	1
subtype1	0	1	2	1	10	4	3	2	1	0	0
subtype2	0	0	0	0	4	1	2	3	1	0	0
subtype3	1	2	0	0	1	5	0	2	3	1	1

Figure S35. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.0423 (Chi-square test), Q value = 1

Table S41. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	14	31
subtype1	1	8	15
subtype2	0	2	9
subtype3	5	4	7

Figure S36. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.0554 (Chi-square test), Q value = 1

Table S42. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	26	18	7
subtype1	16	7	1
subtype2	6	4	1
subtype3	4	7	5

Figure S37. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.0648 (Chi-square test), Q value = 1

Table S43. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	40	1	6
subtype1	21	0	2
subtype2	11	0	0
subtype3	8	1	4

Figure S38. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRSEQ CNMF' versus 'GENDER'

P value = 0.0768 (Fisher's exact test), Q value = 1

Table S44. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	45
subtype1	2	22
subtype2	0	11
subtype3	5	12

Figure S39. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #7: 'GENDER'

'MIRSEQ CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.347 (ANOVA), Q value = 1

Table S45. Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	31	36.3 (16.2)
subtype1	15	35.9 (15.9)
subtype2	5	45.5 (9.4)
subtype3	11	32.7 (18.4)

Figure S40. Get High-res Image Clustering Approach #5: 'MIRSEQ CNMF' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #6: 'MIRSEQ CHIERARCHICAL'

Table S46. Description of clustering approach #6: 'MIRSEQ CHIERARCHICAL'

Cluster Labels	1	2	3
Number of samples	1	17	34

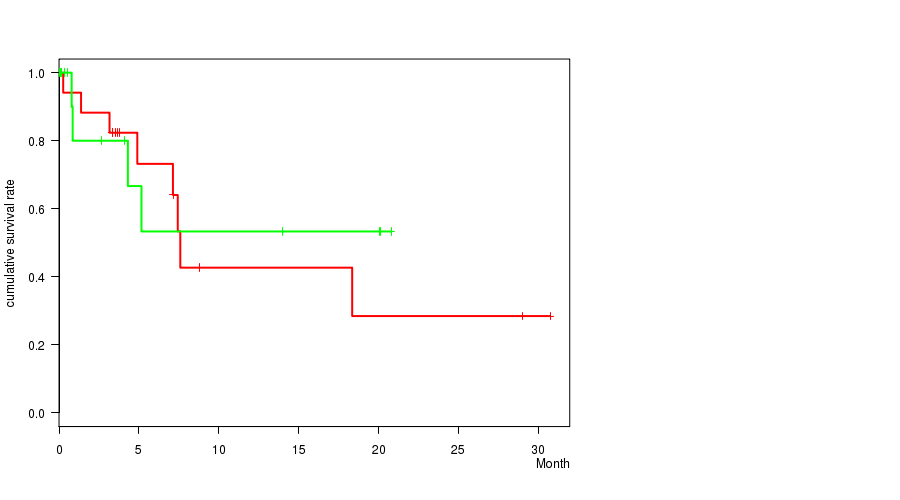

'MIRSEQ CHIERARCHICAL' versus 'Time to Death'

P value = 0.699 (logrank test), Q value = 1

Table S47. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	48	12	0.0 - 30.7 (1.1)
subtype2	17	8	0.3 - 30.7 (4.9)
subtype3	31	4	0.0 - 20.8 (0.1)

Figure S41. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CHIERARCHICAL' versus 'AGE'

P value = 1.77e-05 (t-test), Q value = 0.0011

Table S48. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	51	63.1 (12.0)
subtype2	17	72.4 (8.9)
subtype3	34	58.4 (10.7)

Figure S42. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

'MIRSEQ CHIERARCHICAL' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.039 (Chi-square test), Q value = 1

Table S49. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	14	10	5	7	5	1	1
subtype2	1	2	0	0	1	5	0	2	3	1	1
subtype3	0	1	2	1	13	5	5	5	2	0	0

Figure S43. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.T.STAGE'

P value = 0.0152 (Chi-square test), Q value = 0.86

Table S50. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	14	30
subtype2	5	4	7
subtype3	1	10	23

Figure S44. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.N.STAGE'

P value = 0.0155 (Chi-square test), Q value = 0.86

Table S51. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	25	18	7
subtype2	4	7	5
subtype3	21	11	2

Figure S45. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

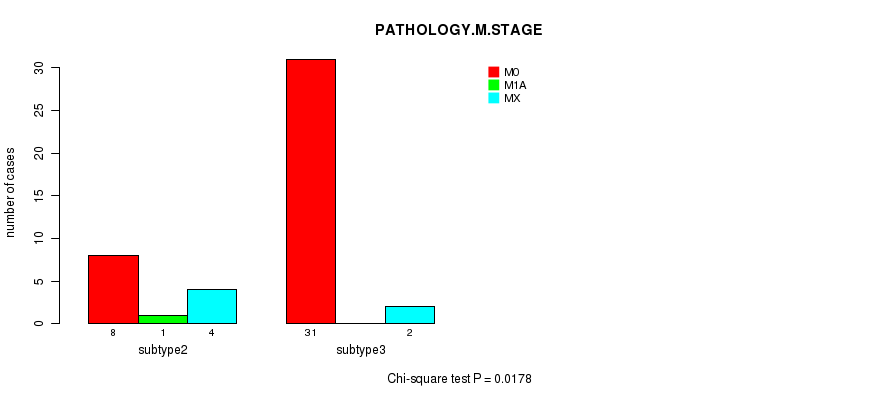

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.M.STAGE'

P value = 0.0178 (Chi-square test), Q value = 0.94

Table S52. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	39	1	6
subtype2	8	1	4
subtype3	31	0	2

Figure S46. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

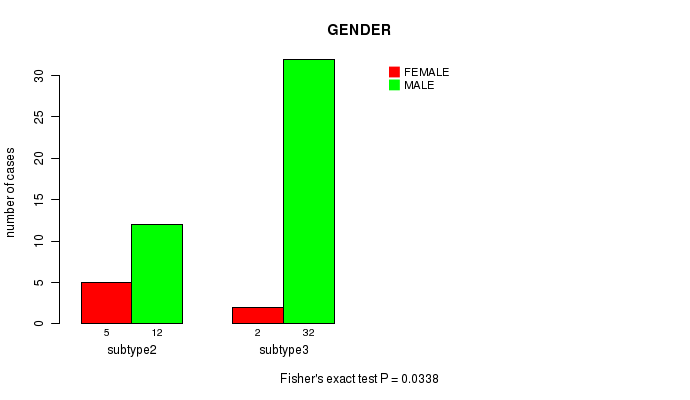

'MIRSEQ CHIERARCHICAL' versus 'GENDER'

P value = 0.0338 (Fisher's exact test), Q value = 1

Table S53. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	44
subtype2	5	12
subtype3	2	32

Figure S47. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'GENDER'

'MIRSEQ CHIERARCHICAL' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.498 (t-test), Q value = 1

Table S54. Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	30	35.5 (15.8)
subtype2	11	32.7 (18.4)
subtype3	19	37.1 (14.4)

Figure S48. Get High-res Image Clustering Approach #6: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #7: 'MIRseq Mature CNMF subtypes'

Table S55. Description of clustering approach #7: 'MIRseq Mature CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	10	5	21	16

'MIRseq Mature CNMF subtypes' versus 'Time to Death'

P value = 0.954 (logrank test), Q value = 1

Table S56. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	49	13	0.0 - 30.7 (1.0)
subtype1	9	1	0.1 - 20.8 (0.1)
subtype2	5	1	0.1 - 20.1 (3.7)
subtype3	19	3	0.0 - 20.1 (0.1)
subtype4	16	8	0.3 - 30.7 (6.0)

Figure S49. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

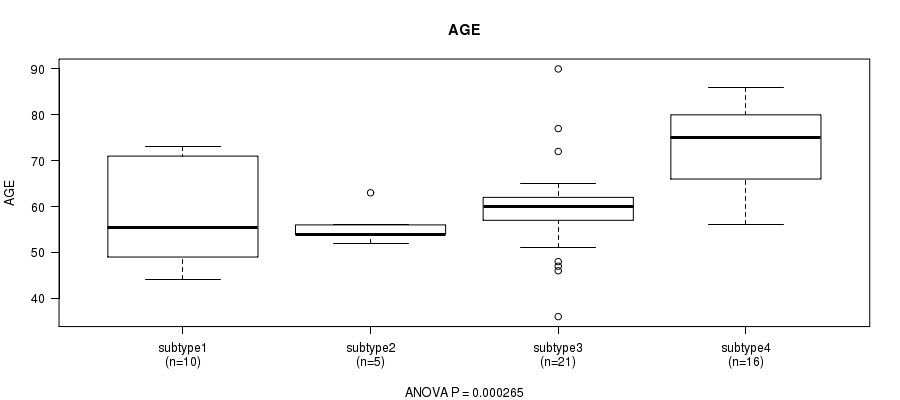

'MIRseq Mature CNMF subtypes' versus 'AGE'

P value = 0.000265 (ANOVA), Q value = 0.016

Table S57. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	52	62.9 (12.0)
subtype1	10	57.7 (11.1)
subtype2	5	55.8 (4.3)
subtype3	21	59.5 (11.3)
subtype4	16	72.9 (8.8)

Figure S50. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.201 (Chi-square test), Q value = 1

Table S58. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	15	10	5	7	5	1	1
subtype1	0	0	0	0	3	1	2	4	0	0	0
subtype2	0	1	0	0	2	2	0	0	0	0	0
subtype3	0	0	2	1	9	3	3	1	2	0	0
subtype4	1	2	0	0	1	4	0	2	3	1	1

Figure S51. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.0617 (Chi-square test), Q value = 1

Table S59. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	14	31
subtype1	0	2	8
subtype2	2	1	2
subtype3	0	7	14
subtype4	4	4	7

Figure S52. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0916 (Chi-square test), Q value = 1

Table S60. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	26	18	7
subtype1	5	5	0
subtype2	4	1	0
subtype3	13	6	2
subtype4	4	6	5

Figure S53. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.173 (Chi-square test), Q value = 1

Table S61. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	40	1	6
subtype1	10	0	0
subtype2	3	0	0
subtype3	19	0	2
subtype4	8	1	4

Figure S54. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRseq Mature CNMF subtypes' versus 'GENDER'

P value = 0.0572 (Fisher's exact test), Q value = 1

Table S62. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	45
subtype1	0	10
subtype2	1	4
subtype3	1	20
subtype4	5	11

Figure S55. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'GENDER'

'MIRseq Mature CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.739 (ANOVA), Q value = 1

Table S63. Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	31	36.3 (16.2)
subtype1	5	39.7 (6.8)
subtype2	3	43.3 (15.3)
subtype3	12	36.4 (17.7)
subtype4	11	32.7 (18.4)

Figure S56. Get High-res Image Clustering Approach #7: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Clustering Approach #8: 'MIRseq Mature cHierClus subtypes'

Table S64. Description of clustering approach #8: 'MIRseq Mature cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	1	17	34

'MIRseq Mature cHierClus subtypes' versus 'Time to Death'

P value = 0.699 (logrank test), Q value = 1

Table S65. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Month
ALL	48	12	0.0 - 30.7 (1.1)
subtype2	17	8	0.3 - 30.7 (4.9)
subtype3	31	4	0.0 - 20.8 (0.1)

Figure S57. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'MIRseq Mature cHierClus subtypes' versus 'AGE'

P value = 1.77e-05 (t-test), Q value = 0.0011

Table S66. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	51	63.1 (12.0)
subtype2	17	72.4 (8.9)
subtype3	34	58.4 (10.7)

Figure S58. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.039 (Chi-square test), Q value = 1

Table S67. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE II	STAGE IIA	STAGE IIB	STAGE III	STAGE IIIA	STAGE IIIB	STAGE IIIC	STAGE IV
ALL	1	3	2	1	14	10	5	7	5	1	1
subtype2	1	2	0	0	1	5	0	2	3	1	1
subtype3	0	1	2	1	13	5	5	5	2	0	0

Figure S59. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.0152 (Chi-square test), Q value = 0.86

Table S68. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3+T4
ALL	6	14	30
subtype2	5	4	7
subtype3	1	10	23

Figure S60. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0155 (Chi-square test), Q value = 0.86

Table S69. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	25	18	7
subtype2	4	7	5
subtype3	21	11	2

Figure S61. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.0178 (Chi-square test), Q value = 0.94

Table S70. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1A	MX
ALL	39	1	6
subtype2	8	1	4
subtype3	31	0	2

Figure S62. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'GENDER'

P value = 0.0338 (Fisher's exact test), Q value = 1

Table S71. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	7	44
subtype2	5	12
subtype3	2	32

Figure S63. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'MIRseq Mature cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.498 (t-test), Q value = 1

Table S72. Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	30	35.5 (15.8)
subtype2	11	32.7 (18.4)
subtype3	19	37.1 (14.4)

Figure S64. Get High-res Image Clustering Approach #8: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'NUMBERPACKYEARSSMOKED'

Methods & Data

Input

Cluster data file = ESCA-TP.mergedcluster.txt
Clinical data file = ESCA-TP.merged_data.txt
Number of patients = 57
Number of clustering approaches = 8
Number of selected clinical features = 8
Exclude small clusters that include fewer than K patients, K = 3

Clustering approaches

CNMF clustering

consensus non-negative matrix factorization clustering approach (Brunet et al. 2004)

Consensus hierarchical clustering

Resampling-based clustering method (Monti et al. 2003)

Survival analysis

For survival clinical features, the Kaplan-Meier survival curves of tumors with and without gene mutations were plotted and the statistical significance P values were estimated by logrank test (Bland and Altman 2004) using the 'survdiff' function in R

ANOVA analysis

For continuous numerical clinical features, one-way analysis of variance (Howell 2002) was applied to compare the clinical values between tumor subtypes using 'anova' function in R

Chi-square test

For multi-class clinical features (nominal or ordinal), Chi-square tests (Greenwood and Nikulin 1996) were used to estimate the P values using the 'chisq.test' function in R

Fisher's exact test

For binary clinical features, two-tailed Fisher's exact tests (Fisher 1922) were used to estimate the P values using the 'fisher.test' function in R

Student's t-test analysis

For continuous numerical clinical features, two-tailed Student's t test with unequal variance (Lehmann and Romano 2005) was applied to compare the clinical values between two tumor subtypes using 't.test' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

In addition to the links below, the full results of the analysis summarized in this report can also be downloaded programmatically using firehose_get, or interactively from either the Broad GDAC website or TCGA Data Coordination Center Portal.

References

[1] Brunet et al., Metagenes and molecular pattern discovery using matrix factorization, PNAS 101(12):4164-9 (2004)

[2] Monti et al., Consensus Clustering: A Resampling-Based Method for Class Discovery and Visualization of Gene Expression Microarray Data, Machine Learning 52(1):91-118 (2003)

[3] Bland and Altman, Statistics notes: The logrank test, BMJ 328(7447):1073 (2004)

[4] Howell, D, Statistical Methods for Psychology. (5th ed.), Duxbury Press:324-5 (2002)

[5] Greenwood and Nikulin, A guide to chi-squared testing, Wiley, New York. ISBN 047155779X (1996)

[6] Fisher, R.A., On the interpretation of chi-square from contingency tables, and the calculation of P, Journal of the Royal Statistical Society 85(1):87-94 (1922)

[7] Lehmann and Romano, Testing Statistical Hypotheses (3E ed.), New York: Springer. ISBN 0387988645 (2005)

[8] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)

Made with Nozzle
