Correlation between aggregated molecular cancer subtypes and selected clinical features

Lung Adenocarcinoma (Primary solid tumor)

15 July 2014 | analyses__2014_07_15

Maintainer Information

Citation Information

Maintained by TCGA GDAC Team (Broad Institute/MD Anderson Cancer Center/Harvard Medical School)

Cite as Broad Institute TCGA Genome Data Analysis Center (2014): Correlation between aggregated molecular cancer subtypes and selected clinical features. Broad Institute of MIT and Harvard. doi:10.7908/C1Z31XF5

Overview

Introduction

This pipeline computes the correlation between cancer subtypes identified by different molecular patterns and selected clinical features.

Summary

Testing the association between subtypes identified by 12 different clustering approaches and 14 clinical features across 472 patients, 13 significant findings detected with P value < 0.05 and Q value < 0.25.

CNMF clustering analysis on array-based mRNA expression data identified 4 subtypes that do not correlate to any clinical features.
Consensus hierarchical clustering analysis on array-based mRNA expression data identified 3 subtypes that do not correlate to any clinical features.
3 subtypes identified in current cancer cohort by 'Copy Number Ratio CNMF subtypes'. These subtypes do not correlate to any clinical features.
4 subtypes identified in current cancer cohort by 'METHLYATION CNMF'. These subtypes correlate to 'GENDER'.
CNMF clustering analysis on RPPA data identified 3 subtypes that do not correlate to any clinical features.
Consensus hierarchical clustering analysis on RPPA data identified 3 subtypes that correlate to 'AGE'.
CNMF clustering analysis on sequencing-based mRNA expression data identified 5 subtypes that correlate to 'AGE' and 'GENDER'.
Consensus hierarchical clustering analysis on sequencing-based mRNA expression data identified 9 subtypes that correlate to 'AGE', 'NEOPLASM.DISEASESTAGE', 'PATHOLOGY.T.STAGE', 'GENDER', and 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRSEQ CNMF'. These subtypes do not correlate to any clinical features.
6 subtypes identified in current cancer cohort by 'MIRSEQ CHIERARCHICAL'. These subtypes correlate to 'GENDER'.
3 subtypes identified in current cancer cohort by 'MIRseq Mature CNMF subtypes'. These subtypes correlate to 'HISTOLOGICAL.TYPE'.
3 subtypes identified in current cancer cohort by 'MIRseq Mature cHierClus subtypes'. These subtypes correlate to 'AGE' and 'GENDER'.

Results

Overview of the results

Table 1. Get Full Table Overview of the association between subtypes identified by 12 different clustering approaches and 14 clinical features. Shown in the table are P values (Q values). Thresholded by P value < 0.05 and Q value < 0.25, 13 significant findings detected.


Clinical Features	Statistical Tests	mRNA CNMF subtypes	mRNA cHierClus subtypes	Copy Number Ratio CNMF subtypes	METHLYATION CNMF	RPPA CNMF subtypes	RPPA cHierClus subtypes	RNAseq CNMF subtypes	RNAseq cHierClus subtypes	MIRSEQ CNMF	MIRSEQ CHIERARCHICAL	MIRseq Mature CNMF subtypes	MIRseq Mature cHierClus subtypes
Time to Death	logrank test	0.676 (1.00)	0.762 (1.00)	0.677 (1.00)	0.937 (1.00)	0.779 (1.00)	0.138 (1.00)	0.747 (1.00)	0.145 (1.00)	0.656 (1.00)	0.829 (1.00)	0.0745 (1.00)	0.933 (1.00)
AGE	Kruskal-Wallis (anova)	0.65 (1.00)	0.513 (1.00)	0.00676 (0.973)	0.139 (1.00)	0.0274 (1.00)	0.00121 (0.187)	0.00083 (0.13)	0.000406 (0.065)	0.0347 (1.00)	0.0566 (1.00)	0.00513 (0.744)	2.61e-05 (0.00428)
NEOPLASM DISEASESTAGE	Fisher's exact test	0.0462 (1.00)	0.036 (1.00)	0.771 (1.00)	0.154 (1.00)	0.665 (1.00)	0.839 (1.00)	0.00448 (0.659)	0.00106 (0.165)	0.0814 (1.00)	0.7 (1.00)	0.576 (1.00)	0.0589 (1.00)
PATHOLOGY T STAGE	Fisher's exact test	0.511 (1.00)	0.275 (1.00)	0.499 (1.00)	0.0287 (1.00)	0.27 (1.00)	0.893 (1.00)	0.00272 (0.411)	0.0002 (0.0324)	0.0812 (1.00)	0.299 (1.00)	0.0275 (1.00)	0.00343 (0.508)
PATHOLOGY N STAGE	Fisher's exact test	0.485 (1.00)	0.455 (1.00)	0.534 (1.00)	0.77 (1.00)	0.313 (1.00)	0.291 (1.00)	0.0103 (1.00)	0.0205 (1.00)	0.194 (1.00)	0.689 (1.00)	0.277 (1.00)	0.407 (1.00)
PATHOLOGY M STAGE	Fisher's exact test	0.506 (1.00)	0.494 (1.00)	0.829 (1.00)	0.278 (1.00)	0.736 (1.00)	0.954 (1.00)	0.499 (1.00)	0.173 (1.00)	0.556 (1.00)	0.641 (1.00)	0.658 (1.00)	0.99 (1.00)
GENDER	Fisher's exact test	0.272 (1.00)	0.668 (1.00)	0.00279 (0.418)	0.00043 (0.0684)	0.193 (1.00)	0.0807 (1.00)	0.00054 (0.0853)	1e-05 (0.00166)	0.665 (1.00)	0.00024 (0.0386)	0.188 (1.00)	4e-05 (0.00652)
KARNOFSKY PERFORMANCE SCORE	Kruskal-Wallis (anova)			0.946 (1.00)	0.435 (1.00)	0.11 (1.00)	0.421 (1.00)	0.024 (1.00)	0.173 (1.00)	0.963 (1.00)	0.499 (1.00)	0.878 (1.00)	0.508 (1.00)
HISTOLOGICAL TYPE	Fisher's exact test	0.432 (1.00)	0.394 (1.00)	0.274 (1.00)	0.002 (0.306)	0.0428 (1.00)	0.044 (1.00)	0.00471 (0.688)	2e-05 (0.0033)	0.00223 (0.339)	0.092 (1.00)	0.00115 (0.178)	0.0106 (1.00)
RADIATIONS RADIATION REGIMENINDICATION	Fisher's exact test	1 (1.00)	1 (1.00)	0.274 (1.00)	0.213 (1.00)	0.112 (1.00)	0.0867 (1.00)	0.594 (1.00)	0.0788 (1.00)	0.868 (1.00)	0.983 (1.00)	0.299 (1.00)	0.802 (1.00)
NUMBERPACKYEARSSMOKED	Kruskal-Wallis (anova)	0.46 (1.00)	0.362 (1.00)	0.018 (1.00)	0.00296 (0.44)	0.233 (1.00)	0.154 (1.00)	0.0984 (1.00)	0.00711 (1.00)	0.081 (1.00)	0.00763 (1.00)	0.024 (1.00)	0.0363 (1.00)
COMPLETENESS OF RESECTION	Fisher's exact test	0.533 (1.00)	0.458 (1.00)	0.949 (1.00)	0.87 (1.00)	0.272 (1.00)	0.398 (1.00)	0.726 (1.00)	0.383 (1.00)	0.739 (1.00)	1 (1.00)	0.556 (1.00)	0.401 (1.00)
RACE	Fisher's exact test	0.0779 (1.00)	0.01 (1.00)	0.679 (1.00)	0.4 (1.00)	0.4 (1.00)	0.293 (1.00)	0.775 (1.00)	0.421 (1.00)	0.259 (1.00)	0.25 (1.00)	0.458 (1.00)	0.548 (1.00)
ETHNICITY	Fisher's exact test	1 (1.00)	1 (1.00)	0.115 (1.00)	0.299 (1.00)	0.194 (1.00)	0.0667 (1.00)	0.979 (1.00)	0.102 (1.00)	0.415 (1.00)	0.392 (1.00)	0.119 (1.00)	0.354 (1.00)

Clustering Approach #1: 'mRNA CNMF subtypes'

Table S1. Description of clustering approach #1: 'mRNA CNMF subtypes'

Cluster Labels	1	2	3	4
Number of samples	5	9	12	6

'mRNA CNMF subtypes' versus 'Time to Death'

P value = 0.676 (logrank test), Q value = 1

Table S2. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	30	5	14.0 - 1728.0 (731.5)
subtype1	4	0	182.0 - 1479.0 (745.5)
subtype2	8	1	225.0 - 1728.0 (1221.5)
subtype3	12	2	14.0 - 1367.0 (500.0)
subtype4	6	2	610.0 - 1375.0 (939.5)

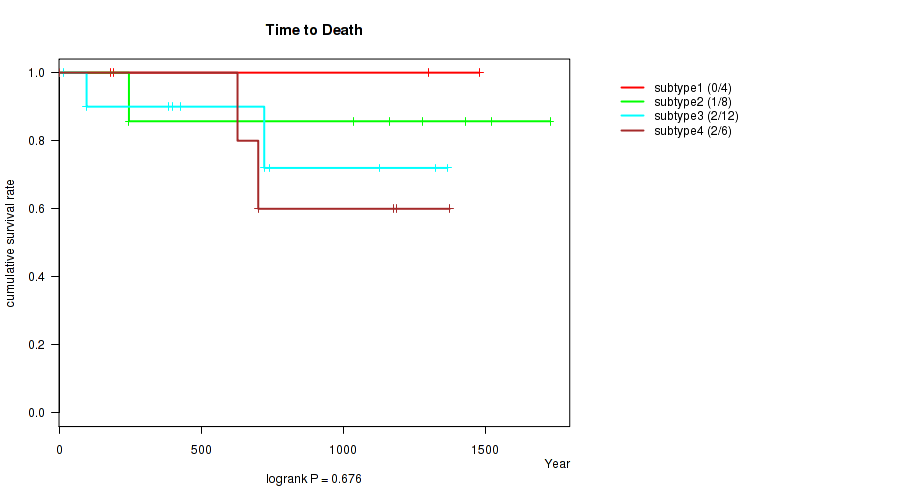

Figure S1. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

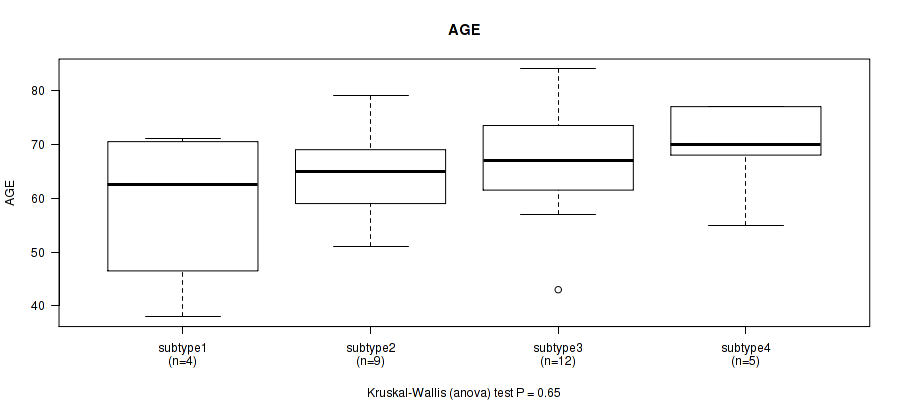

'mRNA CNMF subtypes' versus 'AGE'

P value = 0.65 (Kruskal-Wallis (anova)), Q value = 1

Table S3. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	30	65.7 (10.8)
subtype1	4	58.5 (15.5)
subtype2	9	65.0 (9.1)
subtype3	12	67.1 (11.1)
subtype4	5	69.4 (9.0)

Figure S2. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #2: 'AGE'

'mRNA CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.0462 (Fisher's exact test), Q value = 1

Table S4. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IV
ALL	12	11	1	3	3	2
subtype1	3	0	0	1	0	1
subtype2	4	4	0	0	1	0
subtype3	3	7	0	1	0	1
subtype4	2	0	1	1	2	0

Figure S3. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'mRNA CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.511 (Fisher's exact test), Q value = 1

Table S5. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3
ALL	12	19	1
subtype1	3	2	0
subtype2	4	4	1
subtype3	4	8	0
subtype4	1	5	0

Figure S4. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

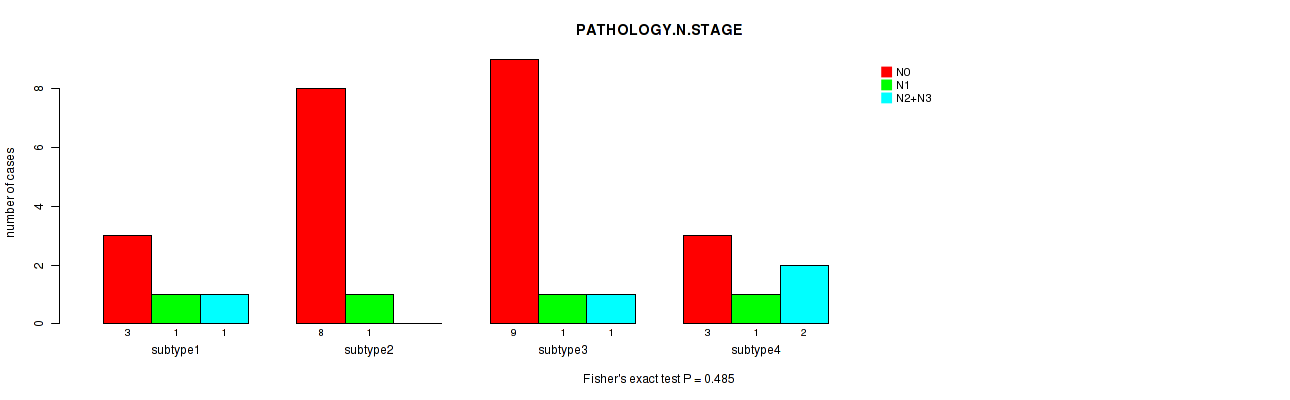

'mRNA CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.485 (Fisher's exact test), Q value = 1

Table S6. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	23	4	4
subtype1	3	1	1
subtype2	8	1	0
subtype3	9	1	1
subtype4	3	1	2

Figure S5. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'mRNA CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.506 (Fisher's exact test), Q value = 1

Table S7. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1
ALL	30	2
subtype1	4	1
subtype2	9	0
subtype3	11	1
subtype4	6	0

Figure S6. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

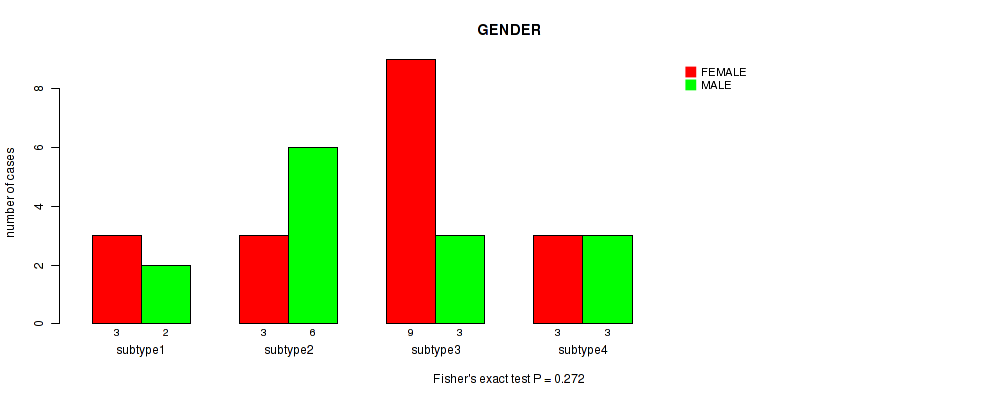

'mRNA CNMF subtypes' versus 'GENDER'

P value = 0.272 (Fisher's exact test), Q value = 1

Table S8. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	18	14
subtype1	3	2
subtype2	3	6
subtype3	9	3
subtype4	3	3

Figure S7. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #7: 'GENDER'

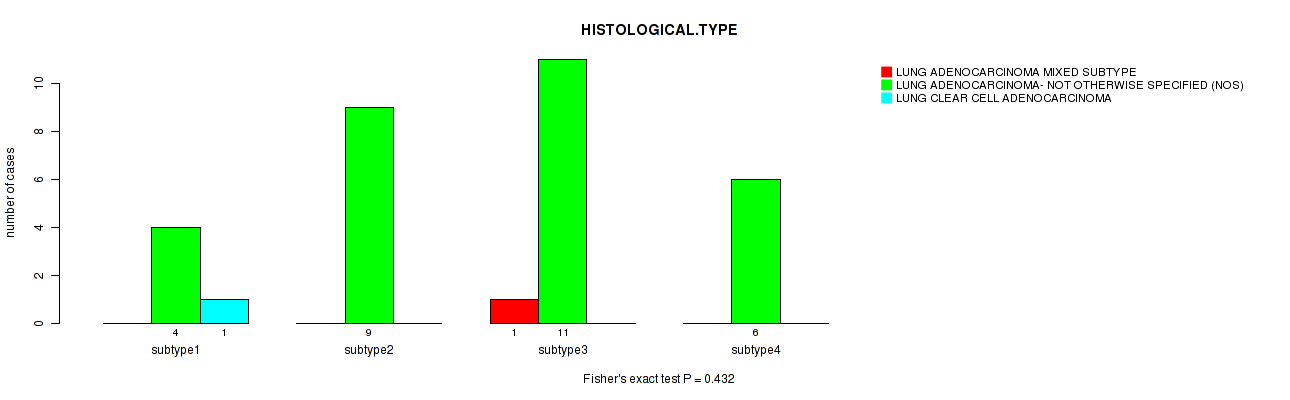

'mRNA CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.432 (Fisher's exact test), Q value = 1

Table S9. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG CLEAR CELL ADENOCARCINOMA
ALL	1	30	1
subtype1	0	4	1
subtype2	0	9	0
subtype3	1	11	0
subtype4	0	6	0

Figure S8. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'mRNA CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 1 (Fisher's exact test), Q value = 1

Table S10. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	1	31
subtype1	0	5
subtype2	0	9
subtype3	1	11
subtype4	0	6

Figure S9. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'mRNA CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.46 (Kruskal-Wallis (anova)), Q value = 1

Table S11. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	20	41.1 (15.0)
subtype1	2	29.0 (12.7)
subtype2	9	47.0 (15.5)
subtype3	6	37.0 (13.1)
subtype4	3	40.0 (17.3)

Figure S10. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'mRNA CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.533 (Fisher's exact test), Q value = 1

Table S12. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	26	1	2
subtype1	3	0	1
subtype2	7	1	0
subtype3	10	0	1
subtype4	6	0	0

Figure S11. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

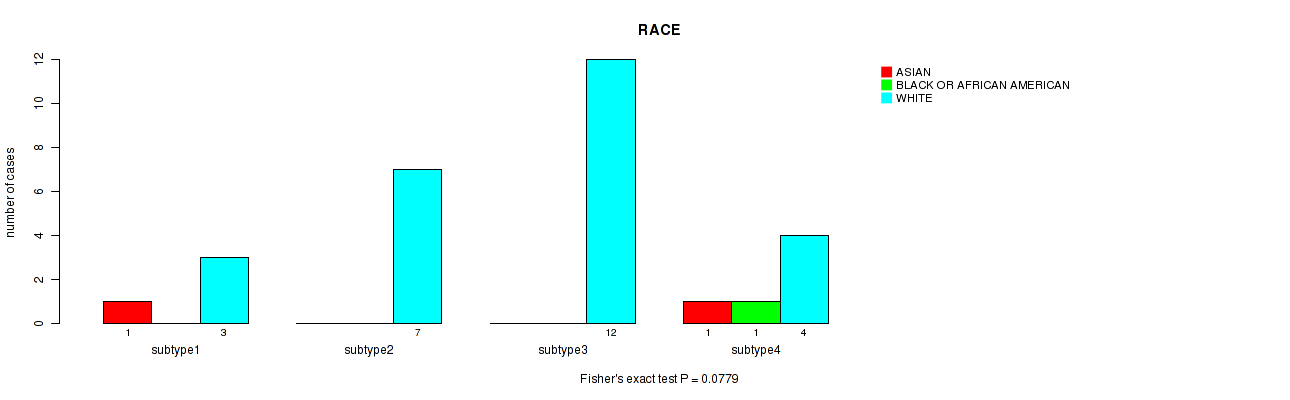

'mRNA CNMF subtypes' versus 'RACE'

P value = 0.0779 (Fisher's exact test), Q value = 1

Table S13. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	2	1	26
subtype1	1	0	3
subtype2	0	0	7
subtype3	0	0	12
subtype4	1	1	4

Figure S12. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #13: 'RACE'

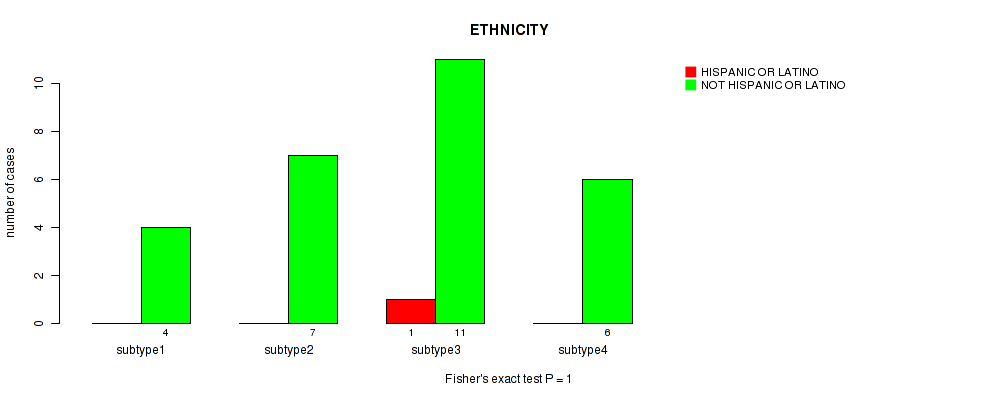

'mRNA CNMF subtypes' versus 'ETHNICITY'

P value = 1 (Fisher's exact test), Q value = 1

Table S14. Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	1	28
subtype1	0	4
subtype2	0	7
subtype3	1	11
subtype4	0	6

Figure S13. Get High-res Image Clustering Approach #1: 'mRNA CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #2: 'mRNA cHierClus subtypes'

Table S15. Description of clustering approach #2: 'mRNA cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	14	11	7

'mRNA cHierClus subtypes' versus 'Time to Death'

P value = 0.762 (logrank test), Q value = 1

Table S16. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	30	5	14.0 - 1728.0 (731.5)
subtype1	13	2	14.0 - 1429.0 (573.0)
subtype2	10	1	182.0 - 1728.0 (1099.5)
subtype3	7	2	610.0 - 1479.0 (1178.0)

Figure S14. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'mRNA cHierClus subtypes' versus 'AGE'

P value = 0.513 (Kruskal-Wallis (anova)), Q value = 1

Table S17. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	30	65.7 (10.8)
subtype1	14	66.7 (10.5)
subtype2	11	62.7 (12.0)
subtype3	5	69.4 (9.0)

Figure S15. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

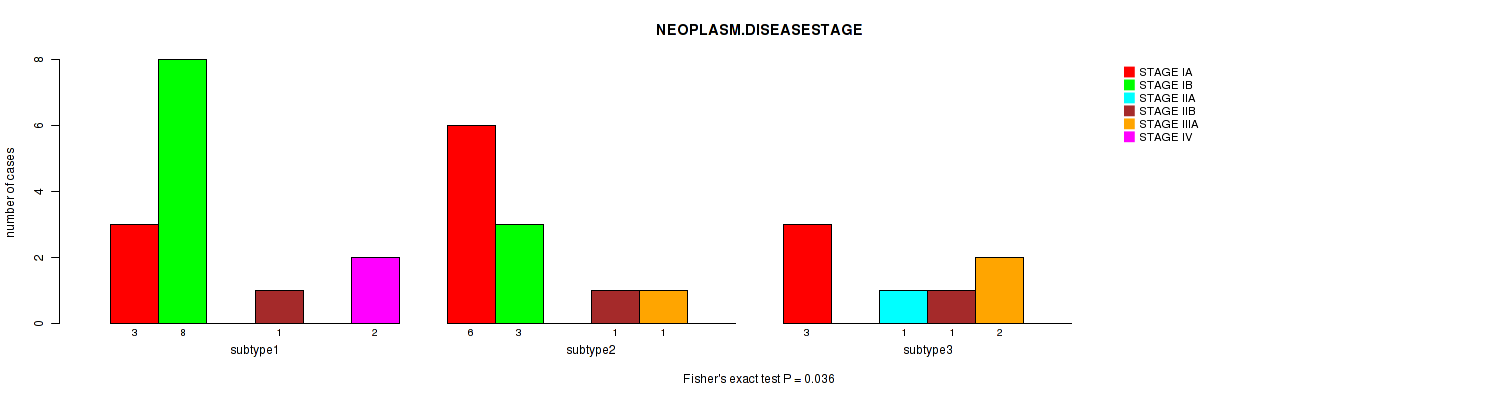

'mRNA cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.036 (Fisher's exact test), Q value = 1

Table S18. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IV
ALL	12	11	1	3	3	2
subtype1	3	8	0	1	0	2
subtype2	6	3	0	1	1	0
subtype3	3	0	1	1	2	0

Figure S16. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

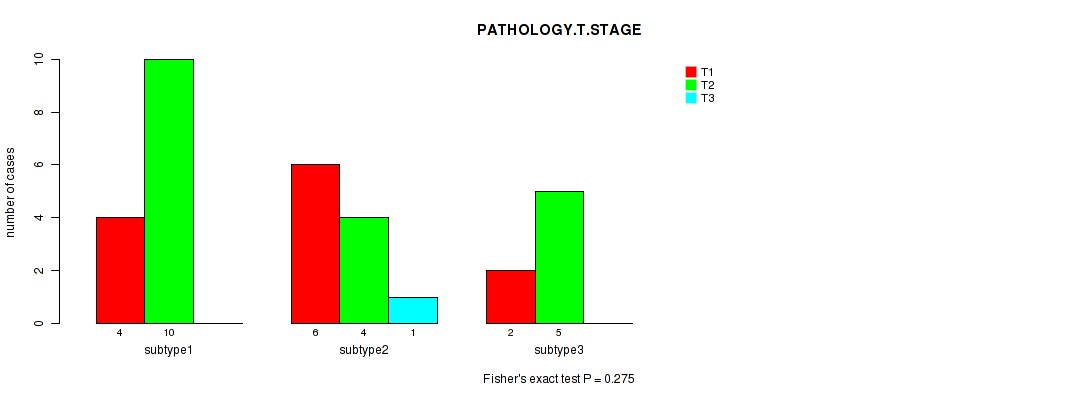

'mRNA cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.275 (Fisher's exact test), Q value = 1

Table S19. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3
ALL	12	19	1
subtype1	4	10	0
subtype2	6	4	1
subtype3	2	5	0

Figure S17. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'mRNA cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.455 (Fisher's exact test), Q value = 1

Table S20. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	23	4	4
subtype1	10	1	2
subtype2	9	2	0
subtype3	4	1	2

Figure S18. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

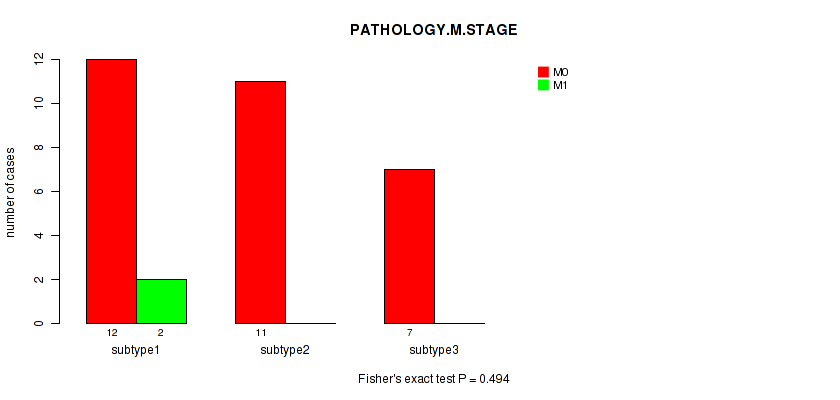

'mRNA cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.494 (Fisher's exact test), Q value = 1

Table S21. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1
ALL	30	2
subtype1	12	2
subtype2	11	0
subtype3	7	0

Figure S19. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'mRNA cHierClus subtypes' versus 'GENDER'

P value = 0.668 (Fisher's exact test), Q value = 1

Table S22. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	18	14
subtype1	9	5
subtype2	5	6
subtype3	4	3

Figure S20. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'mRNA cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.394 (Fisher's exact test), Q value = 1

Table S23. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG CLEAR CELL ADENOCARCINOMA
ALL	1	30	1
subtype1	1	13	0
subtype2	0	11	0
subtype3	0	6	1

Figure S21. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'mRNA cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 1 (Fisher's exact test), Q value = 1

Table S24. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	1	31
subtype1	1	13
subtype2	0	11
subtype3	0	7

Figure S22. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

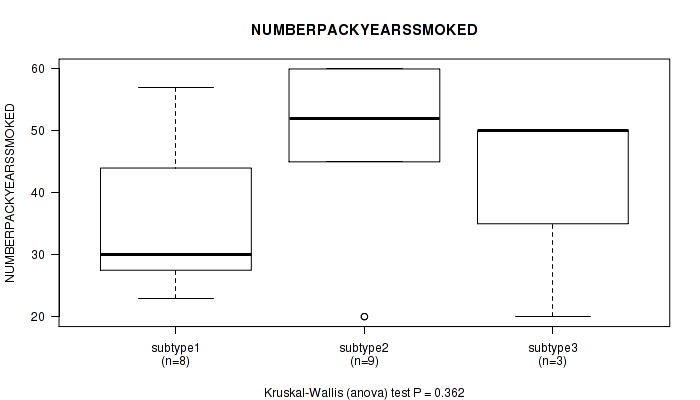

'mRNA cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.362 (Kruskal-Wallis (anova)), Q value = 1

Table S25. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	20	41.1 (15.0)
subtype1	8	35.4 (12.2)
subtype2	9	46.7 (16.1)
subtype3	3	40.0 (17.3)

Figure S23. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

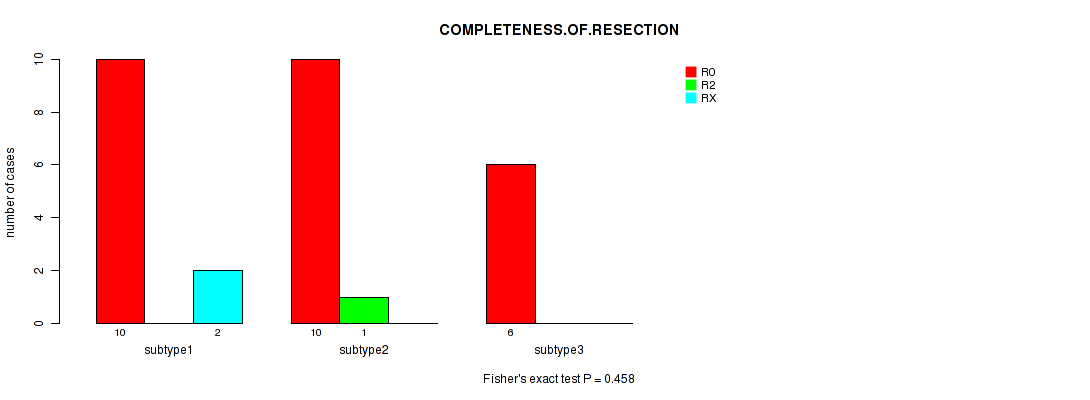

'mRNA cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.458 (Fisher's exact test), Q value = 1

Table S26. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R2	RX
ALL	26	1	2
subtype1	10	0	2
subtype2	10	1	0
subtype3	6	0	0

Figure S24. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

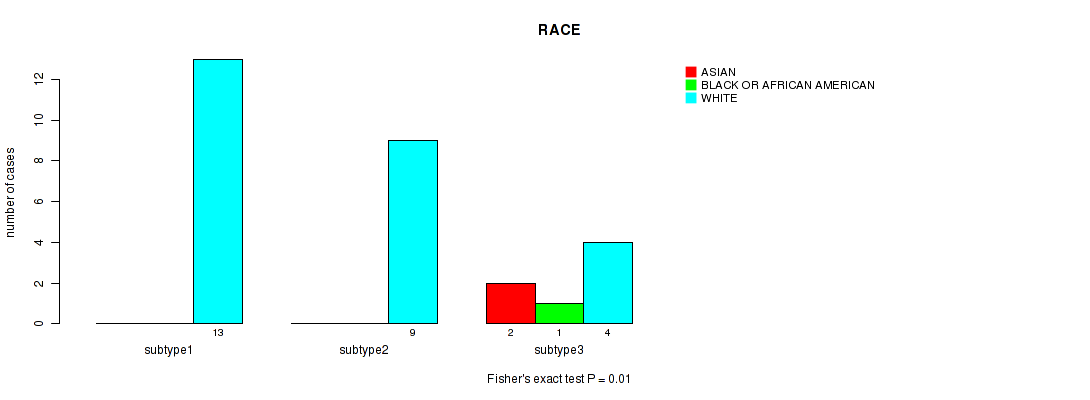

'mRNA cHierClus subtypes' versus 'RACE'

P value = 0.01 (Fisher's exact test), Q value = 1

Table S27. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	2	1	26
subtype1	0	0	13
subtype2	0	0	9
subtype3	2	1	4

Figure S25. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #13: 'RACE'

'mRNA cHierClus subtypes' versus 'ETHNICITY'

P value = 1 (Fisher's exact test), Q value = 1

Table S28. Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	1	28
subtype1	1	12
subtype2	0	9
subtype3	0	7

Figure S26. Get High-res Image Clustering Approach #2: 'mRNA cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #3: 'Copy Number Ratio CNMF subtypes'

Table S29. Description of clustering approach #3: 'Copy Number Ratio CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	181	194	87

'Copy Number Ratio CNMF subtypes' versus 'Time to Death'

P value = 0.677 (logrank test), Q value = 1

Table S30. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	403	82	1.0 - 2696.0 (466.0)
subtype1	157	33	2.0 - 2696.0 (519.0)
subtype2	168	33	1.0 - 2199.0 (426.5)
subtype3	78	16	2.0 - 1997.0 (484.0)

Figure S27. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'Copy Number Ratio CNMF subtypes' versus 'AGE'

P value = 0.00676 (Kruskal-Wallis (anova)), Q value = 0.97

Table S31. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	431	65.6 (9.7)
subtype1	169	64.5 (9.9)
subtype2	180	67.4 (9.1)
subtype3	82	63.9 (9.9)

Figure S28. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #2: 'AGE'

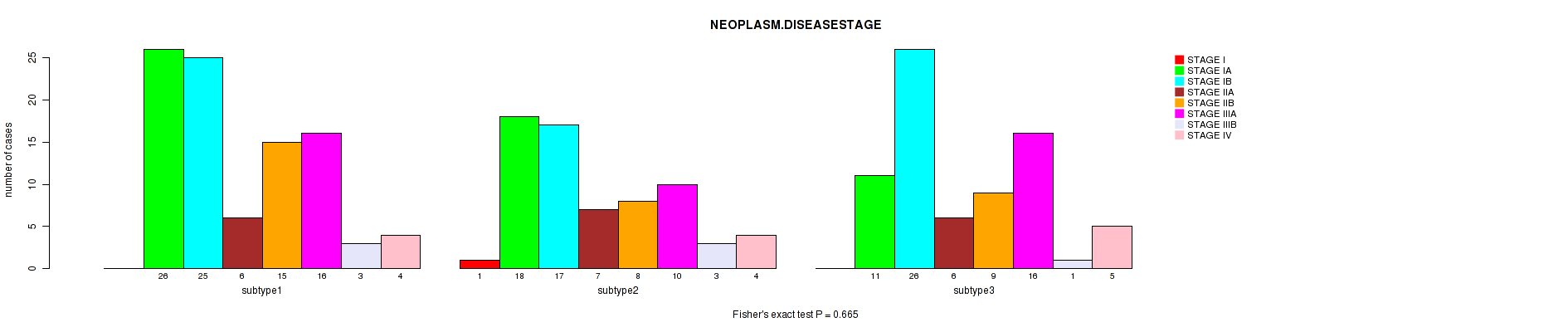

'Copy Number Ratio CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.771 (Fisher's exact test), Q value = 1

Table S32. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	113	131	43	69	67	11	23
subtype1	2	36	52	20	31	26	5	9
subtype2	1	55	56	17	28	24	3	9
subtype3	1	22	23	6	10	17	3	5

Figure S29. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.499 (Fisher's exact test), Q value = 1

Table S33. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	143	259	40	18
subtype1	49	108	19	5
subtype2	68	104	13	9
subtype3	26	47	8	4

Figure S30. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.534 (Fisher's exact test), Q value = 1

Table S34. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	295	85	72
subtype1	111	36	32
subtype2	127	37	25
subtype3	57	12	15

Figure S31. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

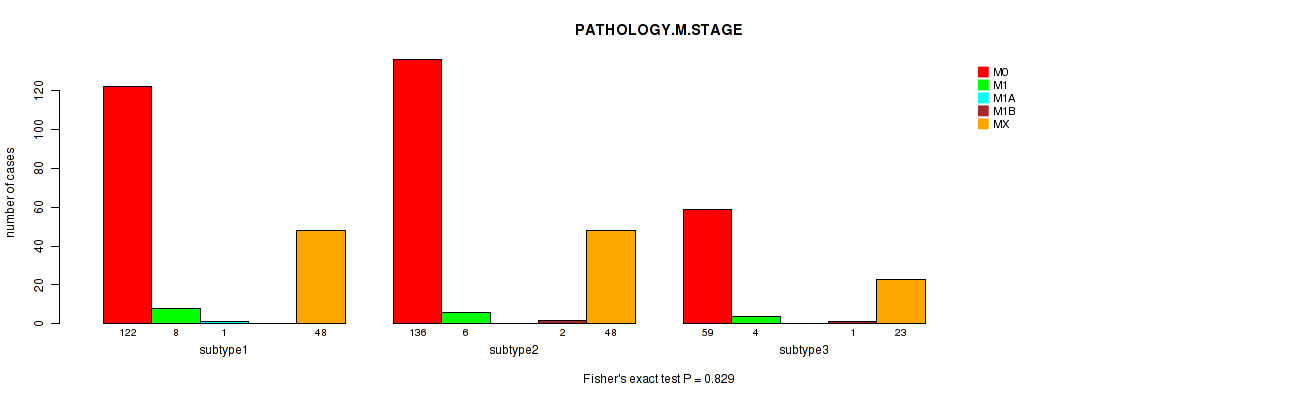

'Copy Number Ratio CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.829 (Fisher's exact test), Q value = 1

Table S35. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	317	18	1	3	119
subtype1	122	8	1	0	48
subtype2	136	6	0	2	48
subtype3	59	4	0	1	23

Figure S32. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

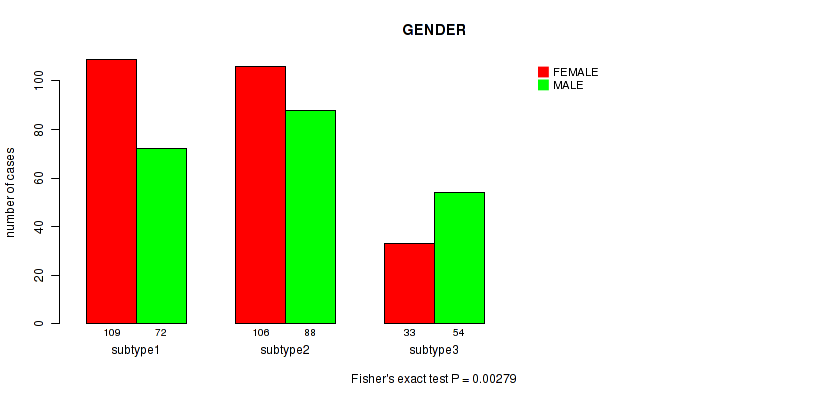

'Copy Number Ratio CNMF subtypes' versus 'GENDER'

P value = 0.00279 (Fisher's exact test), Q value = 0.42

Table S36. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	248	214
subtype1	109	72
subtype2	106	88
subtype3	33	54

Figure S33. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #7: 'GENDER'

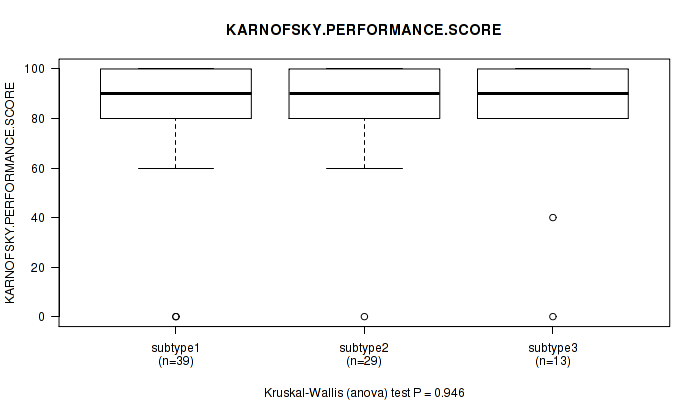

'Copy Number Ratio CNMF subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.946 (Kruskal-Wallis (anova)), Q value = 1

Table S37. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	81	84.2 (22.6)
subtype1	39	83.8 (22.8)
subtype2	29	86.2 (19.5)
subtype3	13	80.8 (29.3)

Figure S34. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'Copy Number Ratio CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.274 (Fisher's exact test), Q value = 1

Table S38. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	93	294	4	19	2	4	2	19	1	4	7
subtype1	6	34	120	2	9	1	3	0	5	0	1	0
subtype2	3	43	114	2	9	1	1	2	11	1	1	6
subtype3	4	16	60	0	1	0	0	0	3	0	2	1

Figure S35. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'Copy Number Ratio CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.274 (Fisher's exact test), Q value = 1

Table S39. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	21	441
subtype1	5	176
subtype2	10	184
subtype3	6	81

Figure S36. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'Copy Number Ratio CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.018 (Kruskal-Wallis (anova)), Q value = 1

Table S40. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	317	42.2 (27.2)
subtype1	117	45.0 (26.0)
subtype2	130	38.0 (26.7)
subtype3	70	45.0 (29.5)

Figure S37. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'Copy Number Ratio CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.949 (Fisher's exact test), Q value = 1

Table S41. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	318	11	4	19
subtype1	128	5	1	9
subtype2	133	4	2	6
subtype3	57	2	1	4

Figure S38. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'Copy Number Ratio CNMF subtypes' versus 'RACE'

P value = 0.679 (Fisher's exact test), Q value = 1

Table S42. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #13: 'RACE'

nPatients	AMERICAN INDIAN OR ALASKA NATIVE	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	1	6	26	362
subtype1	1	4	10	140
subtype2	0	1	10	155
subtype3	0	1	6	67

Figure S39. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #13: 'RACE'

'Copy Number Ratio CNMF subtypes' versus 'ETHNICITY'

P value = 0.115 (Fisher's exact test), Q value = 1

Table S43. Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	332
subtype1	3	127
subtype2	1	145
subtype3	3	60

Figure S40. Get High-res Image Clustering Approach #3: 'Copy Number Ratio CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #4: 'METHLYATION CNMF'

Table S44. Description of clustering approach #4: 'METHLYATION CNMF'

Cluster Labels	1	2	3	4
Number of samples	84	120	109	96

'METHLYATION CNMF' versus 'Time to Death'

P value = 0.937 (logrank test), Q value = 1

Table S45. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	357	68	1.0 - 2696.0 (415.0)
subtype1	74	13	1.0 - 2151.0 (289.5)
subtype2	106	24	2.0 - 2696.0 (487.0)
subtype3	98	18	3.0 - 2370.0 (369.5)
subtype4	79	13	10.0 - 2174.0 (377.0)

Figure S41. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #1: 'Time to Death'

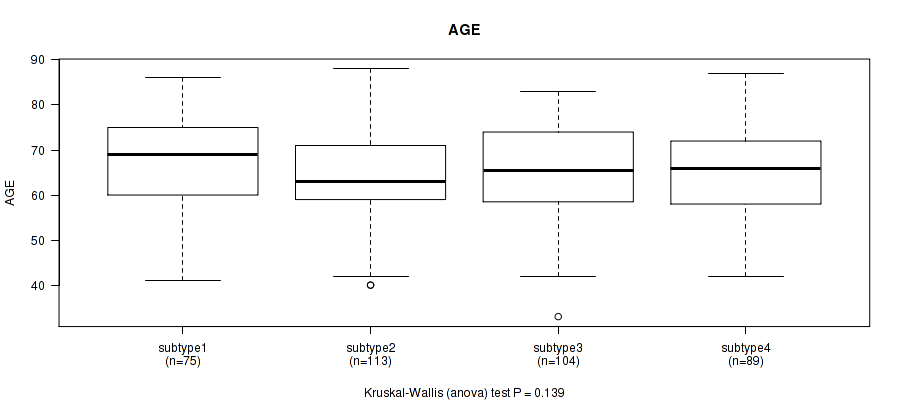

'METHLYATION CNMF' versus 'AGE'

P value = 0.139 (Kruskal-Wallis (anova)), Q value = 1

Table S46. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	381	65.3 (10.0)
subtype1	75	67.1 (9.3)
subtype2	113	63.8 (10.0)
subtype3	104	65.4 (10.2)
subtype4	89	65.4 (10.0)

Figure S42. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #2: 'AGE'

'METHLYATION CNMF' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.154 (Fisher's exact test), Q value = 1

Table S47. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	98	117	43	59	59	9	19
subtype1	1	30	19	8	13	10	0	2
subtype2	2	26	32	15	13	18	5	9
subtype3	1	15	36	10	21	18	3	5
subtype4	0	27	30	10	12	13	1	3

Figure S43. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.0287 (Fisher's exact test), Q value = 1

Table S48. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	128	227	36	15
subtype1	38	38	7	1
subtype2	32	71	11	5
subtype3	24	65	13	7
subtype4	34	53	5	2

Figure S44. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.77 (Fisher's exact test), Q value = 1

Table S49. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	262	75	63
subtype1	57	15	9
subtype2	76	19	23
subtype3	69	23	17
subtype4	60	18	14

Figure S45. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'METHLYATION CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.278 (Fisher's exact test), Q value = 1

Table S50. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	265	12	1	4	123
subtype1	50	1	0	1	30
subtype2	81	5	1	3	29
subtype3	75	4	0	0	29
subtype4	59	2	0	0	35

Figure S46. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'METHLYATION CNMF' versus 'GENDER'

P value = 0.00043 (Fisher's exact test), Q value = 0.068

Table S51. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	219	190
subtype1	57	27
subtype2	49	71
subtype3	54	55
subtype4	59	37

Figure S47. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #7: 'GENDER'

'METHLYATION CNMF' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.435 (Kruskal-Wallis (anova)), Q value = 1

Table S52. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	75	84.0 (21.7)
subtype1	14	92.1 (7.0)
subtype2	30	81.7 (26.4)
subtype3	22	85.0 (15.7)
subtype4	9	76.7 (30.4)

Figure S48. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'METHLYATION CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 0.002 (Fisher's exact test), Q value = 0.31

Table S53. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	79	258	4	19	1	3	2	18	1	4	7
subtype1	5	17	42	2	10	0	1	2	3	0	0	2
subtype2	6	25	74	0	3	0	0	0	8	0	1	3
subtype3	1	27	70	1	4	0	2	0	3	0	1	0
subtype4	1	10	72	1	2	1	0	0	4	1	2	2

Figure S49. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

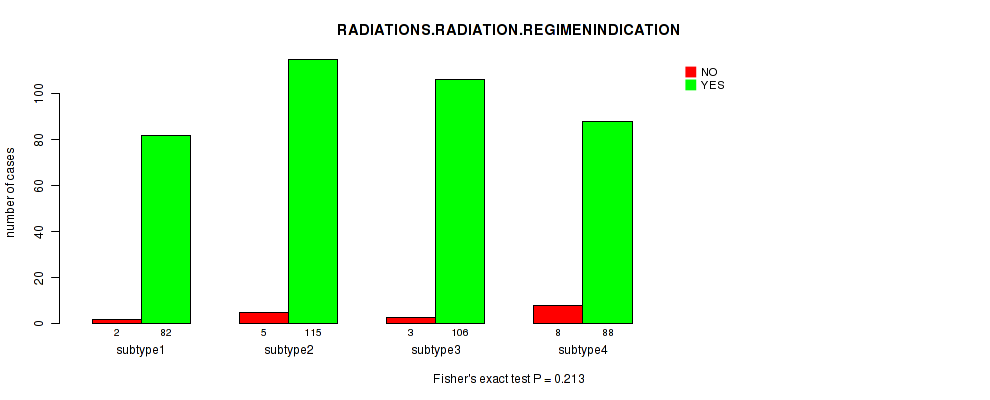

'METHLYATION CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.213 (Fisher's exact test), Q value = 1

Table S54. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	18	391
subtype1	2	82
subtype2	5	115
subtype3	3	106
subtype4	8	88

Figure S50. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'METHLYATION CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.00296 (Kruskal-Wallis (anova)), Q value = 0.44

Table S55. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	279	41.2 (27.2)
subtype1	47	32.6 (20.6)
subtype2	92	49.7 (31.1)
subtype3	76	37.6 (27.2)
subtype4	64	39.4 (22.6)

Figure S51. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

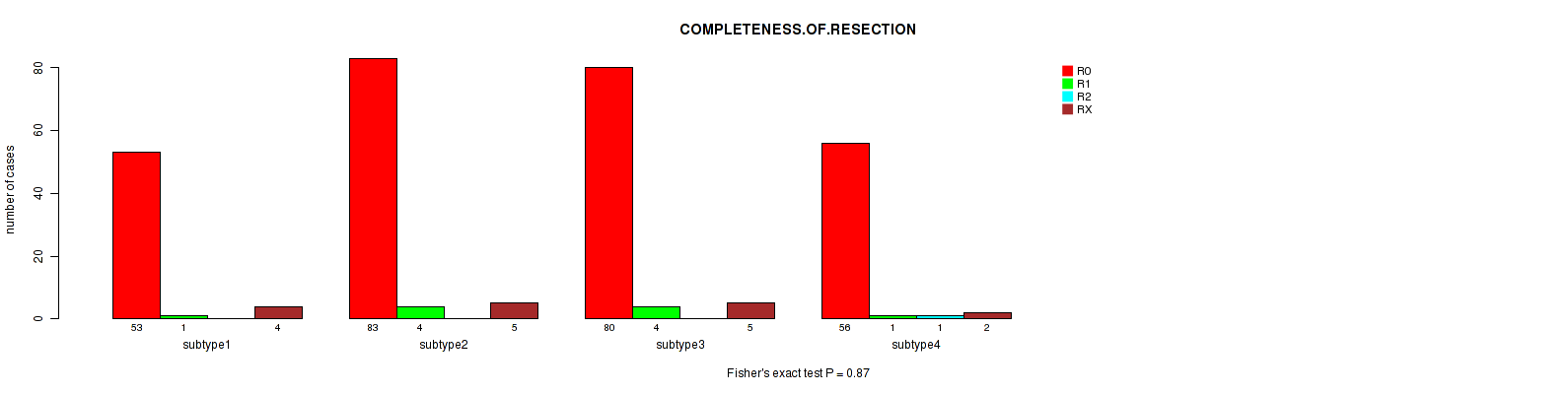

'METHLYATION CNMF' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.87 (Fisher's exact test), Q value = 1

Table S56. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	272	10	1	16
subtype1	53	1	0	4
subtype2	83	4	0	5
subtype3	80	4	0	5
subtype4	56	1	1	2

Figure S52. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'METHLYATION CNMF' versus 'RACE'

P value = 0.4 (Fisher's exact test), Q value = 1

Table S57. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	5	29	326
subtype1	0	6	68
subtype2	1	8	99
subtype3	4	7	80
subtype4	0	8	79

Figure S53. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #13: 'RACE'

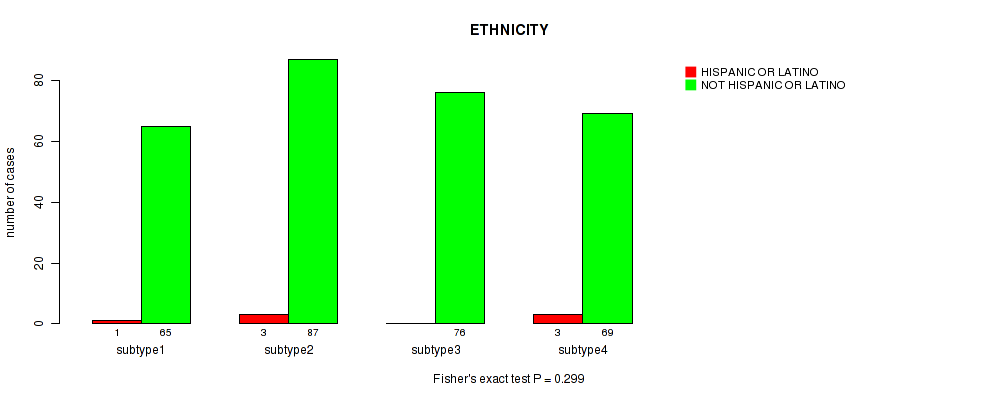

'METHLYATION CNMF' versus 'ETHNICITY'

P value = 0.299 (Fisher's exact test), Q value = 1

Table S58. Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	297
subtype1	1	65
subtype2	3	87
subtype3	0	76
subtype4	3	69

Figure S54. Get High-res Image Clustering Approach #4: 'METHLYATION CNMF' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #5: 'RPPA CNMF subtypes'

Table S59. Description of clustering approach #5: 'RPPA CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	95	68	74

'RPPA CNMF subtypes' versus 'Time to Death'

P value = 0.779 (logrank test), Q value = 1

Table S60. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	200	49	2.0 - 2370.0 (722.5)
subtype1	70	14	2.0 - 2174.0 (714.0)
subtype2	64	14	2.0 - 1972.0 (700.5)
subtype3	66	21	11.0 - 2370.0 (816.5)

Figure S55. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

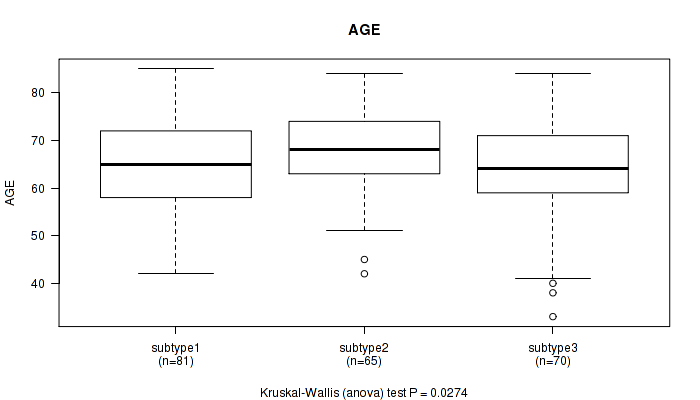

'RPPA CNMF subtypes' versus 'AGE'

P value = 0.0274 (Kruskal-Wallis (anova)), Q value = 1

Table S61. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	216	64.8 (9.8)
subtype1	81	64.3 (10.0)
subtype2	65	67.4 (8.4)
subtype3	70	63.0 (10.6)

Figure S56. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #2: 'AGE'

'RPPA CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.665 (Fisher's exact test), Q value = 1

Table S62. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	1	55	68	19	32	42	7	13
subtype1	0	26	25	6	15	16	3	4
subtype2	1	18	17	7	8	10	3	4
subtype3	0	11	26	6	9	16	1	5

Figure S57. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

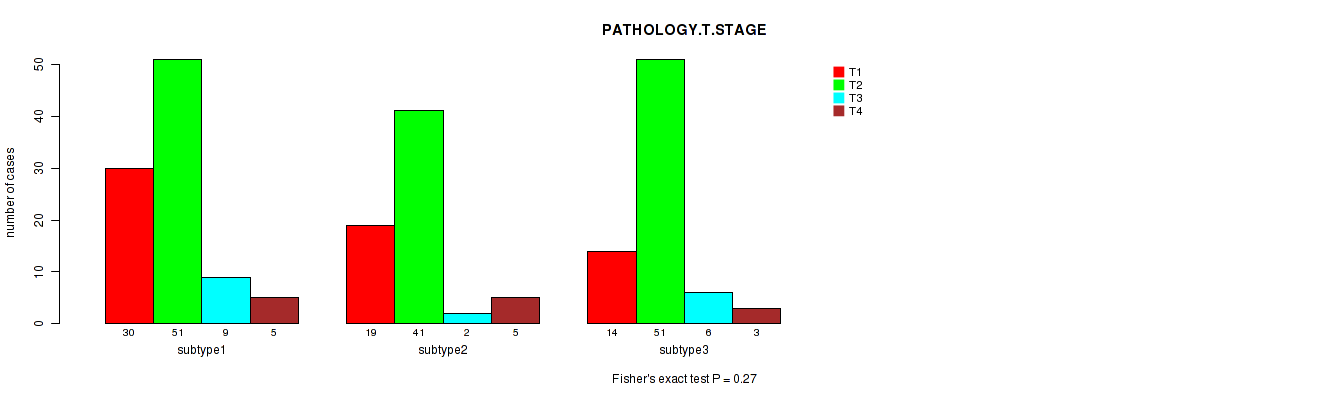

'RPPA CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.27 (Fisher's exact test), Q value = 1

Table S63. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	63	143	17	13
subtype1	30	51	9	5
subtype2	19	41	2	5
subtype3	14	51	6	3

Figure S58. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

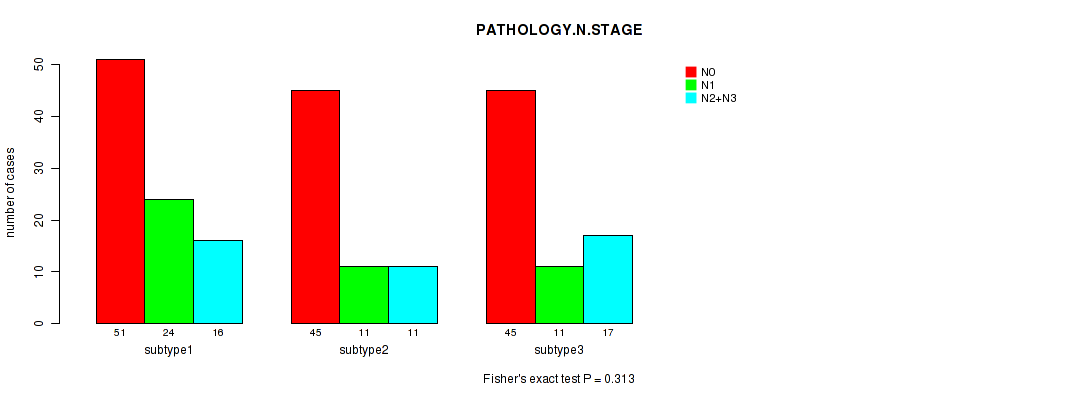

'RPPA CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.313 (Fisher's exact test), Q value = 1

Table S64. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	141	46	44
subtype1	51	24	16
subtype2	45	11	11
subtype3	45	11	17

Figure S59. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'RPPA CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.736 (Fisher's exact test), Q value = 1

Table S65. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	175	12	47
subtype1	73	4	16
subtype2	47	4	17
subtype3	55	4	14

Figure S60. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'RPPA CNMF subtypes' versus 'GENDER'

P value = 0.193 (Fisher's exact test), Q value = 1

Table S66. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	131	106
subtype1	59	36
subtype2	36	32
subtype3	36	38

Figure S61. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #7: 'GENDER'

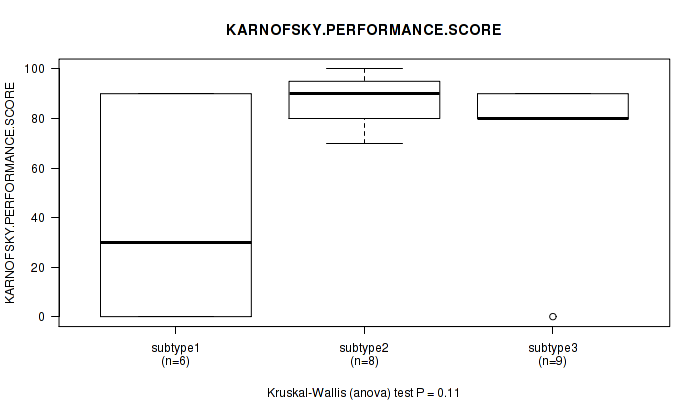

'RPPA CNMF subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.11 (Kruskal-Wallis (anova)), Q value = 1

Table S67. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	23	70.4 (34.2)
subtype1	6	40.0 (45.2)
subtype2	8	87.5 (10.4)
subtype3	9	75.6 (28.8)

Figure S62. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'RPPA CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.0428 (Fisher's exact test), Q value = 1

Table S68. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	6	52	153	3	9	1	2	2	5	1	3
subtype1	2	19	65	1	2	1	1	1	1	1	1
subtype2	3	18	33	1	7	0	1	0	3	0	2
subtype3	1	15	55	1	0	0	0	1	1	0	0

Figure S63. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'RPPA CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.112 (Fisher's exact test), Q value = 1

Table S69. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	16	221
subtype1	4	91
subtype2	3	65
subtype3	9	65

Figure S64. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RPPA CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.233 (Kruskal-Wallis (anova)), Q value = 1

Table S70. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	170	40.8 (26.6)
subtype1	55	43.9 (28.1)
subtype2	60	36.8 (25.8)
subtype3	55	42.2 (25.9)

Figure S65. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'RPPA CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.272 (Fisher's exact test), Q value = 1

Table S71. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	148	8	3	10
subtype1	57	3	3	6
subtype2	47	4	0	1
subtype3	44	1	0	3

Figure S66. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

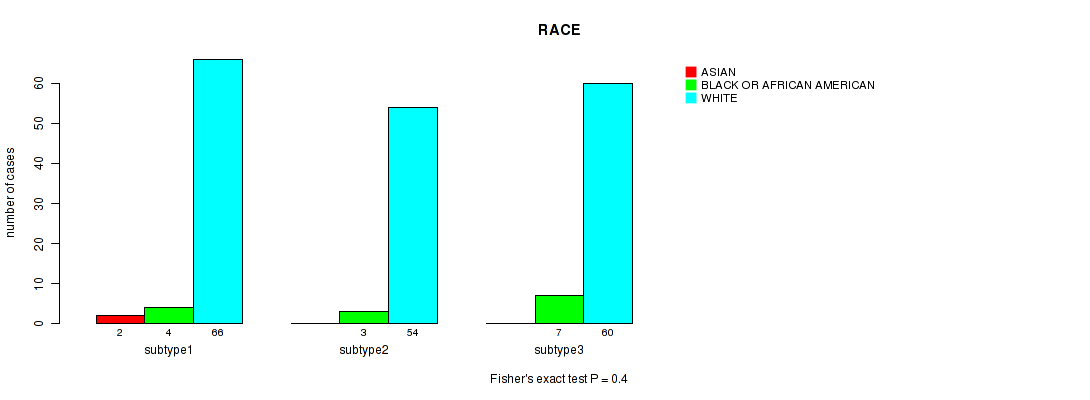

'RPPA CNMF subtypes' versus 'RACE'

P value = 0.4 (Fisher's exact test), Q value = 1

Table S72. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	2	14	180
subtype1	2	4	66
subtype2	0	3	54
subtype3	0	7	60

Figure S67. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #13: 'RACE'

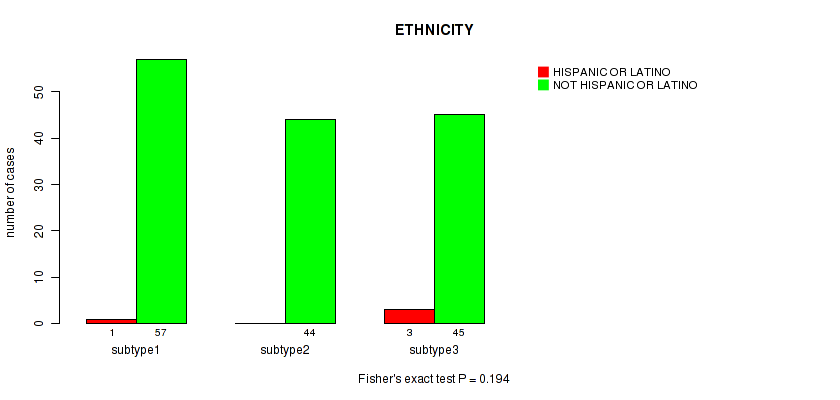

'RPPA CNMF subtypes' versus 'ETHNICITY'

P value = 0.194 (Fisher's exact test), Q value = 1

Table S73. Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	4	146
subtype1	1	57
subtype2	0	44
subtype3	3	45

Figure S68. Get High-res Image Clustering Approach #5: 'RPPA CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #6: 'RPPA cHierClus subtypes'

Table S74. Description of clustering approach #6: 'RPPA cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	113	71	53

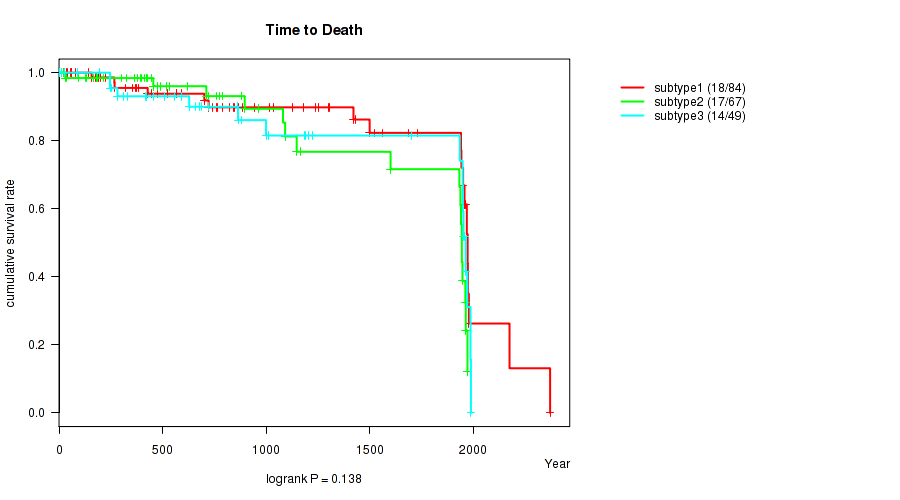

'RPPA cHierClus subtypes' versus 'Time to Death'

P value = 0.138 (logrank test), Q value = 1

Table S75. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	200	49	2.0 - 2370.0 (722.5)
subtype1	84	18	2.0 - 2370.0 (762.5)
subtype2	67	17	2.0 - 1972.0 (690.0)
subtype3	49	14	11.0 - 1988.0 (723.0)

Figure S69. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'RPPA cHierClus subtypes' versus 'AGE'

P value = 0.00121 (Kruskal-Wallis (anova)), Q value = 0.19

Table S76. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	216	64.8 (9.8)
subtype1	101	64.5 (9.6)
subtype2	66	68.0 (8.4)
subtype3	49	61.2 (10.9)

Figure S70. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'RPPA cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.839 (Fisher's exact test), Q value = 1

Table S77. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	1	55	68	19	32	42	7	13
subtype1	0	28	35	7	17	17	3	6
subtype2	0	18	17	7	10	12	3	4
subtype3	1	9	16	5	5	13	1	3

Figure S71. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'RPPA cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.893 (Fisher's exact test), Q value = 1

Table S78. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	63	143	17	13
subtype1	31	69	7	5
subtype2	19	40	6	6
subtype3	13	34	4	2

Figure S72. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

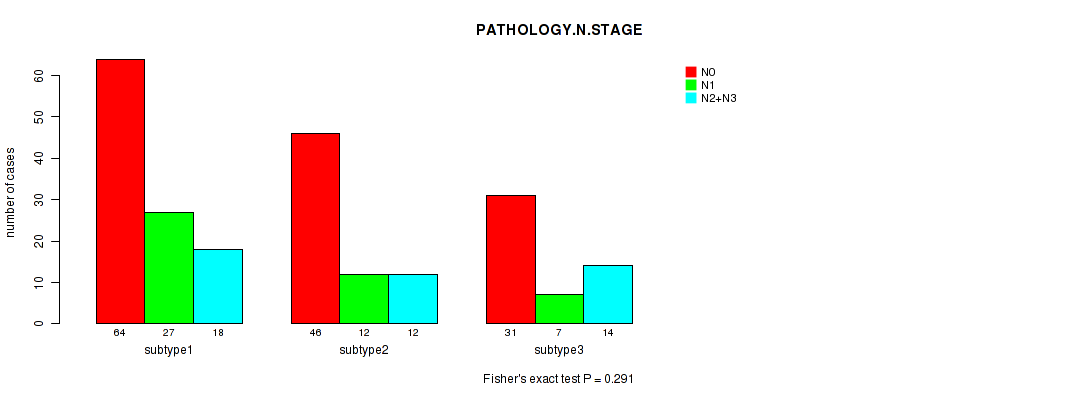

'RPPA cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.291 (Fisher's exact test), Q value = 1

Table S79. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	141	46	44
subtype1	64	27	18
subtype2	46	12	12
subtype3	31	7	14

Figure S73. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

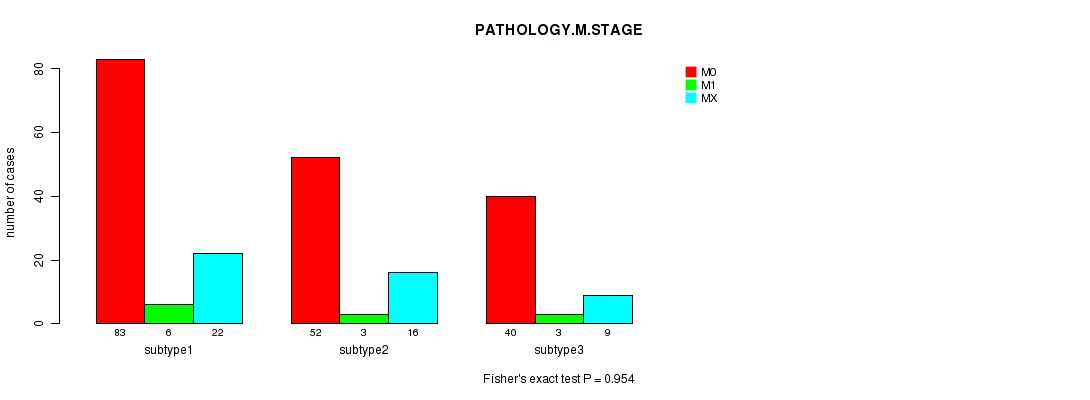

'RPPA cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.954 (Fisher's exact test), Q value = 1

Table S80. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	MX
ALL	175	12	47
subtype1	83	6	22
subtype2	52	3	16
subtype3	40	3	9

Figure S74. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'RPPA cHierClus subtypes' versus 'GENDER'

P value = 0.0807 (Fisher's exact test), Q value = 1

Table S81. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	131	106
subtype1	71	42
subtype2	35	36
subtype3	25	28

Figure S75. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'RPPA cHierClus subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.421 (Kruskal-Wallis (anova)), Q value = 1

Table S82. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	23	70.4 (34.2)
subtype1	9	56.7 (43.9)
subtype2	8	86.2 (9.2)
subtype3	6	70.0 (34.6)

Figure S76. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'RPPA cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.044 (Fisher's exact test), Q value = 1

Table S83. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	6	52	153	3	9	1	2	2	5	1	3
subtype1	2	22	79	0	4	1	1	1	1	1	1
subtype2	3	22	32	3	4	0	1	1	3	0	2
subtype3	1	8	42	0	1	0	0	0	1	0	0

Figure S77. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'RPPA cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.0867 (Fisher's exact test), Q value = 1

Table S84. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	16	221
subtype1	7	106
subtype2	2	69
subtype3	7	46

Figure S78. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

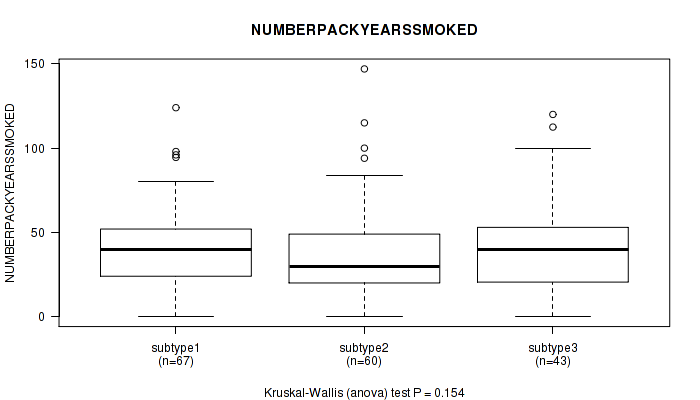

'RPPA cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.154 (Kruskal-Wallis (anova)), Q value = 1

Table S85. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	170	40.8 (26.6)
subtype1	67	42.0 (25.3)
subtype2	60	37.0 (27.7)
subtype3	43	44.4 (27.0)

Figure S79. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

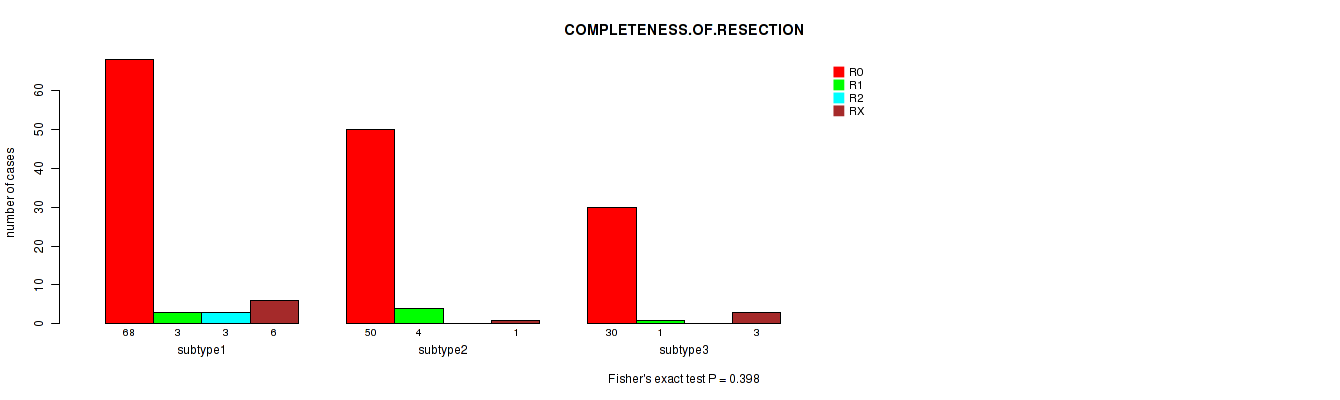

'RPPA cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.398 (Fisher's exact test), Q value = 1

Table S86. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	148	8	3	10
subtype1	68	3	3	6
subtype2	50	4	0	1
subtype3	30	1	0	3

Figure S80. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'RPPA cHierClus subtypes' versus 'RACE'

P value = 0.293 (Fisher's exact test), Q value = 1

Table S87. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	2	14	180
subtype1	2	4	84
subtype2	0	4	54
subtype3	0	6	42

Figure S81. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #13: 'RACE'

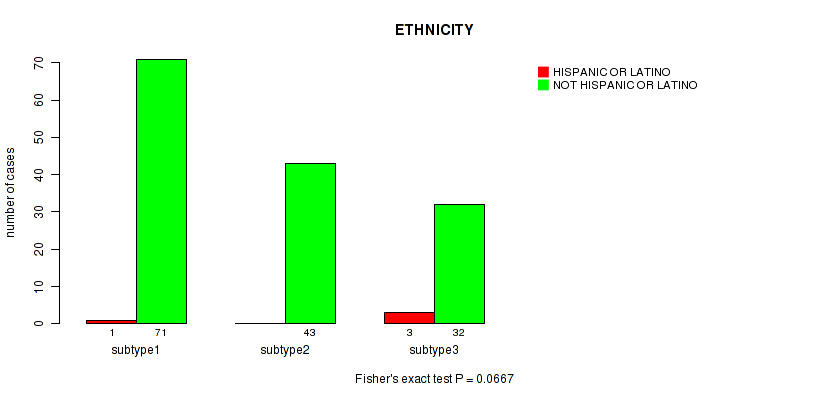

'RPPA cHierClus subtypes' versus 'ETHNICITY'

P value = 0.0667 (Fisher's exact test), Q value = 1

Table S88. Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	4	146
subtype1	1	71
subtype2	0	43
subtype3	3	32

Figure S82. Get High-res Image Clustering Approach #6: 'RPPA cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #7: 'RNAseq CNMF subtypes'

Table S89. Description of clustering approach #7: 'RNAseq CNMF subtypes'

Cluster Labels	1	2	3	4	5
Number of samples	134	102	72	101	49

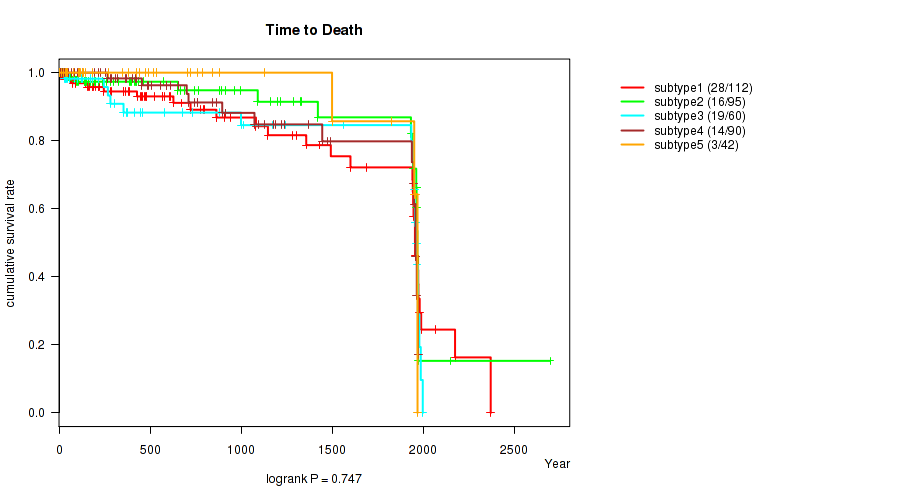

'RNAseq CNMF subtypes' versus 'Time to Death'

P value = 0.747 (logrank test), Q value = 1

Table S90. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	399	80	1.0 - 2696.0 (459.0)
subtype1	112	28	3.0 - 2370.0 (502.0)
subtype2	95	16	1.0 - 2696.0 (400.0)
subtype3	60	19	15.0 - 1997.0 (451.0)
subtype4	90	14	2.0 - 1972.0 (500.0)
subtype5	42	3	3.0 - 1968.0 (435.5)

Figure S83. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq CNMF subtypes' versus 'AGE'

P value = 0.00083 (Kruskal-Wallis (anova)), Q value = 0.13

Table S91. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	427	65.6 (9.7)
subtype1	125	63.6 (10.1)
subtype2	96	68.4 (7.8)
subtype3	67	67.6 (9.7)
subtype4	94	63.8 (9.5)
subtype5	45	65.7 (10.9)

Figure S84. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.00448 (Fisher's exact test), Q value = 0.66

Table S92. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	111	132	40	68	68	11	23
subtype1	2	21	39	15	26	21	4	6
subtype2	0	40	29	9	9	12	1	2
subtype3	0	11	17	2	17	17	3	5
subtype4	1	22	35	10	11	12	3	7
subtype5	1	17	12	4	5	6	0	3

Figure S85. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.00272 (Fisher's exact test), Q value = 0.41

Table S93. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	141	256	41	18
subtype1	31	85	12	6
subtype2	47	45	6	4
subtype3	14	43	10	4
subtype4	26	63	8	3
subtype5	23	20	5	1

Figure S86. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'RNAseq CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0103 (Fisher's exact test), Q value = 1

Table S94. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	291	85	72
subtype1	73	34	25
subtype2	75	14	10
subtype3	38	15	18
subtype4	74	13	13
subtype5	31	9	6

Figure S87. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

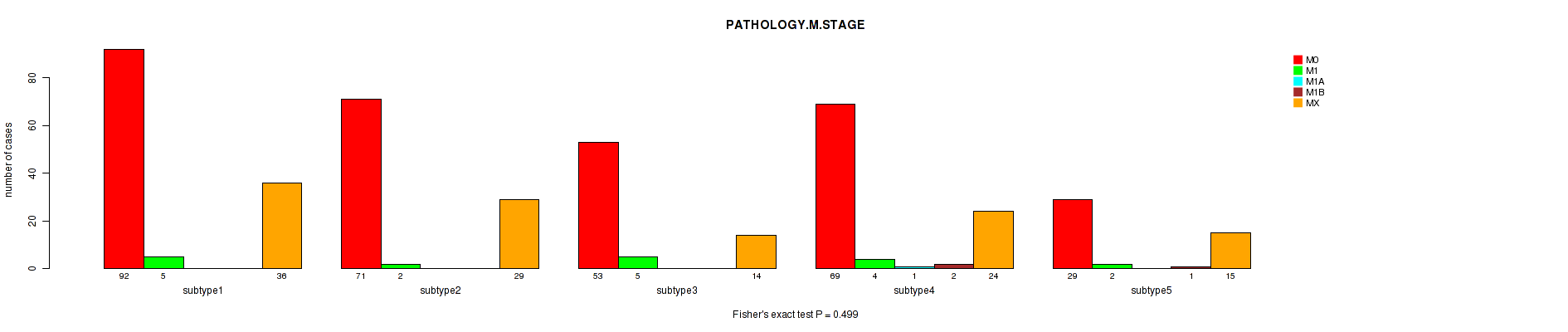

'RNAseq CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.499 (Fisher's exact test), Q value = 1

Table S95. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	314	18	1	3	118
subtype1	92	5	0	0	36
subtype2	71	2	0	0	29
subtype3	53	5	0	0	14
subtype4	69	4	1	2	24
subtype5	29	2	0	1	15

Figure S88. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

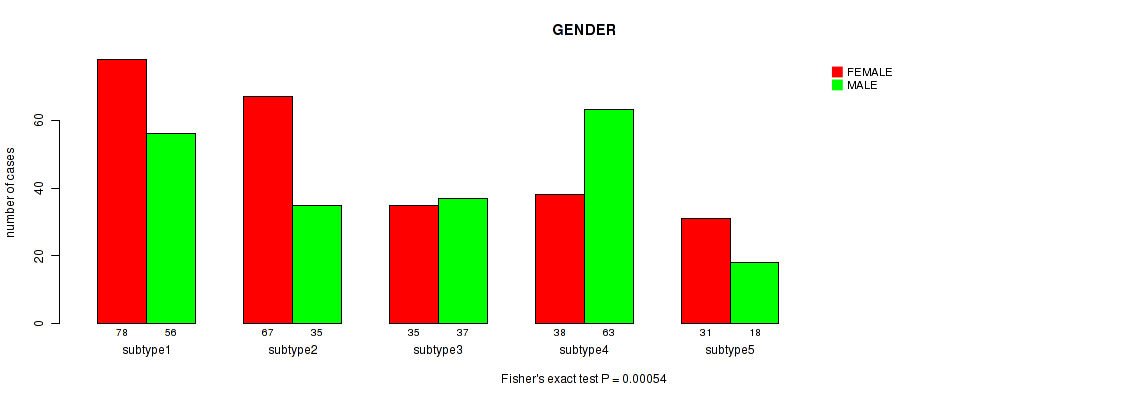

'RNAseq CNMF subtypes' versus 'GENDER'

P value = 0.00054 (Fisher's exact test), Q value = 0.085

Table S96. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	249	209
subtype1	78	56
subtype2	67	35
subtype3	35	37
subtype4	38	63
subtype5	31	18

Figure S89. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #7: 'GENDER'

'RNAseq CNMF subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.024 (Kruskal-Wallis (anova)), Q value = 1

Table S97. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	81	83.7 (23.2)
subtype1	28	75.0 (30.1)
subtype2	16	94.4 (7.3)
subtype3	8	93.8 (9.2)
subtype4	20	86.0 (15.7)
subtype5	9	77.8 (29.9)

Figure S90. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

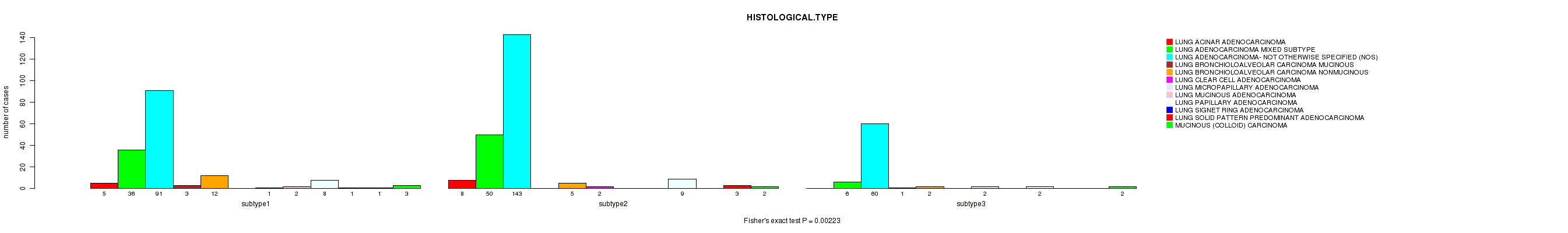

'RNAseq CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.00471 (Fisher's exact test), Q value = 0.69

Table S98. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	93	290	4	19	2	4	2	19	1	4	7
subtype1	2	23	98	0	5	1	3	0	2	0	0	0
subtype2	5	22	58	2	8	0	1	0	6	0	0	0
subtype3	1	15	44	1	1	1	0	1	2	0	2	4
subtype4	4	19	66	0	2	0	0	0	7	0	2	1
subtype5	1	14	24	1	3	0	0	1	2	1	0	2

Figure S91. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'RNAseq CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.594 (Fisher's exact test), Q value = 1

Table S99. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	21	437
subtype1	6	128
subtype2	4	98
subtype3	6	66
subtype4	3	98
subtype5	2	47

Figure S92. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RNAseq CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.0984 (Kruskal-Wallis (anova)), Q value = 1

Table S100. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	311	42.0 (27.3)
subtype1	89	45.7 (28.0)
subtype2	63	34.5 (23.7)
subtype3	52	41.3 (23.9)
subtype4	77	44.6 (31.7)
subtype5	30	41.8 (24.2)

Figure S93. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'RNAseq CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.726 (Fisher's exact test), Q value = 1

Table S101. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	316	11	4	17
subtype1	91	3	1	5
subtype2	73	3	0	3
subtype3	49	2	1	2
subtype4	71	3	0	4
subtype5	32	0	2	3

Figure S94. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'RNAseq CNMF subtypes' versus 'RACE'

P value = 0.775 (Fisher's exact test), Q value = 1

Table S102. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #13: 'RACE'

nPatients	AMERICAN INDIAN OR ALASKA NATIVE	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	1	7	26	357
subtype1	1	3	9	104
subtype2	0	1	5	85
subtype3	0	1	1	56
subtype4	0	2	8	73
subtype5	0	0	3	39

Figure S95. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #13: 'RACE'

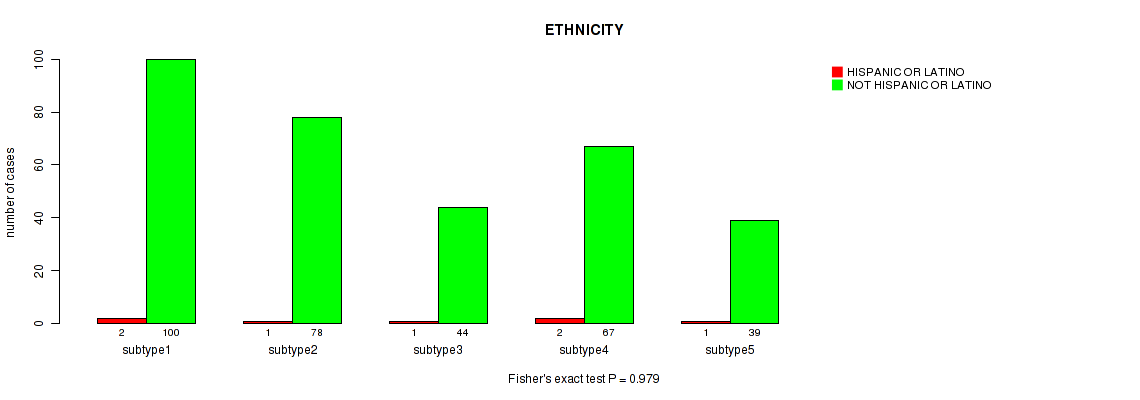

'RNAseq CNMF subtypes' versus 'ETHNICITY'

P value = 0.979 (Fisher's exact test), Q value = 1

Table S103. Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	328
subtype1	2	100
subtype2	1	78
subtype3	1	44
subtype4	2	67
subtype5	1	39

Figure S96. Get High-res Image Clustering Approach #7: 'RNAseq CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #8: 'RNAseq cHierClus subtypes'

Table S104. Description of clustering approach #8: 'RNAseq cHierClus subtypes'

Cluster Labels	1	2	3	4	5	6	7	8	9
Number of samples	81	52	43	78	43	47	47	16	51

'RNAseq cHierClus subtypes' versus 'Time to Death'

P value = 0.145 (logrank test), Q value = 1

Table S105. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	399	80	1.0 - 2696.0 (459.0)
subtype1	73	14	3.0 - 2696.0 (428.0)
subtype2	48	7	3.0 - 2151.0 (374.5)
subtype3	31	8	23.0 - 2370.0 (800.0)
subtype4	65	13	2.0 - 1970.0 (519.0)
subtype5	39	10	1.0 - 1965.0 (690.0)
subtype6	44	5	4.0 - 1972.0 (455.0)
subtype7	39	17	15.0 - 1997.0 (678.0)
subtype8	14	1	22.0 - 1932.0 (139.5)
subtype9	46	5	3.0 - 2174.0 (451.5)

Figure S97. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'RNAseq cHierClus subtypes' versus 'AGE'

P value = 0.000406 (Kruskal-Wallis (anova)), Q value = 0.065

Table S106. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	427	65.6 (9.7)
subtype1	79	63.9 (9.9)
subtype2	48	68.4 (8.9)
subtype3	36	64.5 (11.4)
subtype4	71	66.7 (9.1)
subtype5	41	68.0 (7.1)
subtype6	44	61.0 (9.8)
subtype7	45	66.1 (9.8)
subtype8	14	73.3 (7.9)
subtype9	49	64.2 (9.7)

Figure S98. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'RNAseq cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.00106 (Fisher's exact test), Q value = 0.17

Table S107. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	111	132	40	68	68	11	23
subtype1	1	17	28	3	17	11	0	4
subtype2	0	15	16	7	6	5	1	2
subtype3	0	6	12	4	7	10	3	1
subtype4	1	20	23	12	5	10	2	5
subtype5	0	15	13	2	6	3	2	2
subtype6	1	6	15	6	5	11	1	2
subtype7	0	7	8	1	12	12	2	5
subtype8	0	1	7	0	6	1	0	0
subtype9	1	24	10	5	4	5	0	2

Figure S99. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

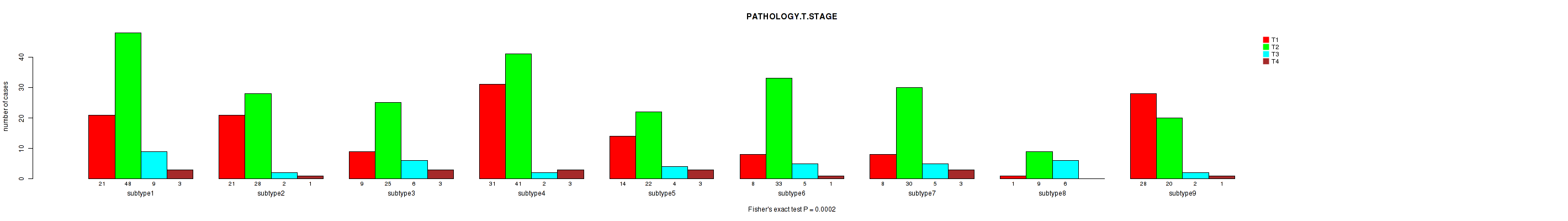

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 2e-04 (Fisher's exact test), Q value = 0.032

Table S108. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	141	256	41	18
subtype1	21	48	9	3
subtype2	21	28	2	1
subtype3	9	25	6	3
subtype4	31	41	2	3
subtype5	14	22	4	3
subtype6	8	33	5	1
subtype7	8	30	5	3
subtype8	1	9	6	0
subtype9	28	20	2	1

Figure S100. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.0205 (Fisher's exact test), Q value = 1

Table S109. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	291	85	72
subtype1	54	16	10
subtype2	34	10	7
subtype3	24	8	11
subtype4	47	19	11
subtype5	33	7	2
subtype6	32	3	11
subtype7	21	11	14
subtype8	13	1	1
subtype9	33	10	5

Figure S101. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'RNAseq cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.173 (Fisher's exact test), Q value = 1

Table S110. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	314	18	1	3	118
subtype1	55	3	0	0	23
subtype2	35	1	1	0	15
subtype3	32	1	0	0	10
subtype4	45	4	0	1	27
subtype5	34	2	0	0	7
subtype6	33	1	0	1	11
subtype7	37	5	0	0	5
subtype8	8	0	0	0	7
subtype9	35	1	0	1	13

Figure S102. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'RNAseq cHierClus subtypes' versus 'GENDER'

P value = 1e-05 (Fisher's exact test), Q value = 0.0017

Table S111. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	249	209
subtype1	50	31
subtype2	45	7
subtype3	20	23
subtype4	44	34
subtype5	14	29
subtype6	19	28
subtype7	18	29
subtype8	6	10
subtype9	33	18

Figure S103. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'RNAseq cHierClus subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.173 (Kruskal-Wallis (anova)), Q value = 1

Table S112. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	81	83.7 (23.2)
subtype1	12	85.8 (18.8)
subtype2	10	93.0 (8.2)
subtype3	7	75.7 (35.1)
subtype4	17	81.8 (23.8)
subtype5	6	95.0 (8.4)
subtype6	12	81.7 (17.5)
subtype7	5	96.0 (8.9)
subtype8	2	85.0 (7.1)
subtype9	10	70.0 (38.0)

Figure S104. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'RNAseq cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 2e-05 (Fisher's exact test), Q value = 0.0033

Table S113. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	93	290	4	19	2	4	2	19	1	4	7
subtype1	2	14	52	0	5	1	3	0	3	0	1	0
subtype2	3	9	30	1	4	0	1	0	4	0	0	0
subtype3	0	4	38	0	0	0	0	0	1	0	0	0
subtype4	2	13	57	1	2	1	0	0	1	0	1	0
subtype5	1	17	18	0	1	0	0	0	6	0	0	0
subtype6	3	8	34	0	1	0	0	0	0	0	0	1
subtype7	0	13	28	0	0	0	0	0	2	0	2	2
subtype8	2	4	3	2	1	0	0	1	0	0	0	3
subtype9	0	11	30	0	5	0	0	1	2	1	0	1

Figure S105. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'RNAseq cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.0788 (Fisher's exact test), Q value = 1

Table S114. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	21	437
subtype1	2	79
subtype2	2	50
subtype3	3	40
subtype4	1	77
subtype5	0	43
subtype6	3	44
subtype7	5	42
subtype8	0	16
subtype9	5	46

Figure S106. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'RNAseq cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.00711 (Kruskal-Wallis (anova)), Q value = 1

Table S115. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	311	42.0 (27.3)
subtype1	51	36.9 (24.7)
subtype2	28	34.9 (24.2)
subtype3	35	44.8 (25.6)
subtype4	52	51.8 (30.8)
subtype5	33	41.2 (31.5)
subtype6	37	37.7 (27.8)
subtype7	37	46.0 (24.8)
subtype8	8	22.6 (13.6)
subtype9	30	43.9 (25.7)

Figure S107. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'RNAseq cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.383 (Fisher's exact test), Q value = 1

Table S116. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	316	11	4	17
subtype1	57	3	0	3
subtype2	40	2	0	0
subtype3	30	0	2	0
subtype4	46	3	2	5
subtype5	27	0	0	3
subtype6	35	1	0	1
subtype7	33	2	0	2
subtype8	11	0	0	0
subtype9	37	0	0	3

Figure S108. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'RNAseq cHierClus subtypes' versus 'RACE'

P value = 0.421 (Fisher's exact test), Q value = 1

Table S117. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #13: 'RACE'

nPatients	AMERICAN INDIAN OR ALASKA NATIVE	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	1	7	26	357
subtype1	1	3	6	61
subtype2	0	2	1	42
subtype3	0	0	2	33
subtype4	0	0	6	61
subtype5	0	0	4	33
subtype6	0	0	3	35
subtype7	0	2	0	38
subtype8	0	0	0	11
subtype9	0	0	4	43

Figure S109. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #13: 'RACE'

'RNAseq cHierClus subtypes' versus 'ETHNICITY'

P value = 0.102 (Fisher's exact test), Q value = 1

Table S118. Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	328
subtype1	0	62
subtype2	1	39
subtype3	0	29
subtype4	4	54
subtype5	0	29
subtype6	0	32
subtype7	2	29
subtype8	0	10
subtype9	0	44

Figure S110. Get High-res Image Clustering Approach #8: 'RNAseq cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #9: 'MIRSEQ CNMF'

Table S119. Description of clustering approach #9: 'MIRSEQ CNMF'

Cluster Labels	1	2	3
Number of samples	163	222	75

'MIRSEQ CNMF' versus 'Time to Death'

P value = 0.656 (logrank test), Q value = 1

Table S120. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	402	81	1.0 - 2696.0 (458.0)
subtype1	144	27	1.0 - 2696.0 (467.5)
subtype2	197	38	2.0 - 2146.0 (455.0)
subtype3	61	16	2.0 - 2370.0 (536.0)

Figure S111. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CNMF' versus 'AGE'

P value = 0.0347 (Kruskal-Wallis (anova)), Q value = 1

Table S121. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	430	65.6 (9.7)
subtype1	154	67.0 (9.4)
subtype2	211	64.4 (10.1)
subtype3	65	66.1 (9.1)

Figure S112. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #2: 'AGE'

'MIRSEQ CNMF' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.0814 (Fisher's exact test), Q value = 1

Table S122. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	112	132	43	67	68	11	22
subtype1	1	55	35	14	25	21	2	9
subtype2	2	44	74	20	32	31	8	11
subtype3	1	13	23	9	10	16	1	2

Figure S113. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.T.STAGE'

P value = 0.0812 (Fisher's exact test), Q value = 1

Table S123. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	142	256	41	18
subtype1	64	77	15	7
subtype2	55	135	20	10
subtype3	23	44	6	1

Figure S114. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.N.STAGE'

P value = 0.194 (Fisher's exact test), Q value = 1

Table S124. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	293	84	72
subtype1	101	36	20
subtype2	148	36	35
subtype3	44	12	17

Figure S115. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRSEQ CNMF' versus 'PATHOLOGY.M.STAGE'

P value = 0.556 (Fisher's exact test), Q value = 1

Table S125. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	315	16	1	3	121
subtype1	113	7	0	1	40
subtype2	156	8	1	2	54
subtype3	46	1	0	0	27

Figure S116. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRSEQ CNMF' versus 'GENDER'

P value = 0.665 (Fisher's exact test), Q value = 1

Table S126. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	247	213
subtype1	92	71
subtype2	115	107
subtype3	40	35

Figure S117. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #7: 'GENDER'

'MIRSEQ CNMF' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.963 (Kruskal-Wallis (anova)), Q value = 1

Table S127. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	80	83.2 (23.2)
subtype1	27	83.0 (25.4)
subtype2	47	83.6 (22.4)
subtype3	6	81.7 (22.3)

Figure S118. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'MIRSEQ CNMF' versus 'HISTOLOGICAL.TYPE'

P value = 0.00223 (Fisher's exact test), Q value = 0.34

Table S128. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	92	294	4	19	2	3	2	19	1	4	7
subtype1	5	36	91	3	12	0	1	2	8	1	1	3
subtype2	8	50	143	0	5	2	0	0	9	0	3	2
subtype3	0	6	60	1	2	0	2	0	2	0	0	2

Figure S119. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'MIRSEQ CNMF' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.868 (Fisher's exact test), Q value = 1

Table S129. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	20	440
subtype1	7	156
subtype2	9	213
subtype3	4	71

Figure S120. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRSEQ CNMF' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.081 (Kruskal-Wallis (anova)), Q value = 1

Table S130. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	314	42.3 (27.3)
subtype1	105	37.8 (24.7)
subtype2	162	44.5 (28.4)
subtype3	47	44.3 (27.9)

Figure S121. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'MIRSEQ CNMF' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.739 (Fisher's exact test), Q value = 1

Table S131. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	315	11	4	19
subtype1	109	2	2	8
subtype2	160	6	2	8
subtype3	46	3	0	3

Figure S122. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'MIRSEQ CNMF' versus 'RACE'

P value = 0.259 (Fisher's exact test), Q value = 1

Table S132. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	7	26	360
subtype1	0	10	134
subtype2	6	12	165
subtype3	1	4	61

Figure S123. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #13: 'RACE'

'MIRSEQ CNMF' versus 'ETHNICITY'

P value = 0.415 (Fisher's exact test), Q value = 1

Table S133. Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	330
subtype1	1	119
subtype2	5	155
subtype3	1	56

Figure S124. Get High-res Image Clustering Approach #9: 'MIRSEQ CNMF' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #10: 'MIRSEQ CHIERARCHICAL'

Table S134. Description of clustering approach #10: 'MIRSEQ CHIERARCHICAL'

Cluster Labels	1	2	3	4	5	6
Number of samples	61	41	115	128	80	35

'MIRSEQ CHIERARCHICAL' versus 'Time to Death'

P value = 0.829 (logrank test), Q value = 1

Table S135. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	402	81	1.0 - 2696.0 (458.0)
subtype1	58	15	1.0 - 2174.0 (720.5)
subtype2	37	7	5.0 - 1972.0 (455.0)
subtype3	96	21	2.0 - 2370.0 (410.0)
subtype4	110	18	3.0 - 1981.0 (407.0)
subtype5	71	13	4.0 - 2696.0 (607.0)
subtype6	30	7	2.0 - 2199.0 (462.0)

Figure S125. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #1: 'Time to Death'

'MIRSEQ CHIERARCHICAL' versus 'AGE'

P value = 0.0566 (Kruskal-Wallis (anova)), Q value = 1

Table S136. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	430	65.6 (9.7)
subtype1	58	68.6 (7.3)
subtype2	38	63.5 (10.8)
subtype3	110	64.0 (10.0)
subtype4	120	66.1 (10.0)
subtype5	73	65.1 (10.2)
subtype6	31	67.0 (8.0)

Figure S126. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #2: 'AGE'

'MIRSEQ CHIERARCHICAL' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.7 (Fisher's exact test), Q value = 1

Table S137. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	112	132	43	67	68	11	22
subtype1	0	23	14	2	9	8	1	4
subtype2	1	8	12	5	7	4	2	2
subtype3	2	19	39	10	16	19	5	5
subtype4	1	36	36	11	19	16	2	6
subtype5	0	17	24	8	11	15	1	4
subtype6	0	9	7	7	5	6	0	1

Figure S127. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.T.STAGE'

P value = 0.299 (Fisher's exact test), Q value = 1

Table S138. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	142	256	41	18
subtype1	25	29	3	4
subtype2	9	25	5	2
subtype3	26	72	10	5
subtype4	46	62	14	5
subtype5	24	46	8	2
subtype6	12	22	1	0

Figure S128. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.N.STAGE'

P value = 0.689 (Fisher's exact test), Q value = 1

Table S139. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	293	84	72
subtype1	41	11	6
subtype2	30	4	6
subtype3	71	21	22
subtype4	81	24	18
subtype5	50	14	15
subtype6	20	10	5

Figure S129. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'PATHOLOGY.M.STAGE'

P value = 0.641 (Fisher's exact test), Q value = 1

Table S140. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	315	16	1	3	121
subtype1	41	3	0	0	17
subtype2	32	1	1	0	6
subtype3	81	5	0	0	29
subtype4	82	4	0	1	39
subtype5	53	2	0	2	23
subtype6	26	1	0	0	7

Figure S130. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRSEQ CHIERARCHICAL' versus 'GENDER'

P value = 0.00024 (Fisher's exact test), Q value = 0.039

Table S141. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	247	213
subtype1	30	31
subtype2	25	16
subtype3	60	55
subtype4	79	49
subtype5	27	53
subtype6	26	9

Figure S131. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #7: 'GENDER'

'MIRSEQ CHIERARCHICAL' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.499 (Kruskal-Wallis (anova)), Q value = 1

Table S142. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	80	83.2 (23.2)
subtype1	7	90.0 (8.2)
subtype2	9	91.1 (9.3)
subtype3	26	83.5 (26.5)
subtype4	18	77.8 (30.4)
subtype5	12	79.2 (17.3)
subtype6	8	86.2 (20.7)

Figure S132. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'MIRSEQ CHIERARCHICAL' versus 'HISTOLOGICAL.TYPE'

P value = 0.092 (Fisher's exact test), Q value = 1

Table S143. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	92	294	4	19	2	3	2	19	1	4	7
subtype1	3	15	35	0	4	0	0	0	4	0	0	0
subtype2	1	10	27	0	1	1	0	0	1	0	0	0
subtype3	2	24	78	0	3	0	1	0	7	0	0	0
subtype4	4	26	72	2	10	0	0	2	5	1	1	5
subtype5	3	14	54	0	1	1	1	0	1	0	3	2
subtype6	0	3	28	2	0	0	1	0	1	0	0	0

Figure S133. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'MIRSEQ CHIERARCHICAL' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.983 (Fisher's exact test), Q value = 1

Table S144. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	20	440
subtype1	3	58
subtype2	1	40
subtype3	6	109
subtype4	5	123
subtype5	4	76
subtype6	1	34

Figure S134. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRSEQ CHIERARCHICAL' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.00763 (Kruskal-Wallis (anova)), Q value = 1

Table S145. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	314	42.3 (27.3)
subtype1	42	41.1 (28.6)
subtype2	28	36.0 (28.7)
subtype3	82	44.8 (25.4)
subtype4	81	36.1 (24.0)
subtype5	60	50.8 (32.5)
subtype6	21	42.3 (18.9)

Figure S135. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'MIRSEQ CHIERARCHICAL' versus 'COMPLETENESS.OF.RESECTION'

P value = 1 (Fisher's exact test), Q value = 1

Table S146. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	315	11	4	19
subtype1	39	1	0	2
subtype2	28	1	0	2
subtype3	81	3	1	5
subtype4	83	4	2	6
subtype5	54	1	1	3
subtype6	30	1	0	1

Figure S136. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'MIRSEQ CHIERARCHICAL' versus 'RACE'

P value = 0.25 (Fisher's exact test), Q value = 1

Table S147. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	7	26	360
subtype1	0	5	49
subtype2	2	2	31
subtype3	3	5	90
subtype4	1	7	105
subtype5	0	7	55
subtype6	1	0	30

Figure S137. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #13: 'RACE'

'MIRSEQ CHIERARCHICAL' versus 'ETHNICITY'

P value = 0.392 (Fisher's exact test), Q value = 1

Table S148. Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	7	330
subtype1	0	43
subtype2	0	30
subtype3	3	85
subtype4	1	93
subtype5	3	51
subtype6	0	28

Figure S138. Get High-res Image Clustering Approach #10: 'MIRSEQ CHIERARCHICAL' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #11: 'MIRseq Mature CNMF subtypes'

Table S149. Description of clustering approach #11: 'MIRseq Mature CNMF subtypes'

Cluster Labels	1	2	3
Number of samples	142	179	76

'MIRseq Mature CNMF subtypes' versus 'Time to Death'

P value = 0.0745 (logrank test), Q value = 1

Table S150. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	346	64	1.0 - 2696.0 (416.0)
subtype1	125	25	1.0 - 2151.0 (444.0)
subtype2	157	21	2.0 - 2696.0 (372.0)
subtype3	64	18	2.0 - 2370.0 (451.5)

Figure S139. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #1: 'Time to Death'

'MIRseq Mature CNMF subtypes' versus 'AGE'

P value = 0.00513 (Kruskal-Wallis (anova)), Q value = 0.74

Table S151. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	369	65.6 (9.8)
subtype1	135	67.3 (9.5)
subtype2	167	63.9 (9.9)
subtype3	67	66.3 (9.2)

Figure S140. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature CNMF subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.576 (Fisher's exact test), Q value = 1

Table S152. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	97	112	40	57	59	9	18
subtype1	1	44	35	12	17	21	4	7
subtype2	2	38	58	20	26	22	4	9
subtype3	1	15	19	8	14	16	1	2

Figure S141. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.0275 (Fisher's exact test), Q value = 1

Table S153. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	126	218	35	15
subtype1	55	63	14	10
subtype2	49	108	16	4
subtype3	22	47	5	1

Figure S142. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.277 (Fisher's exact test), Q value = 1

Table S154. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	256	70	62
subtype1	91	26	20
subtype2	123	28	25
subtype3	42	16	17

Figure S143. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRseq Mature CNMF subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.658 (Fisher's exact test), Q value = 1

Table S155. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	256	12	1	3	121
subtype1	92	5	0	1	42
subtype2	120	6	1	2	49
subtype3	44	1	0	0	30

Figure S144. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRseq Mature CNMF subtypes' versus 'GENDER'

P value = 0.188 (Fisher's exact test), Q value = 1

Table S156. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	213	184
subtype1	83	59
subtype2	87	92
subtype3	43	33

Figure S145. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #7: 'GENDER'

'MIRseq Mature CNMF subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.878 (Kruskal-Wallis (anova)), Q value = 1

Table S157. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	75	84.0 (21.7)
subtype1	19	83.7 (21.9)
subtype2	45	84.2 (22.7)
subtype3	11	83.6 (19.1)

Figure S146. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'MIRseq Mature CNMF subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.00115 (Fisher's exact test), Q value = 0.18

Table S158. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	77	248	4	19	1	3	2	18	1	4	7
subtype1	6	39	71	2	10	0	1	1	9	0	0	3
subtype2	6	31	119	0	8	1	0	0	7	1	4	2
subtype3	1	7	58	2	1	0	2	1	2	0	0	2

Figure S147. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'MIRseq Mature CNMF subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.299 (Fisher's exact test), Q value = 1

Table S159. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	18	379
subtype1	6	136
subtype2	6	173
subtype3	6	70

Figure S148. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRseq Mature CNMF subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.024 (Kruskal-Wallis (anova)), Q value = 1

Table S160. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	270	41.3 (27.3)
subtype1	94	36.1 (25.5)
subtype2	130	43.8 (28.3)
subtype3	46	45.2 (27.1)

Figure S149. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'MIRseq Mature CNMF subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.556 (Fisher's exact test), Q value = 1

Table S161. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	263	9	1	16
subtype1	86	4	1	5
subtype2	129	3	0	6
subtype3	48	2	0	5

Figure S150. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'MIRseq Mature CNMF subtypes' versus 'RACE'

P value = 0.458 (Fisher's exact test), Q value = 1

Table S162. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	5	24	318
subtype1	1	7	119
subtype2	2	14	138
subtype3	2	3	61

Figure S151. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #13: 'RACE'

'MIRseq Mature CNMF subtypes' versus 'ETHNICITY'

P value = 0.119 (Fisher's exact test), Q value = 1

Table S163. Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	6	285
subtype1	0	99
subtype2	5	130
subtype3	1	56

Figure S152. Get High-res Image Clustering Approach #11: 'MIRseq Mature CNMF subtypes' versus Clinical Feature #14: 'ETHNICITY'

Clustering Approach #12: 'MIRseq Mature cHierClus subtypes'

Table S164. Description of clustering approach #12: 'MIRseq Mature cHierClus subtypes'

Cluster Labels	1	2	3
Number of samples	167	200	30

'MIRseq Mature cHierClus subtypes' versus 'Time to Death'

P value = 0.933 (logrank test), Q value = 1

Table S165. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

	nPatients	nDeath	Duration Range (Median), Year
ALL	346	64	1.0 - 2696.0 (416.0)
subtype1	148	26	1.0 - 2370.0 (474.0)
subtype2	173	32	2.0 - 2696.0 (382.0)
subtype3	25	6	2.0 - 2199.0 (154.0)

Figure S153. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #1: 'Time to Death'

'MIRseq Mature cHierClus subtypes' versus 'AGE'

P value = 2.61e-05 (Kruskal-Wallis (anova)), Q value = 0.0043

Table S166. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

	nPatients	Mean (Std.Dev)
ALL	369	65.6 (9.8)
subtype1	157	67.9 (9.1)
subtype2	186	63.3 (10.0)
subtype3	26	67.8 (7.8)

Figure S154. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #2: 'AGE'

'MIRseq Mature cHierClus subtypes' versus 'NEOPLASM.DISEASESTAGE'

P value = 0.0589 (Fisher's exact test), Q value = 1

Table S167. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

nPatients	STAGE I	STAGE IA	STAGE IB	STAGE IIA	STAGE IIB	STAGE IIIA	STAGE IIIB	STAGE IV
ALL	4	97	112	40	57	59	9	18
subtype1	1	52	41	11	27	21	5	8
subtype2	3	35	64	26	29	30	4	9
subtype3	0	10	7	3	1	8	0	1

Figure S155. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #3: 'NEOPLASM.DISEASESTAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.T.STAGE'

P value = 0.00343 (Fisher's exact test), Q value = 0.51

Table S168. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

nPatients	T1	T2	T3	T4
ALL	126	218	35	15
subtype1	63	75	17	11
subtype2	51	125	18	4
subtype3	12	18	0	0

Figure S156. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #4: 'PATHOLOGY.T.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.N.STAGE'

P value = 0.407 (Fisher's exact test), Q value = 1

Table S169. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

nPatients	N0	N1	N2+N3
ALL	256	70	62
subtype1	107	32	21
subtype2	132	33	33
subtype3	17	5	8

Figure S157. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #5: 'PATHOLOGY.N.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'PATHOLOGY.M.STAGE'

P value = 0.99 (Fisher's exact test), Q value = 1

Table S170. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

nPatients	M0	M1	M1A	M1B	MX
ALL	256	12	1	3	121
subtype1	105	5	0	1	54
subtype2	132	6	1	2	58
subtype3	19	1	0	0	9

Figure S158. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #6: 'PATHOLOGY.M.STAGE'

'MIRseq Mature cHierClus subtypes' versus 'GENDER'

P value = 4e-05 (Fisher's exact test), Q value = 0.0065

Table S171. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

nPatients	FEMALE	MALE
ALL	213	184
subtype1	97	70
subtype2	90	110
subtype3	26	4

Figure S159. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #7: 'GENDER'

'MIRseq Mature cHierClus subtypes' versus 'KARNOFSKY.PERFORMANCE.SCORE'

P value = 0.508 (Kruskal-Wallis (anova)), Q value = 1

Table S172. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

	nPatients	Mean (Std.Dev)
ALL	75	84.0 (21.7)
subtype1	23	86.1 (20.6)
subtype2	45	82.4 (22.6)
subtype3	7	87.1 (22.1)

Figure S160. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #8: 'KARNOFSKY.PERFORMANCE.SCORE'

'MIRseq Mature cHierClus subtypes' versus 'HISTOLOGICAL.TYPE'

P value = 0.0106 (Fisher's exact test), Q value = 1

Table S173. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

nPatients	LUNG ACINAR ADENOCARCINOMA	LUNG ADENOCARCINOMA MIXED SUBTYPE	LUNG ADENOCARCINOMA- NOT OTHERWISE SPECIFIED (NOS)	LUNG BRONCHIOLOALVEOLAR CARCINOMA MUCINOUS	LUNG BRONCHIOLOALVEOLAR CARCINOMA NONMUCINOUS	LUNG CLEAR CELL ADENOCARCINOMA	LUNG MICROPAPILLARY ADENOCARCINOMA	LUNG MUCINOUS ADENOCARCINOMA	LUNG PAPILLARY ADENOCARCINOMA	LUNG SIGNET RING ADENOCARCINOMA	LUNG SOLID PATTERN PREDOMINANT ADENOCARCINOMA	MUCINOUS (COLLOID) CARCINOMA
ALL	13	77	248	4	19	1	3	2	18	1	4	7
subtype1	7	39	87	2	13	0	0	2	10	1	1	5
subtype2	6	34	139	0	6	1	2	0	7	0	3	2
subtype3	0	4	22	2	0	0	1	0	1	0	0	0

Figure S161. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #9: 'HISTOLOGICAL.TYPE'

'MIRseq Mature cHierClus subtypes' versus 'RADIATIONS.RADIATION.REGIMENINDICATION'

P value = 0.802 (Fisher's exact test), Q value = 1

Table S174. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

nPatients	NO	YES
ALL	18	379
subtype1	7	160
subtype2	9	191
subtype3	2	28

Figure S162. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #10: 'RADIATIONS.RADIATION.REGIMENINDICATION'

'MIRseq Mature cHierClus subtypes' versus 'NUMBERPACKYEARSSMOKED'

P value = 0.0363 (Kruskal-Wallis (anova)), Q value = 1

Table S175. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

	nPatients	Mean (Std.Dev)
ALL	270	41.3 (27.3)
subtype1	107	36.7 (24.9)
subtype2	148	44.8 (29.0)
subtype3	15	40.5 (23.0)

Figure S163. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #11: 'NUMBERPACKYEARSSMOKED'

'MIRseq Mature cHierClus subtypes' versus 'COMPLETENESS.OF.RESECTION'

P value = 0.401 (Fisher's exact test), Q value = 1

Table S176. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

nPatients	R0	R1	R2	RX
ALL	263	9	1	16
subtype1	109	4	1	7
subtype2	133	3	0	9
subtype3	21	2	0	0

Figure S164. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #12: 'COMPLETENESS.OF.RESECTION'

'MIRseq Mature cHierClus subtypes' versus 'RACE'

P value = 0.548 (Fisher's exact test), Q value = 1

Table S177. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #13: 'RACE'

nPatients	ASIAN	BLACK OR AFRICAN AMERICAN	WHITE
ALL	5	24	318
subtype1	1	9	137
subtype2	3	14	156
subtype3	1	1	25

Figure S165. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #13: 'RACE'

'MIRseq Mature cHierClus subtypes' versus 'ETHNICITY'

P value = 0.354 (Fisher's exact test), Q value = 1

Table S178. Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

nPatients	HISPANIC OR LATINO	NOT HISPANIC OR LATINO
ALL	6	285
subtype1	1	115
subtype2	5	145
subtype3	0	25

Figure S166. Get High-res Image Clustering Approach #12: 'MIRseq Mature cHierClus subtypes' versus Clinical Feature #14: 'ETHNICITY'

Methods & Data

Input

Cluster data file = LUAD-TP.mergedcluster.txt
Clinical data file = LUAD-TP.merged_data.txt
Number of patients = 472
Number of clustering approaches = 12
Number of selected clinical features = 14
Exclude small clusters that include fewer than K patients, K = 3

Clustering approaches

CNMF clustering

consensus non-negative matrix factorization clustering approach (Brunet et al. 2004)

Consensus hierarchical clustering

Resampling-based clustering method (Monti et al. 2003)

Survival analysis

For survival clinical features, the Kaplan-Meier survival curves of tumors with and without gene mutations were plotted and the statistical significance P values were estimated by logrank test (Bland and Altman 2004) using the 'survdiff' function in R

Fisher's exact test

For binary clinical features, two-tailed Fisher's exact tests (Fisher 1922) were used to estimate the P values using the 'fisher.test' function in R

Q value calculation

For multiple hypothesis correction, Q value is the False Discovery Rate (FDR) analogue of the P value (Benjamini and Hochberg 1995), defined as the minimum FDR at which the test may be called significant. We used the 'Benjamini and Hochberg' method of 'p.adjust' function in R to convert P values into Q values.

Download Results

In addition to the links below, the full results of the analysis summarized in this report can also be downloaded programmatically using firehose_get, or interactively from either the Broad GDAC website or TCGA Data Coordination Center Portal.

References

[1] Brunet et al., Metagenes and molecular pattern discovery using matrix factorization, PNAS 101(12):4164-9 (2004)

[2] Monti et al., Consensus Clustering: A Resampling-Based Method for Class Discovery and Visualization of Gene Expression Microarray Data, Machine Learning 52(1):91-118 (2003)

[3] Bland and Altman, Statistics notes: The logrank test, BMJ 328(7447):1073 (2004)

[4] Fisher, R.A., On the interpretation of chi-square from contingency tables, and the calculation of P, Journal of the Royal Statistical Society 85(1):87-94 (1922)

[5] Benjamini and Hochberg, Controlling the false discovery rate: a practical and powerful approach to multiple testing, Journal of the Royal Statistical Society Series B 59:289-300 (1995)

Made with Nozzle
