Mutation Analysis (MutSigCV v0.9)
Glioblastoma Multiforme (Primary solid tumor)
15 January 2014  |  analyses__2014_01_15
Maintainer Information
Citation Information
doi:10.7908/C1PV6HSP
Maintained by Dan DiCara (Broad Institute)
Cite as Broad Institute TCGA Genome Data Analysis Center (2014): Mutation Analysis (MutSigCV v0.9). Broad Institute of MIT and Harvard. doi:10.7908/C1PV6HSP
Overview
Introduction

This report serves to describe the mutational landscape and properties of a given individual set, as well as rank genes and genesets according to mutational significance. MutSigCV v0.9 was used to generate the results found in this report.

  • Working with individual set: GBM-TP

  • Number of patients in set: 283

Input

The input for this pipeline is a set of individuals with the following files associated for each:

  1. An annotated .maf file describing the mutations called for the respective individual, and their properties.

  2. A .wig file that contains information about the coverage of the sample.

Summary
Results
Target Coverage for Each Individual

The x axis represents the samples. The y axis represents the exons, one row per exon, and they are sorted by average coverage across samples. For exons with exactly the same average coverage, they are sorted next by the %GC of the exon. (The secondary sort is especially useful for the zero-coverage exons at the bottom). If the figure is unpopulated, then full coverage is assumed (e.g. MutSig CV doesn't use WIGs and assumes full coverage).

Figure 1.

Distribution of Mutation Counts, Coverage, and Mutation Rates Across Samples

Figure 2.  Patients counts and rates file used to generate this plot: GBM-TP.patients.counts_and_rates.txt

Lego Plots

The mutation spectrum is depicted in the lego plots below in which the 96 possible mutation types are subdivided into six large blocks, color-coded to reflect the base substitution type. Each large block is further subdivided into the 16 possible pairs of 5' and 3' neighbors, as listed in the 4x4 trinucleotide context legend. The height of each block corresponds to the mutation frequency for that kind of mutation (counts of mutations normalized by the base coverage in a given bin). The shape of the spectrum is a signature for dominant mutational mechanisms in different tumor types.

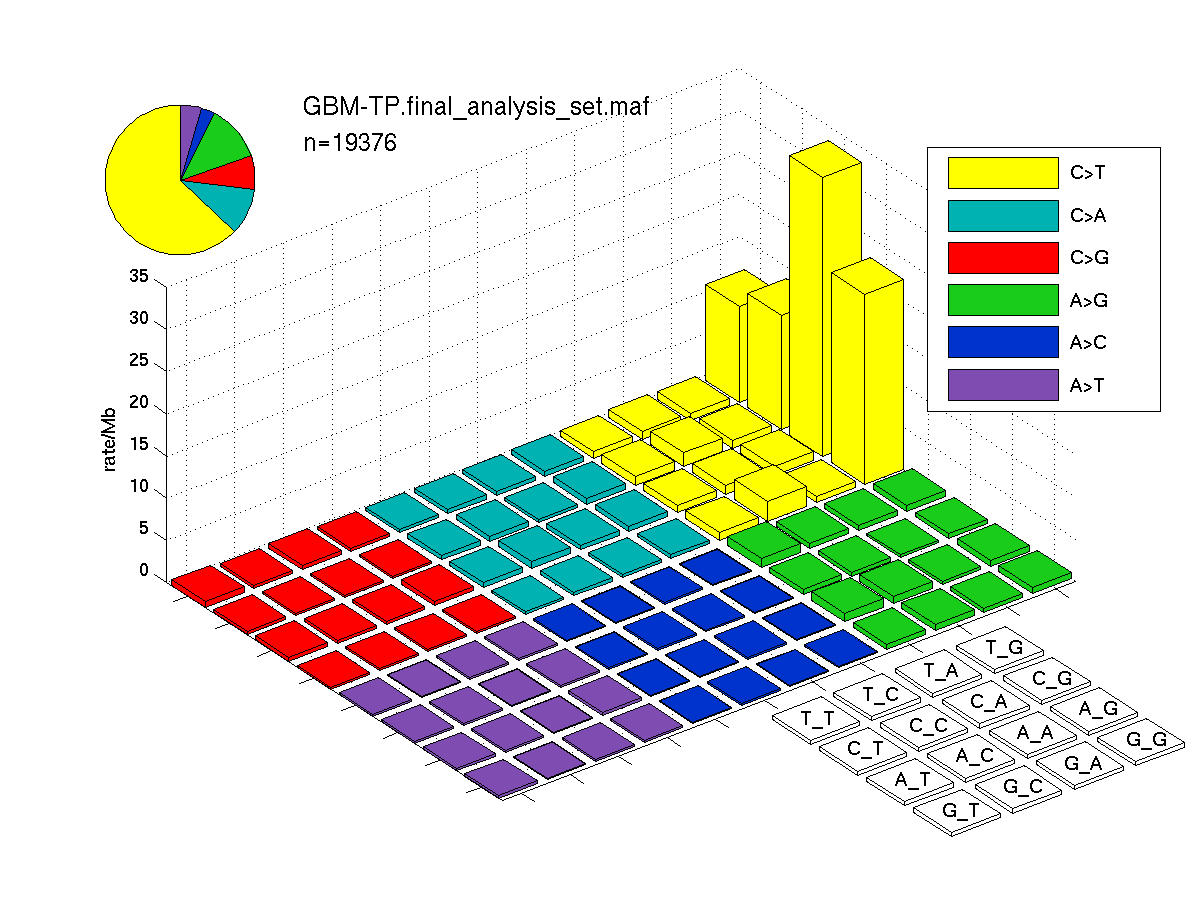

Figure 3.  Get High-res Image SNV Mutation rate lego plot for entire set. Each bin is normalized by base coverage for that bin. Colors represent the six SNV types on the upper right. The three-base context for each mutation is labeled in the 4x4 legend on the lower right. The fractional breakdown of SNV counts is shown in the pie chart on the upper left. If this figure is blank, not enough information was provided in the MAF to generate it.

Figure 4.  Get High-res Image SNV Mutation rate lego plots for 4 slices of mutation allele fraction (0<=AF<0.1, 0.1<=AF<0.25, 0.25<=AF<0.5, & 0.5<=AF) . The color code and three-base context legends are the same as the previous figure. If this figure is blank, not enough information was provided in the MAF to generate it.

CoMut Plot

Figure 5.  Get High-res Image The matrix in the center of the figure represents individual mutations in patient samples, color-coded by type of mutation, for the significantly mutated genes. The rate of synonymous and non-synonymous mutations is displayed at the top of the matrix. The barplot on the left of the matrix shows the number of mutations in each gene. The percentages represent the fraction of tumors with at least one mutation in the specified gene. The barplot to the right of the matrix displays the q-values for the most significantly mutated genes. The purple boxplots below the matrix (only displayed if required columns are present in the provided MAF) represent the distributions of allelic fractions observed in each sample. The plot at the bottom represents the base substitution distribution of individual samples, using the same categories that were used to calculate significance.

Significantly Mutated Genes

Column Descriptions:

  • nnon = number of (nonsilent) mutations in this gene across the individual set

  • npat = number of patients (individuals) with at least one nonsilent mutation

  • nsite = number of unique sites having a non-silent mutation

  • nflank = number of noncoding mutations from this gene's flanking region, across the individual set

  • nsil = number of silent mutations in this gene across the individual set

  • p = p-value (overall)

  • q = q-value, False Discovery Rate (Benjamini-Hochberg procedure)

Table 1.  Get Full Table A Ranked List of Significantly Mutated Genes. Number of significant genes found: 10. Number of genes displayed: 35. Click on a gene name to display its stick figure depicting the distribution of mutations and mutation types across the chosen gene (this feature may not be available for all significant genes).

gene Nnon Nsil Nflank nnon npat nsite nsil nflank nnei fMLE p score time q
TP53 267435 78108 0 96 79 59 1 0 4 1 6.7e-16 240 0.17 1.2e-11
PTEN 275642 66222 0 90 87 73 0 0 20 0.44 3e-15 400 0.17 2.1e-11
EGFR 871640 238286 0 92 74 44 7 0 20 1.6 3.4e-15 200 0.18 2.1e-11
PIK3R1 527512 135557 0 33 32 27 0 0 20 1.1 8.1e-15 140 0.16 3.2e-11
PIK3CA 735517 188195 0 33 30 28 0 0 20 0.83 8.7e-15 100 0.16 3.2e-11
RB1 805984 212533 0 25 24 22 1 0 20 0.81 1.5e-14 140 0.21 4.5e-11
NF1 2663596 746554 0 35 29 34 1 0 0 0.52 4.1e-08 130 0.17 0.00011
STAG2 884375 219608 0 12 12 12 0 0 20 0.72 3.4e-07 61 0.16 0.00078
IDH1 284981 73580 0 14 14 2 0 0 13 0.68 1e-06 43 0.16 0.0021
GABRA6 306489 86881 0 11 11 10 1 0 20 1 0.000017 34 0.16 0.032
CDKN2C 110653 33677 0 3 3 3 0 0 20 0.96 0.00035 20 0.17 0.59
TPTE2 362523 94239 0 8 8 6 0 0 14 0.64 0.00053 32 0.16 0.8
RPL5 206590 52921 0 7 7 7 0 0 2 0.83 0.00073 34 0.16 1
OR5AR1 202911 59147 0 7 7 7 0 0 20 1.6 0.00086 22 0.15 1
LZTR1 496948 141783 0 10 10 10 0 0 20 0.42 0.0012 31 0.19 1
LRRC55 220457 69052 0 6 6 6 1 0 20 1 0.0015 21 0.18 1
GFRA4 24338 9339 0 2 2 2 1 0 20 1.1 0.0015 11 0.12 1
QKI 251304 72165 0 5 5 5 0 0 12 0.31 0.0016 24 0.15 1
SEMA3C 511098 138387 0 11 11 11 1 0 11 1.9 0.004 32 0.16 1
FOXR2 209703 52921 0 5 5 5 1 0 20 1.3 0.0042 16 0.14 1
KRTAP20-2 42450 12735 0 3 3 3 0 0 20 2.5 0.0048 13 0.15 1
OR5P2 207722 64524 0 4 4 3 0 0 20 1.3 0.0056 16 0.14 1
MTX3 153952 44997 0 3 3 3 0 0 20 0.53 0.0065 11 0.12 1
TXNDC3 410633 99899 0 6 5 6 1 0 20 1.4 0.0068 24 0.16 1
OR8K3 202911 60562 0 7 7 7 1 0 9 2.8 0.0074 24 0.15 1
ZNF697 117445 30281 0 3 3 3 0 0 20 0 0.0077 13 0.13 1
CHD8 1445847 413746 0 9 9 9 0 0 20 0.9 0.0088 40 0.18 1
UGT2A3 354033 96220 0 6 6 6 0 0 20 1.6 0.0093 21 0.15 1
PROKR2 252719 73863 0 7 6 6 0 0 20 0.6 0.011 17 0.15 1
IL18RAP 406954 111219 0 6 6 6 1 0 14 1.1 0.011 23 0.15 1
ZPBP 215080 57166 0 5 5 4 0 0 5 0 0.012 19 0.15 1
CYP3A5 343562 95088 0 5 5 5 0 0 20 0.22 0.012 16 0.17 1
HIST1H2BE 82070 25470 0 2 2 2 0 0 20 0.6 0.012 13 0.13 1
WNT2 239418 65090 0 5 5 5 0 0 20 0.84 0.012 18 0.15 1
SLC6A14 483364 134142 0 5 5 5 0 0 14 0.81 0.013 18 0.16 1
TP53

Figure S1.  This figure depicts the distribution of mutations and mutation types across the TP53 significant gene.

PTEN

Figure S2.  This figure depicts the distribution of mutations and mutation types across the PTEN significant gene.

EGFR

Figure S3.  This figure depicts the distribution of mutations and mutation types across the EGFR significant gene.

PIK3R1

Figure S4.  This figure depicts the distribution of mutations and mutation types across the PIK3R1 significant gene.

PIK3CA

Figure S5.  This figure depicts the distribution of mutations and mutation types across the PIK3CA significant gene.

RB1

Figure S6.  This figure depicts the distribution of mutations and mutation types across the RB1 significant gene.

NF1

Figure S7.  This figure depicts the distribution of mutations and mutation types across the NF1 significant gene.

STAG2

Figure S8.  This figure depicts the distribution of mutations and mutation types across the STAG2 significant gene.

IDH1

Figure S9.  This figure depicts the distribution of mutations and mutation types across the IDH1 significant gene.

GABRA6

Figure S10.  This figure depicts the distribution of mutations and mutation types across the GABRA6 significant gene.

Methods & Data
Methods

In brief, we tabulate the number of mutations and the number of covered bases for each gene. The counts are broken down by mutation context category: four context categories that are discovered by MutSig, and one for indel and 'null' mutations, which include indels, nonsense mutations, splice-site mutations, and non-stop (read-through) mutations. For each gene, we calculate the probability of seeing the observed constellation of mutations, i.e. the product P1 x P2 x ... x Pm, or a more extreme one, given the background mutation rates calculated across the dataset. [1]

Download Results

In addition to the links below, the full results of the analysis summarized in this report can also be downloaded programmatically using firehose_get, or interactively from either the Broad GDAC website or TCGA Data Coordination Center Portal.

References
[1] TCGA, Integrated genomic analyses of ovarian carcinoma, Nature 474:609 - 615 (2011)
