Mutation Analysis (MutSig 2CV v3.1)
Uveal Melanoma (Primary solid tumor)
02 April 2015  |  analyses__2015_04_02
Maintainer Information
Citation Information
doi:10.7908/C19Z9411
Maintained by David Heiman (Broad Institute)
Cite as Broad Institute TCGA Genome Data Analysis Center (2015): Mutation Analysis (MutSig 2CV v3.1). Broad Institute of MIT and Harvard. doi:10.7908/C19Z9411
Overview
Introduction

This report serves to describe the mutational landscape and properties of a given individual set, as well as rank genes and genesets according to mutational significance. MutSig 2CV v3.1 was used to generate the results found in this report.

  • Working with individual set: UVM-TP

  • Number of patients in set: 80

Input

The input for this pipeline is a set of individuals with the following files associated for each:

  1. An annotated .maf file describing the mutations called for the respective individual, and their properties.

  2. A .wig file that contains information about the coverage of the sample.

Summary

  • MAF used for this analysis:UVM-TP.final_analysis_set.maf

  • Blacklist used for this analysis: pancan_mutation_blacklist.v14.hg19.txt

  • Significantly mutated genes (q ≤ 0.1): 8

Results
Lego Plots

The mutation spectrum is depicted in the lego plots below in which the 96 possible mutation types are subdivided into six large blocks, color-coded to reflect the base substitution type. Each large block is further subdivided into the 16 possible pairs of 5' and 3' neighbors, as listed in the 4x4 trinucleotide context legend. The height of each block corresponds to the mutation frequency for that kind of mutation (counts of mutations normalized by the base coverage in a given bin). The shape of the spectrum is a signature for dominant mutational mechanisms in different tumor types.

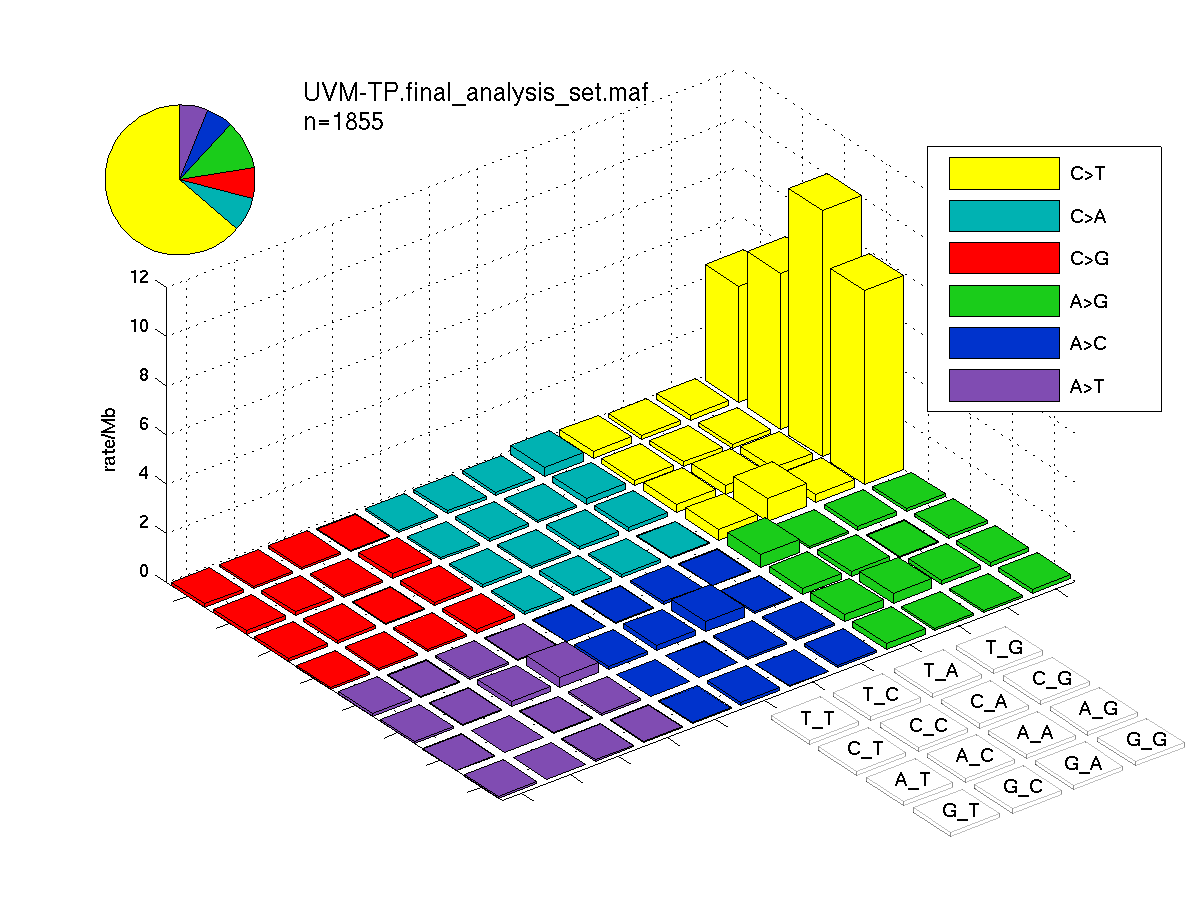

Figure 1.  Get High-res Image SNV Mutation rate lego plot for entire set. Each bin is normalized by base coverage for that bin. Colors represent the six SNV types on the upper right. The three-base context for each mutation is labeled in the 4x4 legend on the lower right. The fractional breakdown of SNV counts is shown in the pie chart on the upper left. If this figure is blank, not enough information was provided in the MAF to generate it.

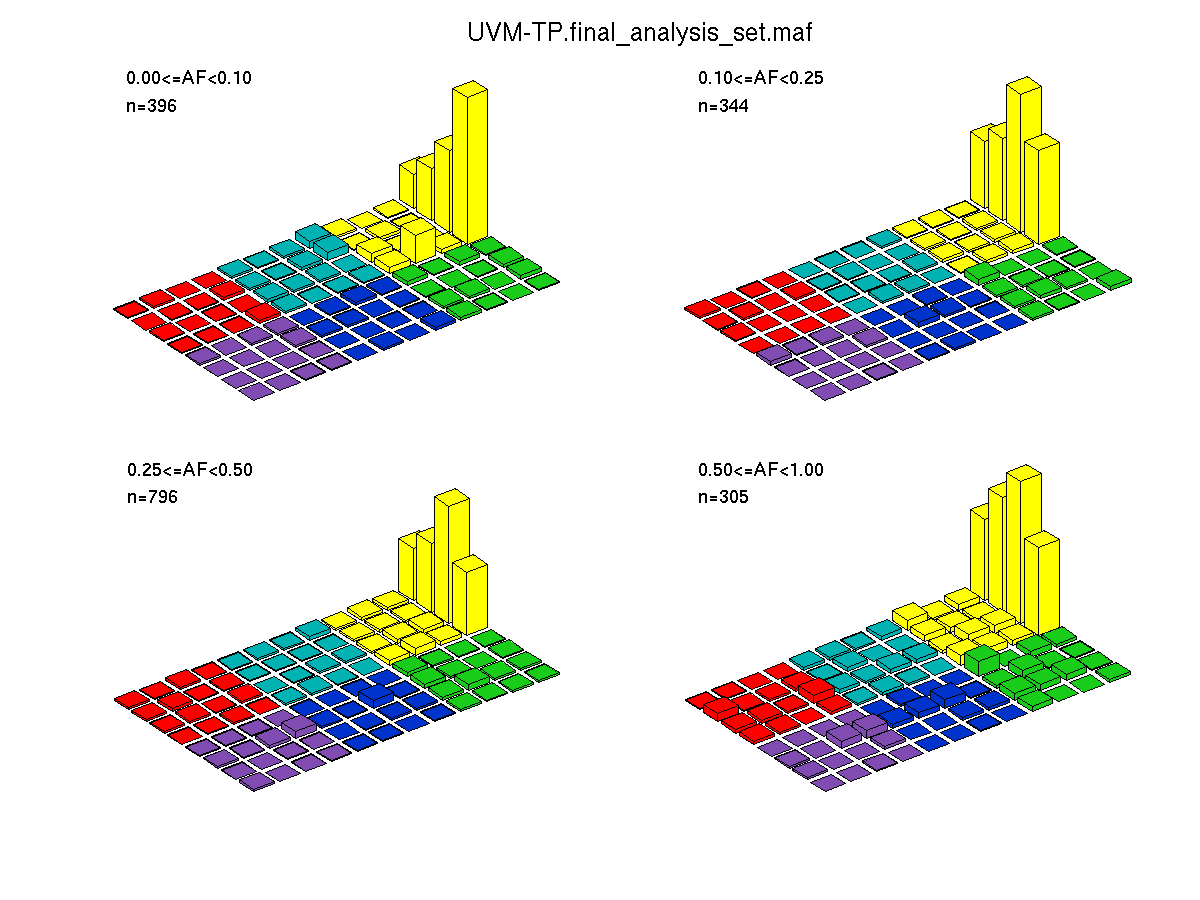

Figure 2.  Get High-res Image SNV Mutation rate lego plots for 4 slices of mutation allele fraction (0<=AF<0.1, 0.1<=AF<0.25, 0.25<=AF<0.5, & 0.5<=AF) . The color code and three-base context legends are the same as the previous figure. If this figure is blank, not enough information was provided in the MAF to generate it.

CoMut Plot

Figure 3.  Get High-res Image The matrix in the center of the figure represents individual mutations in patient samples, color-coded by type of mutation, for the significantly mutated genes. The rate of synonymous and non-synonymous mutations is displayed at the top of the matrix. The barplot on the left of the matrix shows the number of mutations in each gene. The percentages represent the fraction of tumors with at least one mutation in the specified gene. The barplot to the right of the matrix displays the q-values for the most significantly mutated genes. The purple boxplots below the matrix (only displayed if required columns are present in the provided MAF) represent the distributions of allelic fractions observed in each sample. The plot at the bottom represents the base substitution distribution of individual samples, using the same categories that were used to calculate significance.

Significantly Mutated Genes

Column Descriptions:

  • nnon = number of (nonsilent) mutations in this gene across the individual set

  • npat = number of patients (individuals) with at least one nonsilent mutation

  • nsite = number of unique sites having a non-silent mutation

  • nsil = number of silent mutations in this gene across the individual set

  • p = p-value (overall)

  • q = q-value, False Discovery Rate (Benjamini-Hochberg procedure)

Table 1.  Get Full Table A Ranked List of Significantly Mutated Genes. Number of significant genes found: 8. Number of genes displayed: 35. Click on a gene name to display its stick figure depicting the distribution of mutations and mutation types across the chosen gene (this feature may not be available for all significant genes).

rank gene longname codelen nnei nncd nsil nmis nstp nspl nind nnon npat nsite pCV pCL pFN p q
1 GNAQ guanine nucleotide binding protein (G protein), q polypeptide 1106 1000 0 0 40 1 0 0 41 40 4 1.1e-15 1e-05 0.0014 1e-16 5.1e-13
2 GNA11 guanine nucleotide binding protein (G protein), alpha 11 (Gq class) 1104 466 0 0 36 0 0 0 36 36 3 1.8e-15 1e-05 0.0029 1e-16 5.1e-13
3 EIF1AX eukaryotic translation initiation factor 1A, X-linked 459 179 0 0 7 0 2 1 10 10 6 1e-16 1e-05 0.01 1e-16 5.1e-13
4 SF3B1 splicing factor 3b, subunit 1, 155kDa 4035 20 0 0 18 0 0 0 18 18 5 1.7e-13 1e-05 0.93 1.1e-16 5.1e-13
5 BAP1 BRCA1 associated protein-1 (ubiquitin carboxy-terminal hydrolase) 2254 872 0 0 4 4 0 8 16 16 16 1e-16 1 0.047 3.3e-16 1.2e-12
6 PRMT8 protein arginine methyltransferase 8 1221 33 0 0 5 0 0 0 5 5 1 4.8e-07 1e-05 1 1.3e-10 4e-07
7 CYSLTR2 cysteinyl leukotriene receptor 2 1043 1000 0 0 3 0 0 0 3 3 1 0.000026 0.001 0.0046 4.7e-07 0.0012
8 MAPKAPK5 mitogen-activated protein kinase-activated protein kinase 5 1474 89 0 0 0 0 0 2 2 2 2 3e-05 1 0.027 0.000027 0.063
9 TMEM216 transmembrane protein 216 467 74 0 0 0 0 2 0 2 2 1 0.00019 0.044 1 0.00012 0.24
10 SELE selectin E (endothelial adhesion molecule 1) 1885 603 0 0 2 0 0 0 2 2 2 0.00041 1 0.024 0.00013 0.24
11 PLCB2 phospholipase C, beta 2 3682 116 0 0 1 0 1 1 3 3 3 0.000017 1 0.47 0.0002 0.33
12 SPAG5 sperm associated antigen 5 3676 44 0 0 0 1 1 0 2 2 2 0.000042 1 0.4 0.00031 0.47
13 PLCB4 phospholipase C, beta 4 3769 87 0 0 3 0 0 0 3 2 2 0.035 0.001 0.043 0.00039 0.55
14 CSNK1A1L casein kinase 1, alpha 1-like 1014 287 0 0 2 0 0 0 2 2 2 0.000042 1 0.5 0.00046 0.61
15 EIF1B eukaryotic translation initiation factor 1B 354 54 0 0 1 0 0 1 2 2 2 0.00013 1 0.78 0.0013 1
16 DDX51 DEAD (Asp-Glu-Ala-Asp) box polypeptide 51 2062 57 0 0 0 0 1 0 1 1 1 0.0016 NaN NaN 0.0016 1
17 SOX3 SRY (sex determining region Y)-box 3 1341 5 0 0 0 0 0 1 1 1 1 0.002 NaN NaN 0.002 1
18 SNRPA1 small nuclear ribonucleoprotein polypeptide A' 802 58 0 0 0 0 0 1 1 1 1 0.002 NaN NaN 0.002 1
19 TPCN1 two pore segment channel 1 2779 49 0 0 1 1 0 0 2 2 2 0.00022 1 0.98 0.0021 1
20 GLI2 GLI-Kruppel family member GLI2 4811 32 0 0 0 1 0 0 1 1 1 0.0022 NaN NaN 0.0022 1
21 LILRB5 leukocyte immunoglobulin-like receptor, subfamily B (with TM and ITIM domains), member 5 1824 637 0 0 2 0 0 0 2 2 1 0.0025 NaN NaN 0.0025 1
22 NRK Nik related kinase 4861 27 0 0 0 0 0 2 2 2 2 0.00078 1 0.31 0.0027 1
23 PITPNM2 phosphatidylinositol transfer protein, membrane-associated 2 4146 86 0 0 2 0 0 0 2 2 2 0.0027 NaN NaN 0.0027 1
24 TMEM2 transmembrane protein 2 4244 120 0 0 2 0 0 0 2 2 2 0.00032 1 0.79 0.0029 1
25 WISP1 WNT1 inducible signaling pathway protein 1 1124 86 0 0 2 0 0 0 2 2 2 0.00086 1 0.28 0.003 1
26 MAOB monoamine oxidase B 1619 111 0 0 1 0 1 0 2 2 2 0.00043 1 0.65 0.0038 1
27 MCRS1 microspherule protein 1 1492 88 0 0 0 0 0 1 1 1 1 0.0044 NaN NaN 0.0044 1
28 KDM3B lysine (K)-specific demethylase 3B 5378 63 0 0 0 0 1 0 1 1 1 0.0045 NaN NaN 0.0045 1
29 NFE2L2 nuclear factor (erythroid-derived 2)-like 2 1834 25 0 0 0 1 0 0 1 1 1 0.0047 NaN NaN 0.0047 1
30 MYOF myoferlin 6398 209 0 1 2 1 0 0 3 3 3 0.00058 1 0.99 0.0049 1
31 SRPX sushi-repeat-containing protein, X-linked 1431 133 0 0 0 0 0 1 1 1 1 0.005 NaN NaN 0.005 1
32 EGF epidermal growth factor (beta-urogastrone) 3716 66 0 0 0 0 1 0 1 1 1 0.005 NaN NaN 0.005 1
33 C15orf60 chromosome 15 open reading frame 60 827 45 0 0 0 1 0 0 1 1 1 0.0051 NaN NaN 0.0051 1
34 SEL1L3 sel-1 suppressor of lin-12-like 3 (C. elegans) 3491 95 0 0 2 0 0 0 2 2 2 0.00062 1 0.75 0.0052 1
35 GFRA4 GDNF family receptor alpha 4 916 52 0 0 0 0 0 1 1 1 1 0.0052 NaN NaN 0.0052 1
GNAQ

Figure S1.  This figure depicts the distribution of mutations and mutation types across the GNAQ significant gene.

GNA11

Figure S2.  This figure depicts the distribution of mutations and mutation types across the GNA11 significant gene.

EIF1AX

Figure S3.  This figure depicts the distribution of mutations and mutation types across the EIF1AX significant gene.

SF3B1

Figure S4.  This figure depicts the distribution of mutations and mutation types across the SF3B1 significant gene.

BAP1

Figure S5.  This figure depicts the distribution of mutations and mutation types across the BAP1 significant gene.

PRMT8

Figure S6.  This figure depicts the distribution of mutations and mutation types across the PRMT8 significant gene.

CYSLTR2

Figure S7.  This figure depicts the distribution of mutations and mutation types across the CYSLTR2 significant gene.

MAPKAPK5

Figure S8.  This figure depicts the distribution of mutations and mutation types across the MAPKAPK5 significant gene.

Methods & Data
Methods

In brief, we tabulate the number of mutations and the number of covered bases for each gene. The counts are broken down by mutation context category: four context categories that are discovered by MutSig, and one for indel and 'null' mutations, which include indels, nonsense mutations, splice-site mutations, and non-stop (read-through) mutations. For each gene, we calculate the probability of seeing the observed constellation of mutations, i.e. the product P1 x P2 x ... x Pm, or a more extreme one, given the background mutation rates calculated across the dataset. [1]

Download Results

In addition to the links below, the full results of the analysis summarized in this report can also be downloaded programmatically using firehose_get, or interactively from either the Broad GDAC website or TCGA Data Coordination Center Portal.

References
[1] TCGA, Integrated genomic analyses of ovarian carcinoma, Nature 474:609 - 615 (2011)
